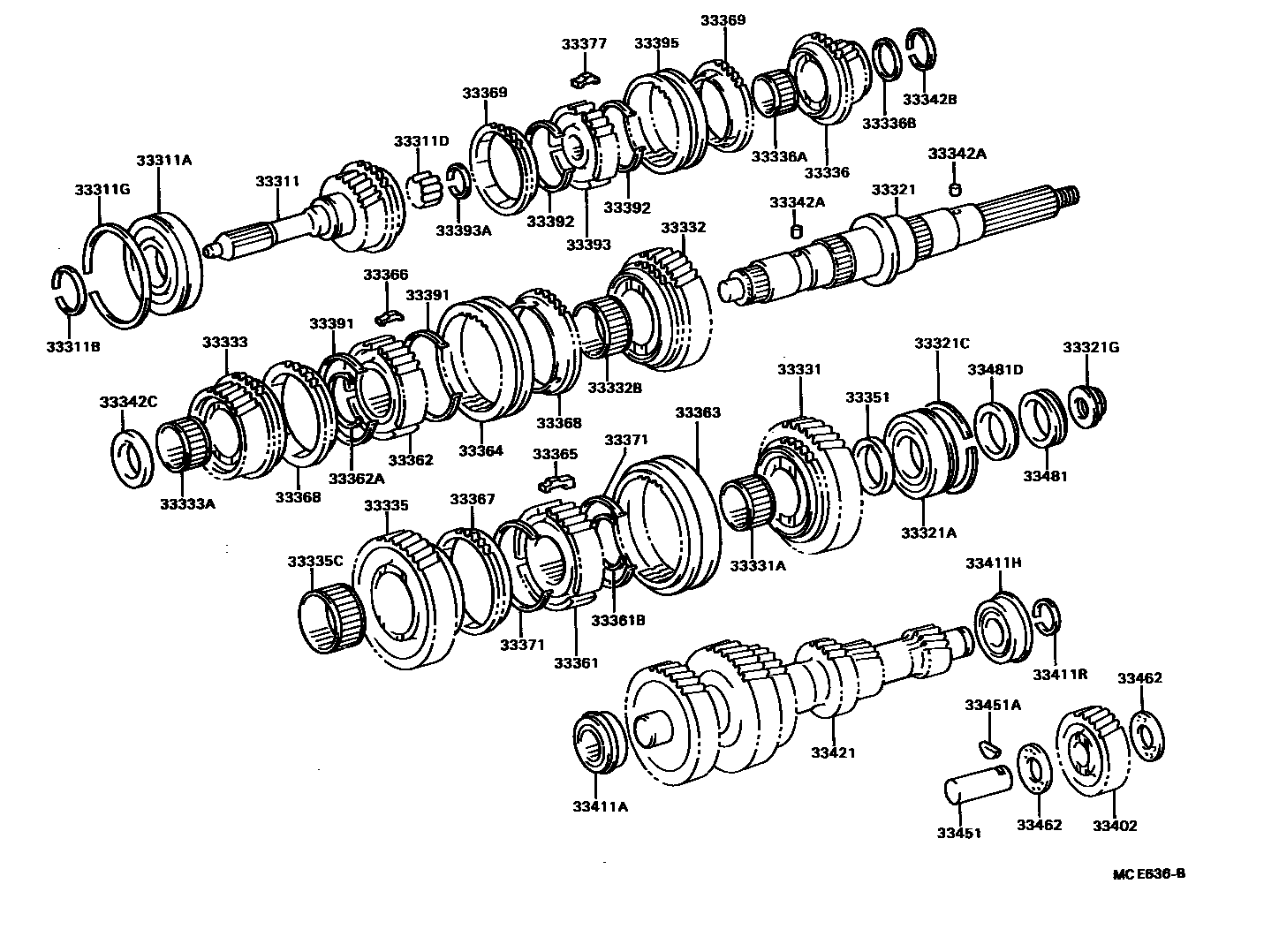

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
sub33301-36070
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.50-2.55,MARK 2
T=2.55-2.60,MARK 3
T=2.60-2.65,MARK 4
T=2.65-2.70,MARK 5
T=2.70-2.75,MARK 6
T=2.75-2.80,MARK 7
33311DBEARING, INPUT SHAFT
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.36-2.46
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33331GEAR, REVERSE
sub33031-36020
33331ABEARING (FOR REVERSE GEAR)
sub90364-47007
33332GEAR, 2ND
sub33033-36031
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
sub90364-54003
33333GEAR, 3RD
sub33034-36011
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
sub90364-47007
33335GEAR, 1ST
sub33032-36031
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
sub90364-58005
33336GEAR, 5TH
sub33036-36021
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
sub90364-37012
33336BSPACER (FOR 5TH GEAR BEARING)
33342APIN, STRAIGHT (FOR GEAR THRUST WASHER)
33342BRING, SHAFT SNAP (FOR GEAR THRUST WASHER)
T=1.90-1.95
T=1.95-2.00
T=2.00-2.05
T=2.05-2.10
T=2.10-2.15
33342CWASHER, 3RD GEAR THRUST
33351WASHER, REVERSE GEAR THRUST
sub33351-36011
33361HUB, TRANSMISSION CLUTCH, NO.1
sub33361-36021
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=1.90-1.95,MARK=2
T=1.95-2.00,MARK=3
T=2.00-2.05,MARK=4
T=2.05-2.10,MARK=5
T=2.10-2.15,MARK=6
T=2.15-2.20,MARK=7
33362HUB, TRANSMISSION CLUTCH, NO.2
sub33362-36031
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=1.90-1.95,MARK=2
T=1.95-2.00,MARK=3
T=2.00-2.05,MARK=4
T=2.05-2.10,MARK=5
T=2.10-2.15,MARK=6
T=2.15-2.20,MARK=7
33363SLEEVE, TRANSMISSION HUB, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33377KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=1.90-1.95,MARK 4
T=1.95-2.00,MARK 5
T=2.00-2.05,MARK 6
T=2.05-2.10,MARK 7
T=2.10-2.15,MARK 8
T=2.15-2.20,MARK 9
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
sub90363-30049
33411RRING, SNAP, COUNTER GEAR REAR BEARING
T=1.95-2.00,MARK 0
T=2.00-2.05,MARK 1
T=2.05-2.10,MARK 2
T=2.10-2.15,MARK 3
T=2.15-2.20,MARK 4
T=2.20-2.25,MARK 5
33421GEAR, COUNTER
sub33421-36131
33451SHAFT, REVERSE IDLER GEAR
sub33451-36050
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33462WASHER, REVERSE IDLER THRUST
sub33462-60020
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=6,MARK 6X20-22
N=6,MARK 6X23-25
N=5,MARK 5X22-24
N=5,MARK 5X22-24,HEAVY DUTY SPEC
N=5,MARK 5X22-24,*AXC=Q424
33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)
52 parts on this diagram · 1 diagram in section
