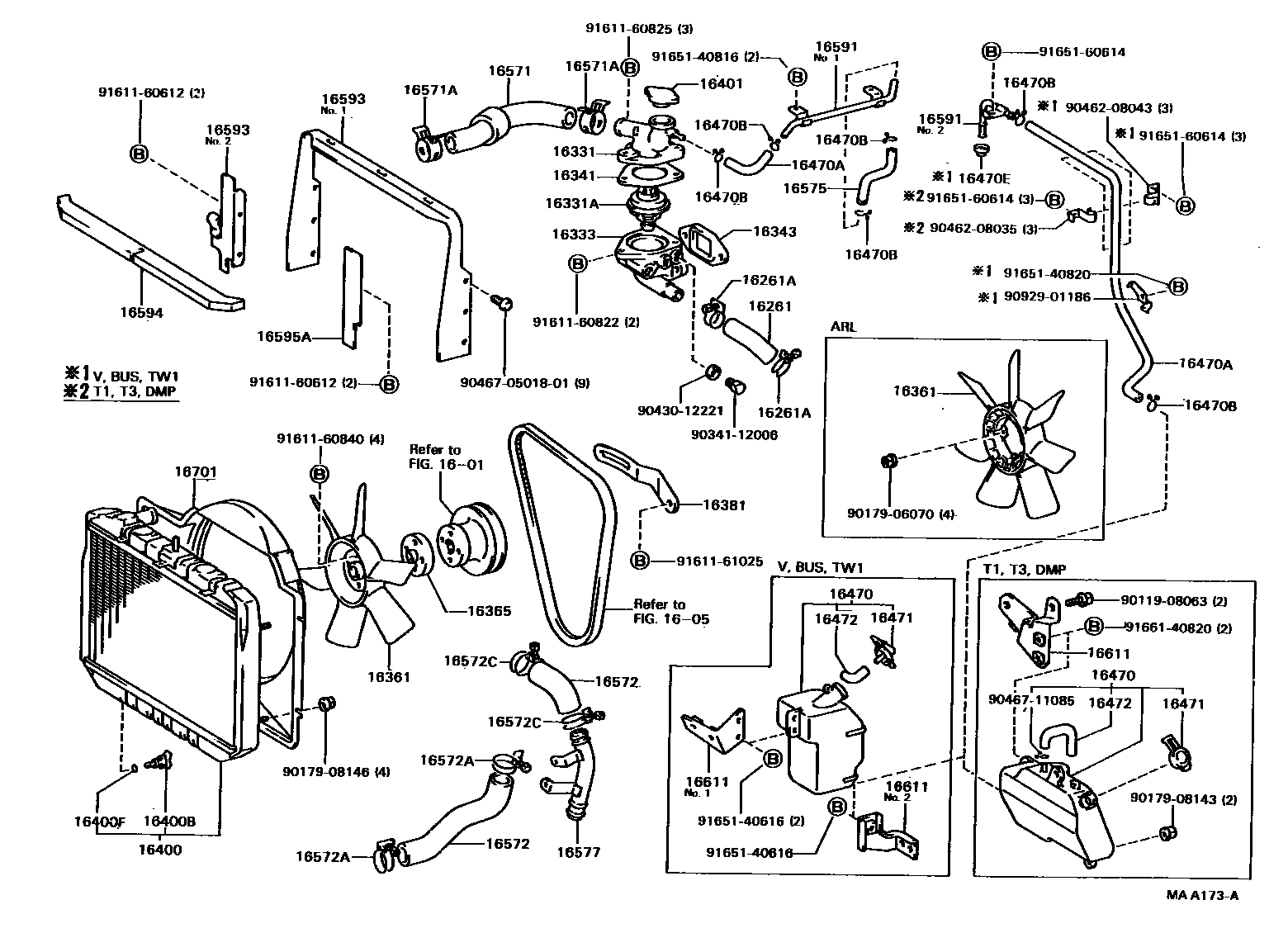

RADIATOR & WATER OUTLET

0001 1 0002 1

1601

1605

16261HOSE, WATER BY-PASS

main16261-56012iB,11B,13B..BU6#,70,8#198708-198808

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90044-67103iB,11B,13B..BU6#,70,8#198708-198808

16331OUTLET, WATER

main16331-56020i11B,13B..BU85,86,93198708-198808

main16331-56040iB,11B,13B..BU6#,70,80,81,82198708-198808

16331ATHERMOSTAT

main90916-03066iB,11B,13B..BU6#,70,8#198708-198808

*WAX 82-95,*WAX 82-95

sub90916-03077

main90919-03059iB..BU80..LHD..IV3198708-198808

*WAX 88-100

16333HOUSING, WATER OUTLET

main16333-56060iB,11B,13B..BU6#,70,8#,93198708-198808

sub16333-58080

sub16341-56030

sub16343-56023

sub90341-12006

sub90430-12221

sub92122-60832

sub94185-60800

16341GASKET, WATER OUTLET

main16341-56020iB,11B,13B..BU6#,70,8#198708-198808

sub16341-56021

16343GASKET, WATER OUTLET HOUSING

main16343-56020iB,11B,13B..BU6#,70,8#,93198708-198808

sub16343-56022

16361FAN

main16361-38010i13B..BU85..ARL198708-198808

main16361-56030i11B,13B..BU85,86..GEN198708-198808

main16361-56040i11B..BU61,65..GEN..(CBU,IV3);B,11B,13B..BU60,62,70,80,81..5F198708-198808

main16361-56070i11B..BU61..IV1;11B,13B..BU61,62,65,82..ARL,GHD198708-198808

THAILAND SPEC

main16361-56070i11B..BU61..IV1;11B,13B..BU61,62,65,82..ARL,GHD198708-198808

SWITZERLAND SPEC

16365SPACER, FAN

main16365-56021i11B,13B..BU65,85..GEN;11B..BU61..GEN..(CBU,IV3);B,11B,13B..BU60,62,70,80,81,86..5F198708-198808

16381BAR, FAN BELT ADJUSTING

main16381-56030iB,11B,13B..BU6#,70,8#198708-198808

16400RADIATOR ASSY

main16400-56161i11B..BU61..ARL198708-198808

TROPICAL AREA

main16400-58090i11B,13B..BU61,62,81..(GEN,GHD,SA)..(CBU,IV3)198708-198808

main16400-58102i13B..BU62..ARL198708-198808

main16400-58111i11B,13B..BU85,86,93198708-198808

sub16400-58143

16400BPLUG, RADIATOR DRAIN COCK

main16417-24051i11B,13B..BU85,86,93198708-198808

main16417-58090iB,11B,13B..BU6#,70,80,81,82198708-198808

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24051iB,11B,13B..BU6#,70,8#,93198708-198808

16401CAP SUB-ASSY, RADIATOR

main16401-71010iB,11B,13B..BU6#,70,8#,93198708-198808

sub16401-54750

16470TANK ASSY, RADIATOR RESERVE

main16470-56121iB..BU60..T3;B,11B,13B..BU61,62,65,80,81,82198708-198808

main16470-56130iB..BU70;B..BU60..TW1198708-198808

main16470-58020i11B,13B..BU85,86,93198708-198808

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12038iB..BU60..T3;B,11B,13B..BU61,62,65,80,81,82198708-198808

L=900

main90445-12143i11B,13B..BU85,86,93198708-198808

L=620

main90447-12087iB..BU70;B..BU60..TW1198708-198808

L=945

main90910-05174iB,11B,13B..BU6#,70,80,81,82198708-198808

L=420

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085iB,11B,13B..BU6#,8#,93198708-198808

16470EGROMMET, RADIATOR RESERVE TANK HOSE

main90480-16015iB..BU70;B..BU60..TW1198708-198808

16471CAP SUB-ASSY, RESERVE TANK

main16405-56052iB..BU60..T3;B,11B,13B..BU61,62,65,80,81,82198708-198808

main16405-56060iB..BU70;B..BU60..TW1198708-198808

main16405-56070i11B,13B..BU85,86,93198708-198808

16472HOSE, BREATHER

main16472-56130iB..BU70;B..BU60..TW1198708-198808

main16472-58010i11B,13B..BU85,86,93198708-198808

16571HOSE, RADIATOR, INLET

main16571-56040iB,11B,13B..BU6#,70,80,81,82198708-198808

main16571-58030i11B,13B..BU85,86,93198708-198808

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main96111-10490iB,11B,13B..BU6#,70,8#,93198708-198808

16572HOSE, RADIATOR, OUTLET

main16572-56081iB,11B,13B..BU6#,70,80,81,82198708-198808

WATER PUMP SIDE

main16572-58031i11B,13B..BU85,86,93198708-198808

main16573-56040iB,11B,13B..BU6#,70,80,81,82198708-198808

RADIATOR SIDE

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main96111-10510i11B,13B..BU85,86,93198708-198808

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main96111-10570iB,11B,13B..BU6#,70,80,81,82198708-198808

WATER PUMP SIDE

16575HOSE, RADIATOR, NO.5

main16575-56010iB..BU60..T3;B,11B,13B..BU61,62,65,80,81,82198708-198808

main16575-56020iB..BU70;B..BU60..TW1198708-198808

16577PIPE, RADIATOR, NO.7

main16577-56040iB,11B,13B..BU6#,70,80,81,82198708-198808

16591PIPE, RADIATOR

main16591-56010iB,11B,13B..BU6#,70,80,81,82198708-198808

NO.1

main16591-56040iB..BU60..T3;B,11B,13B..BU61,62,65,80,81,82198708-198808

NO.2

main16591-56060iB..BU70;B..BU60..TW1198708-198808

NO.2

16593GUIDE, RADIATOR AIR, NO.1

main16593-56030iB,11B,13B..BU6#,70,80,81,82198708-198808

main16593-58050i11B,13B..BU85,86,93198708-198808

16594GUIDE, RADIATOR AIR, NO.2

main16594-56020iB..BU70,80;B,13B..BU60,62..TS198708-198808

16595AGUIDE, RADIATOR AIR, NO.1 LH

main16595-56020iB..BU70,80;B,13B..BU60,62..TS198708-198808

16611BRACKET, RADIATOR RESERVE TANK

main16611-56050iB..BU60..T3;B,11B,13B..BU61,62,65,80,81,82198708-198808

main16611-56080iB..BU70;B..BU60..TW1198708-198808

NO.1

main16611-56090iB..BU70;B..BU60..TW1198708-198808

NO.2

16701SHROUD SUB-ASSY, FAN

main16701-56281i11B..BU61..IV1;11B..BU65..GEN;B,13B..BU60,70,80,82198708-198808

TROPICAL AREA

main16701-56310i11B,13B..BU61,62,81..(GEN,GHD,SA)..(CBU,IV3)198708-198808

main16701-56321i11B..BU61,65..ARL198708-198808

main16701-58030i13B..BU62..ARL198708-198808

main16701-58040i11B,13B..BU85,86,93198708-198808

9011908063

main90119-08063

9017906070

main90179-06070

9017908143

main90179-08143

9017908146

main90179-08146

9034112006

main90341-12006

9043012221

main90430-12221

9046208035

main90462-08035

9046208043

main90462-08043

904670501801

main90467-0501801

9046711085

main90467-11085

9092901186

main90929-01186

9161160612

main91611-60612

9161160822

main91611-60822

9161160825

main91611-60825

9161160840

main91611-60840

9161161025

main91611-61025

9165140616

main91651-40616

9165140816

main91651-40816

9165140820

main91651-40820

9165160614

main91651-60614

9166140820

main91661-40820

56 parts on this diagram · 2 diagrams in section
