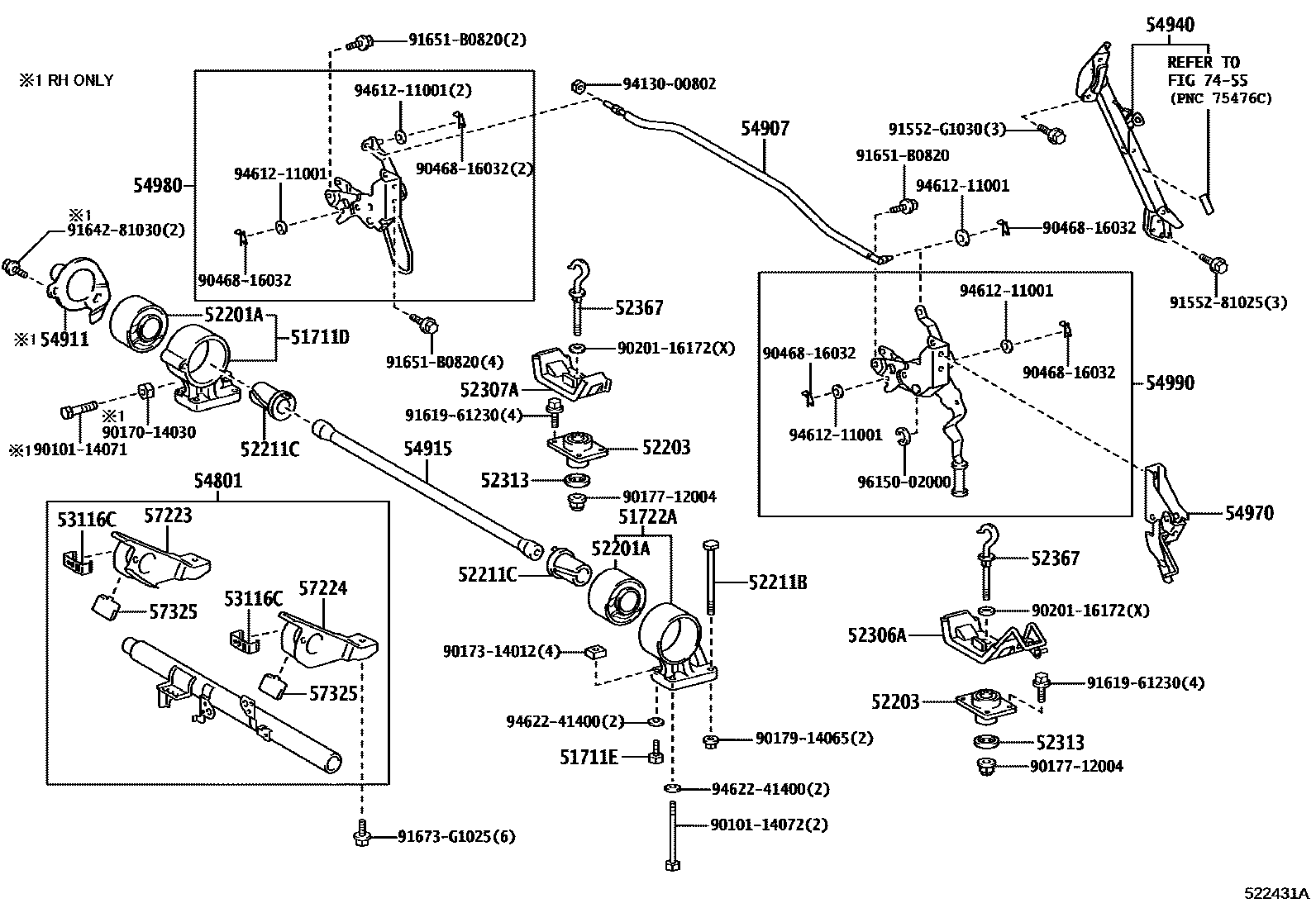

CAB MOUNTING & BODY MOUNTING

51711DBRACKET, CAB FRONT MOUNTING

main51701-37300iXZU600..GEN201911

51711EBOLT, HEXAGON(FOR CAB MOUNTING BARACKET)

main90101-14075×2iXZU600..GEN201911

51722ABRACKET SUB-ASSY, CAB FRONT MOUNTING, LH

main51702-37340iXZU600..GEN201911

52201ACUSHION SUB-ASSY, CAB FRONT MOUNTING

main52201-37100×2iXZU600..GEN201911

52203CUSHION SUB-ASSY, REAR FRAME

main52203-37060×2iXZU600..GCC;WU600,650,XZU650201107-202005

52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)

main90109-14013×2iXZU600..GCC;WU600,650,XZU650201107-202005

52211CSPACER(FOR BODY MOUNTING NO.1 CUSHION)

main52211-37010×2iXZU600..GCC;WU600,650,XZU650201107-202005

52306ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1

main52306-37023iXZU600..GCC;WU600,650,XZU650201107-202005

main52306-37050iWU600,650..GEN..IV3201107-202005

CKD PACKAGE

52307ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2

main52307-37010iXZU600..GCC;WU600,650,XZU650201107-202005

52313STOPPER, CAB REAR MOUNTING REBOUND

main52313-37040×2iXZU600..GCC;WU600,650,XZU650201107-202005

52367HOOK, CAB REAR MOUNTING

main52367-37060×2iXZU600..GCC;WU600,650,XZU650201107-202005

53116CBRACKET, RADIATOR GRILLE, NO.2

main53116-37030×2iXZU600..GCC;WU600,650,XZU650201107-202005

54801TUBE SUB-ASSY, TILT CAB, NO.1

main54801-37250iXZU600..GCC;WU600,650,XZU650201107-202005

main54801-37290iXZU600..GEN201911

54907PIPE SUB-ASSY, TILT CAB LOCK CONNECTING

main54907-37050iXZU600..GCC;WU600,650,XZU650201107-202005

54911ARM, TILT CAB SPRING SUPPORT, NO.1

main54911-37040iWU600,650,XZU600,650201107-201904

main54911-37170iXZU600..GCC;WU600,650,XZU650201905-202005

54915SPRING, TILT CAB, NO.1

main54915-37100iWU600,650,XZU600,650201107-201904

main54915-37260iXZU600..GCC;WU600,650,XZU650201905-202005

54940STAY ASSY, TILT CAB

main54940-37300iWU600,650201107-201204

main54940-37301iWU600,650,XZU600,650201205-201905

main54940-37330iWU600,650,XZU600,650201906-201910

main54940-37331iXZU600..GCC;WU600,650,XZU650201911-202005

54970LATCH ASSY, TILT CAB STOPPER

main54970-37014iXZU600..GCC;WU600,650,XZU650201107-202005

54980LOCK ASSY, TILT CAB MOUNTING, RH

main54980-37011iXZU600..GCC;WU600,650,XZU650201107-202005

main54980-37012iXZU600202103

54990LOCK ASSY, TILT CAB MOUNTING, LH

main54990-37023iXZU600..GCC;WU600,650,XZU650201107-202005

main54990-37024iXZU600202103

57223BRACKET, FRONT MOUNTING, RH

main57223-37011iXZU600..GCC;WU600,650,XZU650201107-202005

57224BRACKET, FRONT MOUNTING, LH

main57224-37011iXZU600..GCC;WU600,650,XZU650201107-202005

57325REINFORCEMENT, FRONT MOUNTING

main57325-37010×2iXZU600..GCC;WU600,650,XZU650201107-202005

7455

9010114071

main90101-14071

9010114072

main90101-14072

9017014030

main90170-14030

9017314012

main90173-14012

9017712004

main90177-12004

9017914065

main90179-14065

9020116172

main90201-16172

9046816032

main90468-16032

9155281025

main91552-81025

91552G1030

main91552-G1030

9161961230

main91619-61230

9164281030

main91642-81030

91651B0820

main91651-B0820

91673G1025

main91673-G1025

9413000802

main94130-00802

9461211001

main94612-11001

9462241400

main94622-41400

9615002000

main96150-02000

42 parts on this diagram · 1 diagram in section
