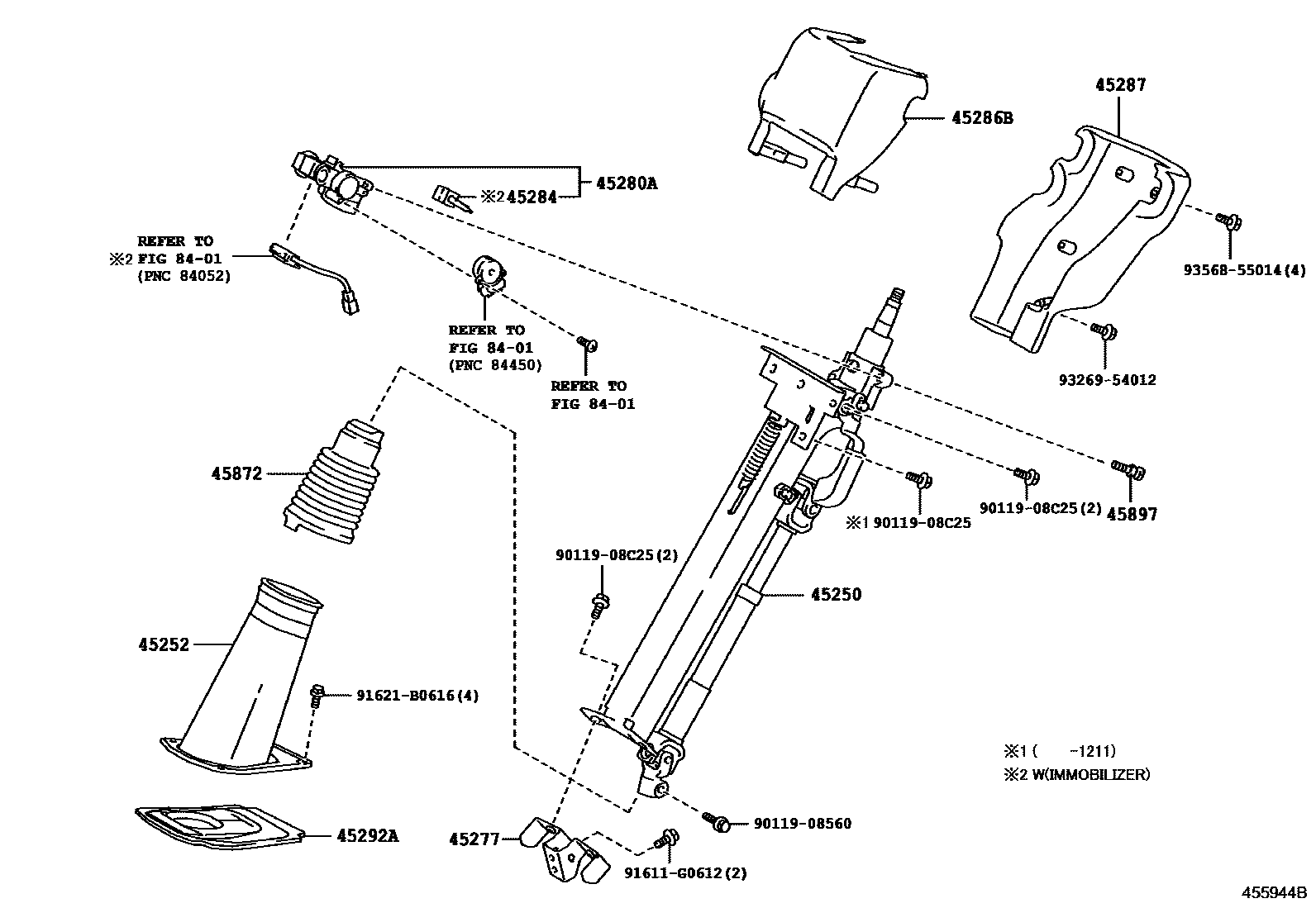

STEERING COLUMN & SHAFT

0001 1 0002 1

45250COLUMN ASSY, STEERING

main45250-37E50-C0iWU600,650201107-201210

BLACK,TRIM1#

main45250-37E51-C0iWU600,650201211-201405

BLACK,TRIM1#

main45250-37E52-C0iXZU600..GCC;WU600,650,XZU650201406-202005

BLACK,TRIM1#

45252TUBE, STEERING COLUMN, LOWER

main45252-37070-C0iXZU600..GCC;WU600,650,XZU650201107-202005

BLACK,TRIM1#

45277PLATE, STEERING COLUMN UPPER ATTACHMENT

main45277-37040iXZU600..GCC;WU600,650,XZU650201107-202005

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-37140iWU600,650201107-201505

main45280-E0010iXZU600..GCC;WU600,650,XZU650201505-202005

45284SHAFT, STEERING LOCK CAM

main45284-37020iWU600,650201107-201505

45286BCOVER, STEERING COLUMN, UPR

main45286-37130-C0iXZU600..GCC;WU600,650,XZU650201107-202005

BLACK,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-37120-C0iXZU600..GCC;WU600,650,XZU650201107-202005

BLACK,TRIM1#

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-37010iXZU600..GCC;WU600,650,XZU650201107-202005

45872COVER, STEERING COLUMN TUBE

main45872-37020iXZU600..GCC;WU600,650,XZU650201107-202005

45897BOLT, STEERING LOCK SET

main45897-E0020×2iXZU600..GCC;WU600,650,XZU650201107-202005

8401

9011908560

main90119-08560

9011908C25

main90119-08C25

91611G0612

main91611-G0612

91621B0616

main91621-B0616

9326954012

main93269-54012

9356855014

main93568-55014

17 parts on this diagram · 2 diagrams in section
