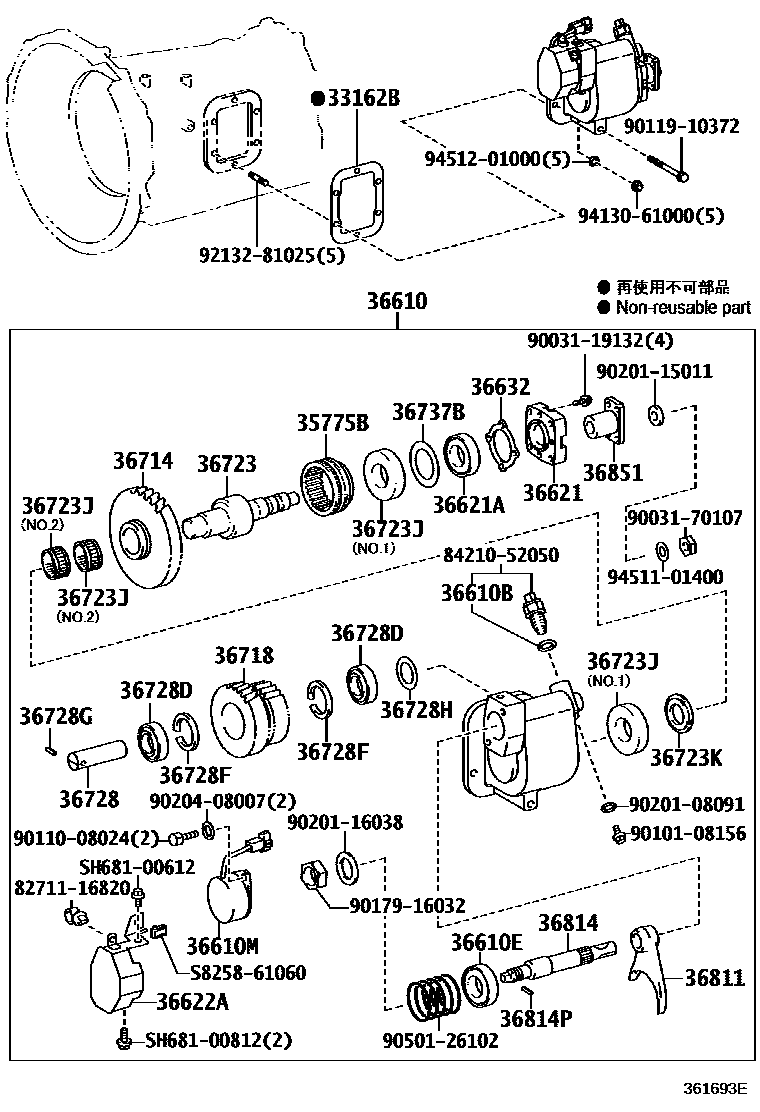

POWER TAKE-OFF CASE & GEAR

0001 1ELECTRIC TYPE 25KG 0002 1VACUUM TYPE 15KG 0003 1VACUUM TYPE 15KG 0004 1ELECTRIC TYPE 25KG

33162BGASKET, POWER TAKE-OFF COVER

35775BSLEEVE, OUTPUT SHAFT

36610POWER TAKE-OFF ASSY

main90430-18008

main90311-20010

main36800-37010

main36800-37020

main36800-37021

main36610-37151

main36610-37410

main36610-37411

main36610-37412

main36610-37601

main36610-37602

main36610-37603

36610BGASKET, SEAT (FOR POWER TAKE-OFF)

36610ESEAL, OIL (FOR POWER TAKE-OFF)

36610MSOLENOID ASSY, POWER TAKE-OFF

36621RETAINER, POWER TAKE-OFF BEARING

main36621-37071

main36621-37080

main90311-25110

main36621-93200

36621ASEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)

36622ACOVER, POWER TAKE-OFF

36632GASKET, POWER TAKE-OFF JOINT RETAINER

main36632-37030

36714GEAR, POWER TAKE-OFF OUTPUT

main36714-93108

main36714-37171

main36714-37241

36718GEAR, POWER TAKE-OFF IDLER

main36718-37110

main36718-93112

main36718-37161

36723SHAFT, POWER TAKE-OFF OUTPUT, NO.1

main90366-22001

main90389-25007

main90387-25009

main90280-07011

main90364-28020

main36723-93107

main36723-37110

main36723-37140

main97100-06205

36723JBEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)

36723KCOLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT)

36728SHAFT, POWER TAKE-OFF IDLER

main90366-22001

main90564-25001

main90564-25002

main90254-04002

main90564-25003

main90564-25004

main90366-25011

main36728-37020

main36728-37060

main36728-93107

main90521-56108

36728DBEARING (FOR POWER TAKE-OFF IDLER SHAFT)

36728FRING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)

36728GPIN (FOR POWER TAKE-OFF IDLER SHAFT)

36728HSHIM (FOR POWER TAKE-OFF IDLER SHAFT)

36737BSHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)

36811FORK, POWR TAKE-OFF SHIFT, NO.1

main36811-37030

main36811-93104

36814SHAFT, POWR TAKE-OFF FORK, NO.1

main90254-06006

main90254-05017

main90254-05022

main36814-37080

main36814-37100

main36814-93104

36814PPIN (FOR POWER TAKE-OFF SHIFT SHAFT)

36851RETAINER, POWER TAKE-OFF JOINT

main36851-37010

main36851-37030

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16820

8421052050SWITCH ASSY, BACK-UP LAMP

main84210-52050

9003119132

main90031-19132

9003170107

main90031-70107

9010108156

main90101-08156

9011008024

main90110-08024

9011910372

main90119-10372

9017916032

main90179-16032

9020108091

main90201-08091

9020115011

main90201-15011

9020116038

main90201-16038

9020408007

main90204-08007

9050126102

main90501-26102

9213281025

main92132-81025

9413061000

main94130-61000

9451101400

main94511-01400

9451201000

main94512-01000

S825861060

mainS8258-61060

SH68100612

mainSH681-00612

SH68100812

mainSH681-00812

45 parts on this diagram · 4 diagrams in section
