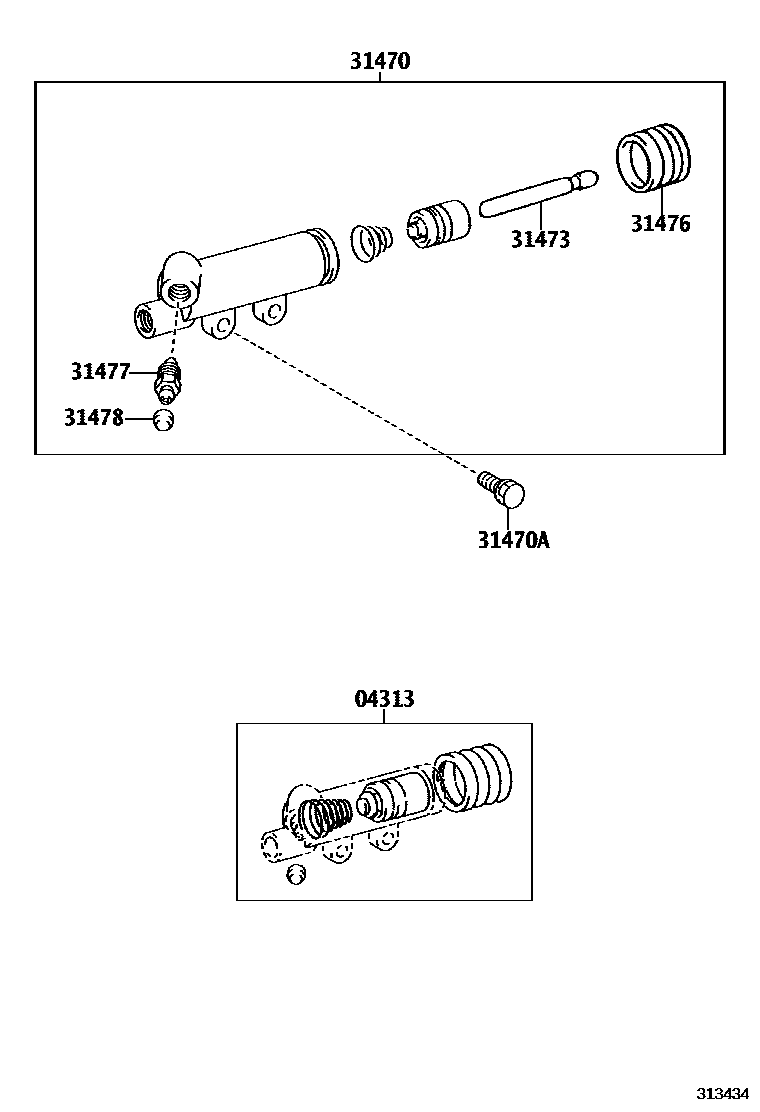

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-37091iXZU600..GCC;WU600,650,XZU650201411-202005

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-37080iWU600,650201107-201306

sub31470-37081

main31470-37081iWU600,650201307-201410

main31470-37082iXZU600..GCC;WU600,650,XZU650201411-202005

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825iXZU600..GCC;WU600,650,XZU650201107-202005

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-37050iXZU600..GCC;WU600,650,XZU650201107-202005

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iXZU600..GCC;WU600,650,XZU650201107-202005

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iXZU600..GCC;WU600,650,XZU650201107-202005

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iXZU600..GCC;WU600,650,XZU650201107-202005

7 parts on this diagram · 1 diagram in section
