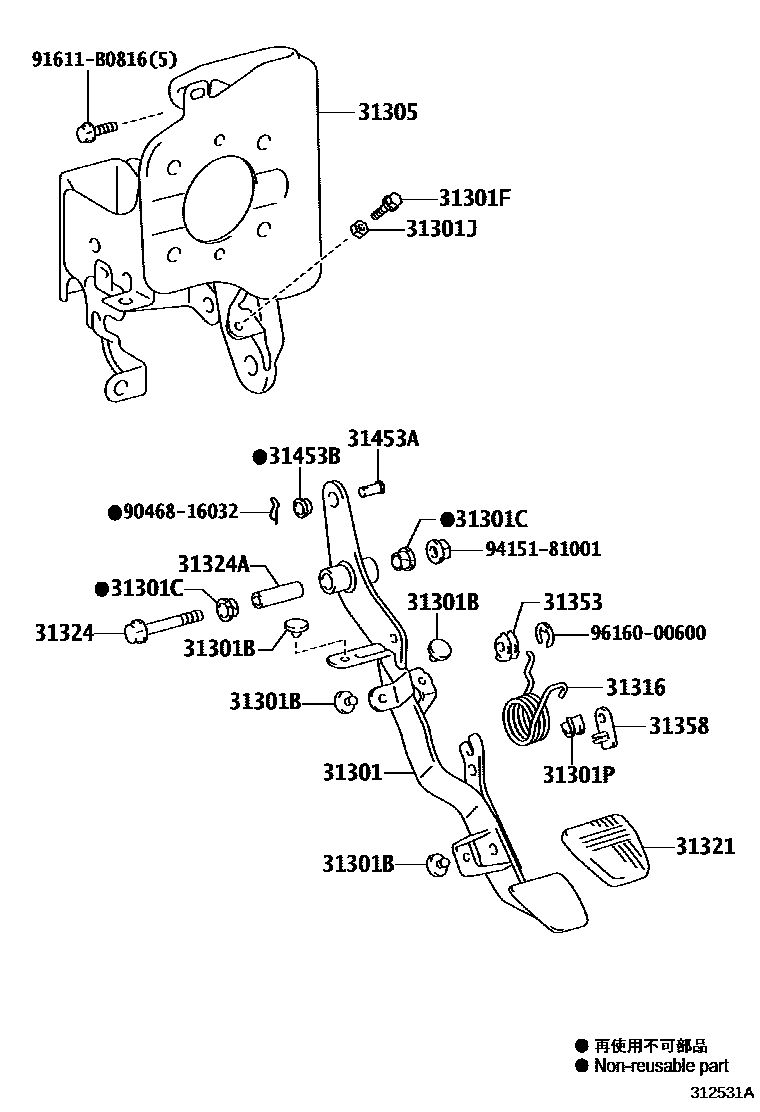

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-37370iXZU600..GCC;WU600,650,XZU650201107-201912

sub31301-37371

sub31316-37011

main31301-37371iXZU600..GCC;WU600,650,XZU650201912-202005

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iXZU600..GEN201107-202005

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iXZU600..GCC;WU600,650,XZU650201107-202005

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main91551-80825iXZU600..GCC;WU600,650,XZU650201107-202005

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-60800iXZU600..GCC;WU600,650,XZU650201107-202005

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iXZU600..GCC;WU600,650,XZU650201107-202005

31305BRACKET SUB-ASSY, CLUTCH PEDAL

main31305-37030iXZU600..GCC;WU600,650,XZU650201107-202005

31316SPRING, TURNOVER CLUTCH PEDAL

main31316-37010iWU600,650,XZU600,650201107-201912

sub31316-37011

main31316-37011iXZU600..GEN201912-202007

sub31316-37012

main31316-37012iXZU600202008-202108

sub31316-37013

main31316-37013iXZU600202109

31321PAD, CLUTCH PEDAL

main31321-14020iWU600,650,XZU600,650201107-201704

main31321-52020iXZU600..GCC;WU600,650,XZU650201705-202005

31324SHAFT, CLUTCH PEDAL

main91552-81060iXZU600..GCC;WU600,650,XZU650201107-202005

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iXZU600..GCC;WU600,650,XZU650201107-202005

31353HOLDER, CLUTCH PEDAL SPRING

main31353-35010iXZU600..GCC;WU600,650,XZU650201107-202107

main31353-37010iXZU600202108

31358CAP, OVER CENTER SPRING

main31358-42010iXZU600..GCC;WU600,650,XZU650201107-202005

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iXZU600..GCC;WU600,650,XZU650201107-202005

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iXZU600..GCC;WU600,650,XZU650201107-202005

9046816032

main90468-16032

91611B0816

main91611-B0816

9415181001

main94151-81001

9616000600

main96160-00600

19 parts on this diagram · 3 diagrams in section
