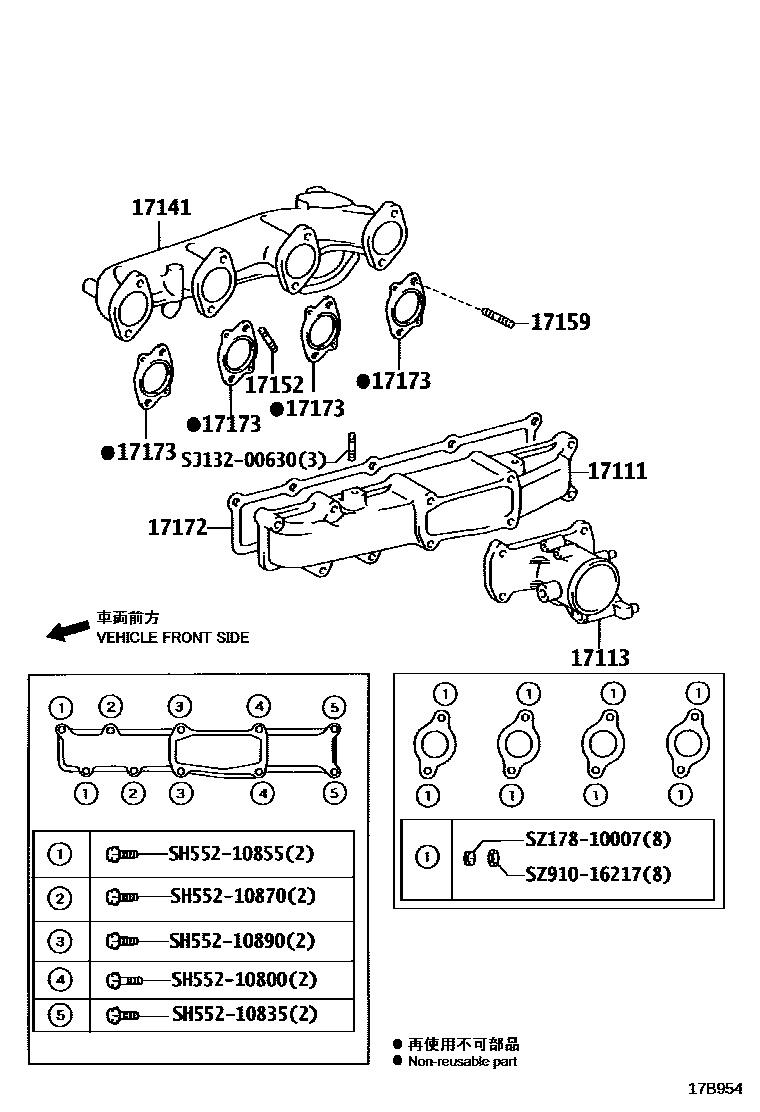

MANIFOLD

0001 1 0002 1 0003 1 0004 1

17111MANIFOLD, INTAKE

main17111-78110iN04C..XZU600..GEN201911

main17111-E0040iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

main17111-E0210iN04C..XZU600,650..GCC201605-202005

main17111-E0270iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

17113PIPE, INTAKE

main17103-E0190iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

NO.1

main17113-E0V61iN04C..XZU600..GEN201911

main17113-E0V81iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

NO.2

mainS171138240iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

17141MANIFOLD, EXHAUST

main17141-78170iN04C..XZU600,650..GCC202004-202005

main17141-E0360iN04C..XZU600..GEN201911-202004

mainS171416312iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

mainS171416432iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

mainSZ12610015×3iW04D..WU600,650201107-202005

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

mainSZ12610006×4iN04C..XZU600,650..GCC201605-202005

mainSZ12610012×8iW04D..WU600,650201107-202005

17172GASKET, MANIFOLD TO CYLINDER HEAD

mainS171712220iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-78080×4iW04D..WU600,650201612-202005

mainS171041880×4iN04C..XZU600,650201605-201612

SH55210800

mainSH552-10800

SH55210835

mainSH552-10835

SH55210855

mainSH552-10855

SH55210870

mainSH552-10870

SH55210890

mainSH552-10890

SJ13200630

mainSJ132-00630

SZ17810007

mainSZ178-10007

SZ91016217

mainSZ910-16217

15 parts on this diagram · 4 diagrams in section
