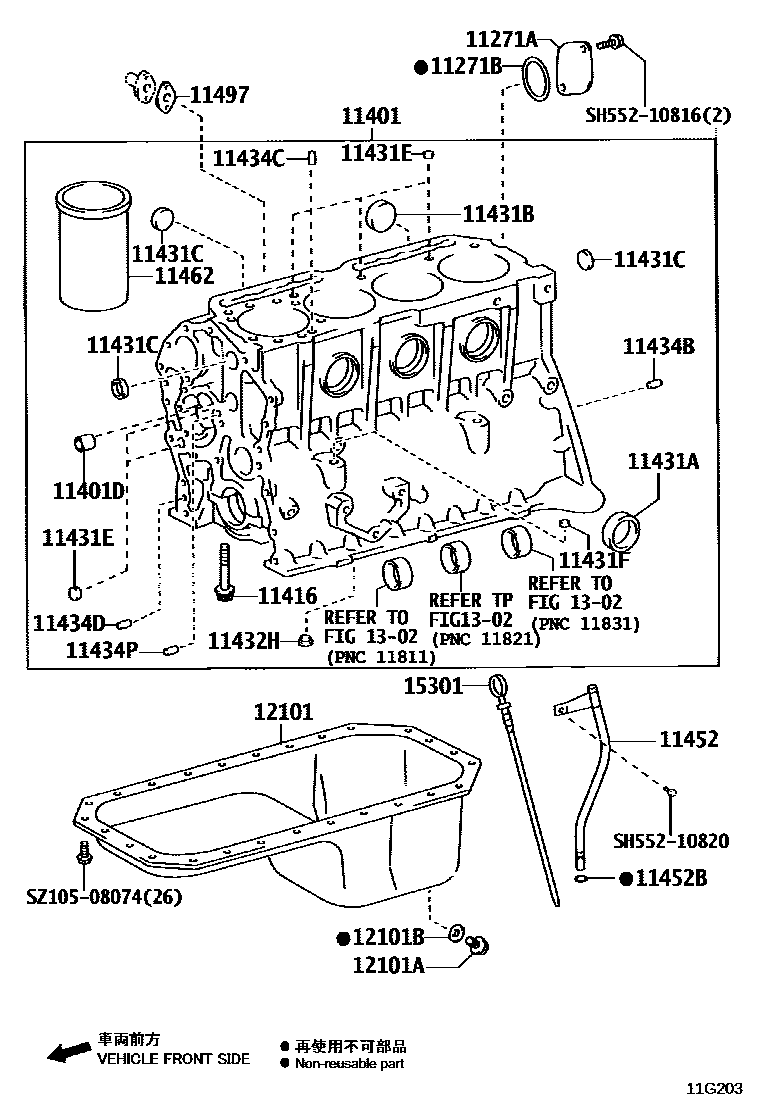

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11271ACOVER, CYLINDER BLOCK, REAR

mainS114991050iW04D..WU600,650201107-202005

mainS174582830iN04C..XZU600,650..GCC201605-202005

11271BRING, O(FOR CYLINDER BLOCK REAR PLATE)

mainSN73210693iW04D..WU600,650201107-201201

mainSN74110693iW04D..WU600,650201201-202005

11401BLOCK SUB-ASSY, CYLINDER

main11410-78460iN04C..XZU600,650201901-201905

sub11701-78170

sub15703-78060

main11410-78461iN04C..XZU600..GEN201911-202309

main11410-78462iN04C..XZU600202310

main11410-E0411iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-201811

main11410-E0412iW04D..WU600..ST..CBU;W04D..WU600,650..WT..DCRTH201812-201901

sub11115-78100

main11410-E0413iW04D..WU600..ST..CBU;W04D..WU600,650..WT..DCRTH201901-201905

sub11410-E0414

sub11701-78170

sub15703-78060

main11410-E0423iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-201811

main11410-E0424iW04D..WU600..DCRTJ;W04D..WU600..ST..IV3201812-201901

sub11115-78100

main11410-E0425iW04D..WU600..DCRTJ;W04D..WU600..ST..IV3201901-201905

sub11701-78170

sub15703-78060

main11410-E0426iW04D..WU600..DCRTJ;W04D..WU600..ST..IV3201905-202002

main11410-E0D71iN04C..XZU600,650201605-201811

main11410-E0D72iN04C..XZU600,650201812-201901

sub11115-78100

main11410-E0G60iW04D..WU600..ST..CBU;W04D..WU600,650..WT..DCRTH201908-202005

main11410-E0J40iW04D..WU600..DCRTJ;W04D..WU600..ST..IV3202003-202005

11401DBUSH(FOR OIL PUMP COVER)

main15117-E0030iW04D..WU600,650201107-202005

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

mainS115211410×10iW04D..WU600,650201107-202005

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

mainSN41105016×3iW04D..WU600,650201107-202005

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

mainSN41104016×3iW04D..WU600,650201107-202005

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

mainSN41103616×5iW04D..WU600,650201107-202005

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

mainSN41101712×2iW04D..WU600,650201607-202005

11431FPLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)

mainSZ33114001iN04C..XZU600..GEN201911

11432HPLUG, W/HEAD TAPER SCREW, NO.5

mainSN41102416iN04C..XZU600..GEN201911

NO.2:REFER ILLUST.

mainSN49102109iW04D..WU600,650201808-202005

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

mainSM21201224×2iW04D..WU600,650201107-202005

L=24,OD=12

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

mainSZ25008007×2iW04D..WU600,650201107-202005

L=16,OD=8

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

mainSZ25008007×2iW04D..WU600..ST..CBU;W04D..WU600,650..WT..DCRTH201908-202005

L=16,OD=8

mainSZ25008008×2iW04D..WU600,650201107-202005

L=24,OD=8

11434PPIN, STRAIGHT(FOR OIL PUMP SET)

mainSM21200510iW04D..WU600,650201107-202005

L=10,OD=5

11452GUIDE, OIL LEVEL GAGE

main11409-E0061iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

mainS121023920iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

mainSZ30110025iW04D..WU600,650201107-202005

11462LINER, CYLINDER

main11462-78030×4iN04C..XZU600..GEN201911

MARK A

main11462-E0170×4iW04D..WU600..ST..CBU;W04D..WU600,650..WT..DCRTH201908-202005

MARK A

main11463-78030×4iW04D..WU600..ST..CBU;W04D..WU600,650..WT..DCRTH201901-201908

MARK B

main11463-E0140×4iN04C..XZU600,650201705-201901

MARK B

main11464-78030×4iW04D..WU600..ST..CBU;W04D..WU600,650..WT..DCRTH201901-201908

MARK C

main11464-E0140×4iN04C..XZU600,650201705-201901

MARK C

mainS114671762×4iW04D..WU600,650201107-201704

MARK A

mainS114671772×4iN04C..XZU600,650201605-201704

MARK B

mainS114671792×4iN04C..XZU600,650201605-201704

MARK C

11497GASKET, CYLINDER BLOCK OIL HOLE

mainS241351161iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

12101PAN SUB-ASSY, OIL

main12101-E0450iN04C..XZU600,650..GCC201605-202005

main12111-E0630iW04D..WU600,650201204-202005

mainS121112730iW04D..WU600,650201107-201204

12101APLUG(FOR OIL PAN DRAIN)

mainSZ34118014iN04C..XZU600,650..GCC201605-202005

12101BGASKET(FOR OIL PAN DRAIN PLUG)

mainSZ43018009iN04C..XZU600..GEN201911

1302

15301GAGE SUB-ASSY, OIL LEVEL

main15301-78241iN04C..XZU600..GEN201911

main15301-E0140iN04C..XZU600,650..GCC201605-202005

main15301-E0320iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

mainS153013262iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

SH55210816

mainSH552-10816

SH55210820

mainSH552-10820

SZ10508074

mainSZ105-08074

27 parts on this diagram · 4 diagrams in section
