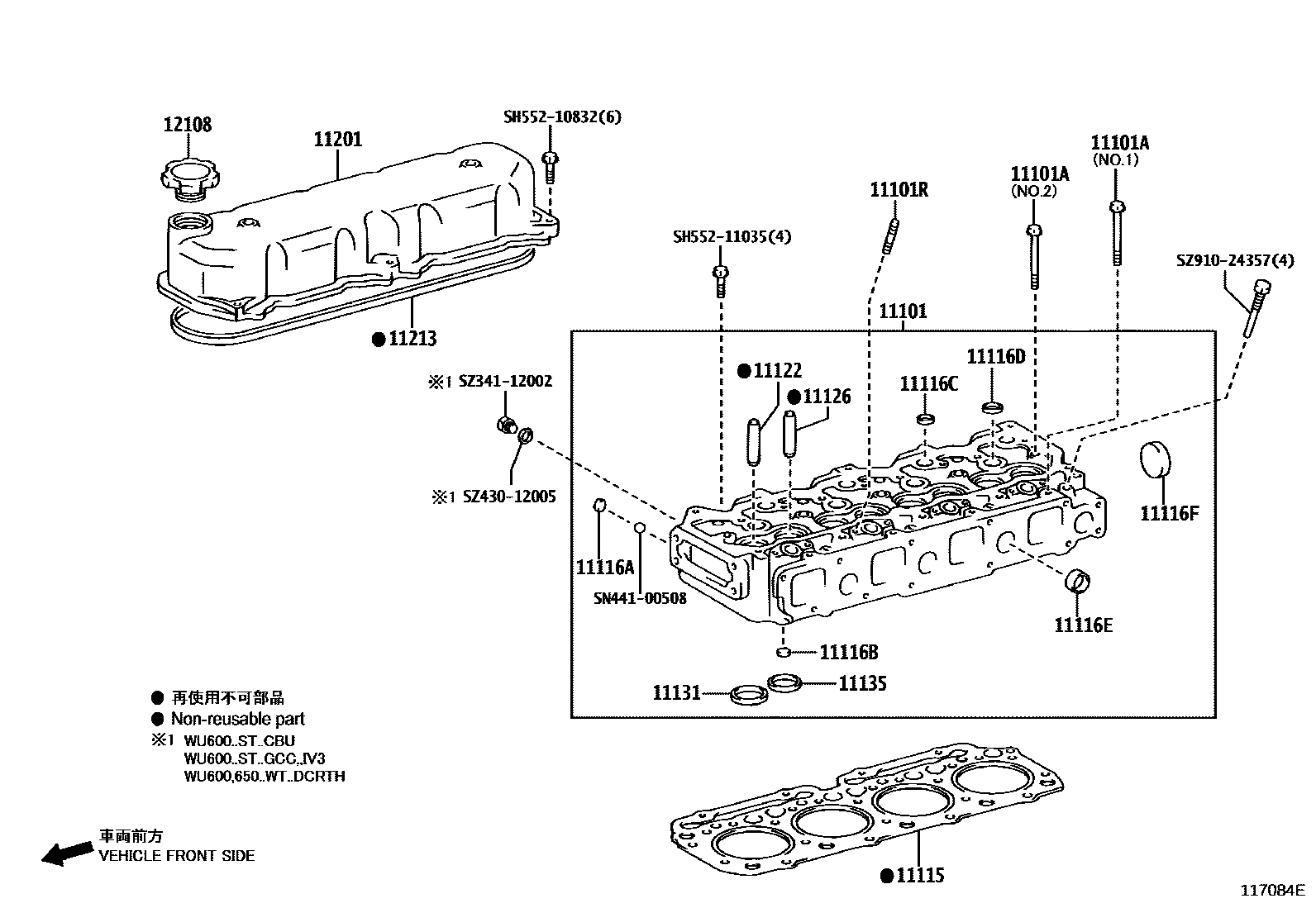

CYLINDER HEAD

0001 1 0002 1 0003 1

11101HEAD SUB-ASSY, CYLINDER

main11101-78210iN04C..XZU600,650201605-201905

sub11101-78221

subSN411-02216

main11101-78221iN04C..XZU600,650..GCC201905-202005

main11101-E0A31iW04D..WU600,650201107-201612

main11101-EW020iW04D..WU600,650201612-202005

11101ABOLT(FOR CYLINDER HEAD SET)

mainS1115E0030iW04D..WU600,650201107-202005

NO.1

mainS1115E0040iW04D..WU600,650201107-202005

NO.2

mainS111852700iN04C..XZU600,650..GCC201605-202005

NO.2

mainSH55211035iN04C..XZU600,650..GCC201605-202005

NO.1

11101RBOLT, STUD(FOR FUEL PIPE)

mainSJ12200845iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

mainSZ11608009iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

11115GASKET, CYLINDER HEAD

main11115-78100iN04C..XZU600,650201901-201903

sub11115-78101

main11115-78101iN04C..XZU600,650..GCC201904-202005

main11115-E0030iW04D..WU600,650201107-201705

sub11115-E0031

main11115-E0031iW04D..WU600,650201706-201812

sub11115-78100

11116APLUG, TIGHT, NO.1

mainSN41101412iW04D..WU600,650201107-202005

11116BPLUG, TIGHT, NO.2

mainSN41101412iN04C..XZU600,650..GCC201605-202005

mainSZ33122004iW04D..WU600,650201107-201612

11116CPLUG, TIGHT, NO.3

mainSN41101712iN04C..XZU600..GEN201605-202005

mainSN41102616iW04D..WU600,650201612-202005

mainSZ33124002iW04D..WU600,650201107-201612

11116DPLUG, TIGHT, NO.4

mainSN41102416iW04D..WU600,650201612-202005

mainSN41105016iN04C..XZU600,650..GCC201605-202005

mainSZ33126001iW04D..WU600,650201107-201612

11116EPLUG, TIGHT, NO.5

mainSN41102216iN04C..XZU600..GEN201605-202005

mainSN41103016iW04D..WU600,650201612-202005

mainSZ33130002iW04D..WU600,650201107-201612

11116FPLUG, TIGHT, NO.6

mainSN41102216iN04C..XZU600,650..GCC201905-202005

mainSN41105016iW04D..WU600,650201107-202005

11122BUSH, INTAKE VALVE GUIDE

mainS111221220iN04C..XZU600..GEN201605-202005

STD

mainS111221250iW04D..WU600,650201107-202005

STD

11126BUSH, EXHAUST VALVE GUIDE

mainS111221220iN04C..XZU600,650..GCC201605-202005

STD

mainS111221250iW04D..WU600,650201107-202005

STD

11131SEAT, INTAKE VALVE

mainS111311490iW04D..WU600,650201107-202005

STD

mainS111311540iN04C..XZU600..GEN201605-202005

STD

11135SEAT, EXHAUST VALVE

main11135-E0010iN04C..XZU600,650..GCC201605-202005

STD

main11135-E0070iW04D..WU600,650201107-202005

STD

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-E0050iN04C..XZU600,650201605-201906

sub11201-E0051

main11201-E0051iN04C..XZU600,650..GCC201907-202005

main11211-E0240iW04D..WU600,650201107-202005

11213GASKET, CYLINDER HEAD COVER

main11213-78070iN04C..XZU600,650..GCC201605-202203

sub11213-78071

main11213-78071iN04C..XZU600202204

mainS112131550iW04D..WU600,650201107-202005

12108CAP SUB-ASSY, OIL FILLER

main12180-E0010iW04D..WU600,650201107-202005

SH55210832

mainSH552-10832

SH55211035

mainSH552-11035

SN44100508

mainSN441-00508

SZ34112002

mainSZ341-12002

SZ43012005WASHER, SOFT, NO.1

mainSZ430-12005

SZ91024357

mainSZ910-24357

23 parts on this diagram · 3 diagrams in section
