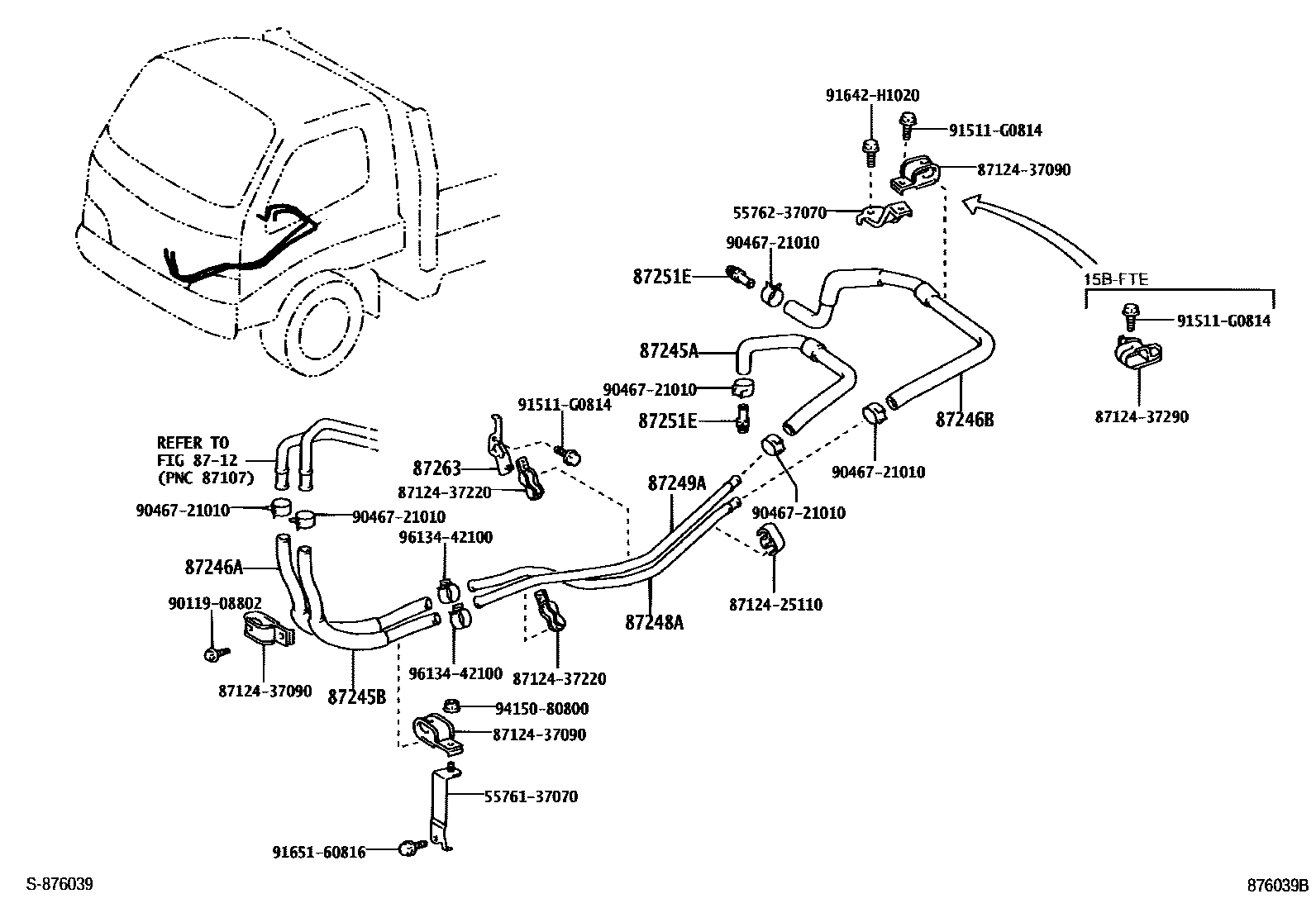

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

8712

87245AHOSE, HEATER WATER, INLET A

main87245-37450iXZU305,345200312-200610

main87245-37C70iWU300,340..SA200610-201106

main87245-37E30iWU30#,34#..LHD200812-201106

sub87245-37K90

main87245-3V480iWU300,340..SA200212-200802

main87246-37310iBU303,343,XZU300,320,330,340..GEN,TAIW200212-200610

main99556-30500iWU30#,34#,XZU307,327,337,347..LHD200610-200812

*H,L=490

87245BHOSE, HEATER WATER, INLET B

main87245-37840iWU300,340..SA200304-200802

main87245-37A00iXZU305,345200312-200610

main87245-37C60iWU300,340..SA200610-201106

main87245-37C80iXZU307,327,337,347200610-200901

sub87245-37C81

main87245-3V120iBU303,343,WU300,340,XZU300,320,330,340..LHD200212-200610

L=490

main87245-3V510iBU303,343..RHD..GEN200212-200610

L=610

87246AHOSE, HEATER WATER, OUTLET A

main87245-37A00iXZU305,345200312-200610

main87245-37C70iWU340..RHD..CBU200610-201106

main87245-37E20iWU30#,34#..LHD200812-201106

main87245-3V120iBU303,343,WU300,340,XZU300,320,330,340..LHD200212-200610

L=490

main87245-3V500iBU300,340200212-200610

L=630

main99556-30500iWU30#,34#,XZU307,327,337,347..LHD200610-200812

*H,L=490

main99556-30700iWU300,340..SA200304-200802

*H,L=680

sub99556-31000

87246BHOSE, HEATER WATER, OUTLET B

main87245-3V361iBU300,340200212-200610

main87246-37280iWU300,340..GCC200212-200802

main87246-37450iXZU305,345200312-200609

main87246-37650iWU300,340..SA200610-201106

main87246-37690iXZU307,327,337,347200610-200901

87248APIPE, HEATER WATER INLET, A

main87248-37281iBU303,343,XZU300,320,330,340..LHD200212-200610

main87248-37412iWU300,340..SA200304-200802

main87248-37450iXZU305,345200312-200401

sub87248-37451

main87248-37451iWU340..RHD..CBU200401-201106

main87248-37480iBU303,343..RHD..GEN200607-200608

NO.1

sub87248-37481

main87248-37481iBU303,343..RHD..GEN200608-200610

NO.1

main87248-37490iBU303,343..RHD..GEN200212-200607

sub87248-37491

main87248-37490iBU303,343..RHD..GEN200607-200608

NO.2

sub87248-37491

main87248-37491iBU303,343..RHD..GEN200608-200610

NO.2

main87248-37510iWU300,340..GCC200212-200610

main87248-37810iWU30#,34#,XZU307,327,337,347..LHD200610-200812

main87248-37B50iWU30#,34#..LHD200812-201106

sub87248-37K91

87249APIPE, HEATER WATER OUTLET, A

main87248-37480iBU300,340200212-200607

sub87248-37481

main87248-37500iWU300,340..SA200304-200802

main87248-37520iWU300,340..GCC200212-200610

main87248-37530iXZU305,345200312-200401

sub87248-37531

main87248-37531iXZU305,345200401-200609

main87248-37800iXZU307,327,337,347200610-200812

main87248-37A90iWU340..RHD..CBU200610-201106

main87248-37B00iWU30#,34#..LHD200610-200812

main87248-37B60iXZU307,327,337,347200812-200901

main87248-37B80iWU30#,34#..LHD200812-201106

87251EJOINT, WATER, NO.2

main87251-30200iBU303,343,XZU300,320,330,340..GEN,TAIW200212-200610

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-37090iBU300,340200212-200606

sub87263-37150

main87263-37100iWU300,340..GCC200212-200610

main87263-37150iBU303,343..RHD..GEN200607-200610

5576137070HOSE, COWL VENTILATOR DRAIN, RH

main55761-37070

5576237070HOSE, COWL VENTILATOR DRAIN, LH

main55762-37070

8712425110CLAMP, HEATER

main87124-25110

8712437090CLAMP, HEATER

main87124-37090

8712437220CLAMP, HEATER

main87124-37220

8712437290CLAMP, HEATER

main87124-37290

9011908802

main90119-08802

9046721010

main90467-21010

91511G0814

main91511-G0814

91642H1020

main91642-H1020

9165160816

main91651-60816

9415080800

main94150-80800

9613442100

main96134-42100

22 parts on this diagram · 8 diagrams in section
