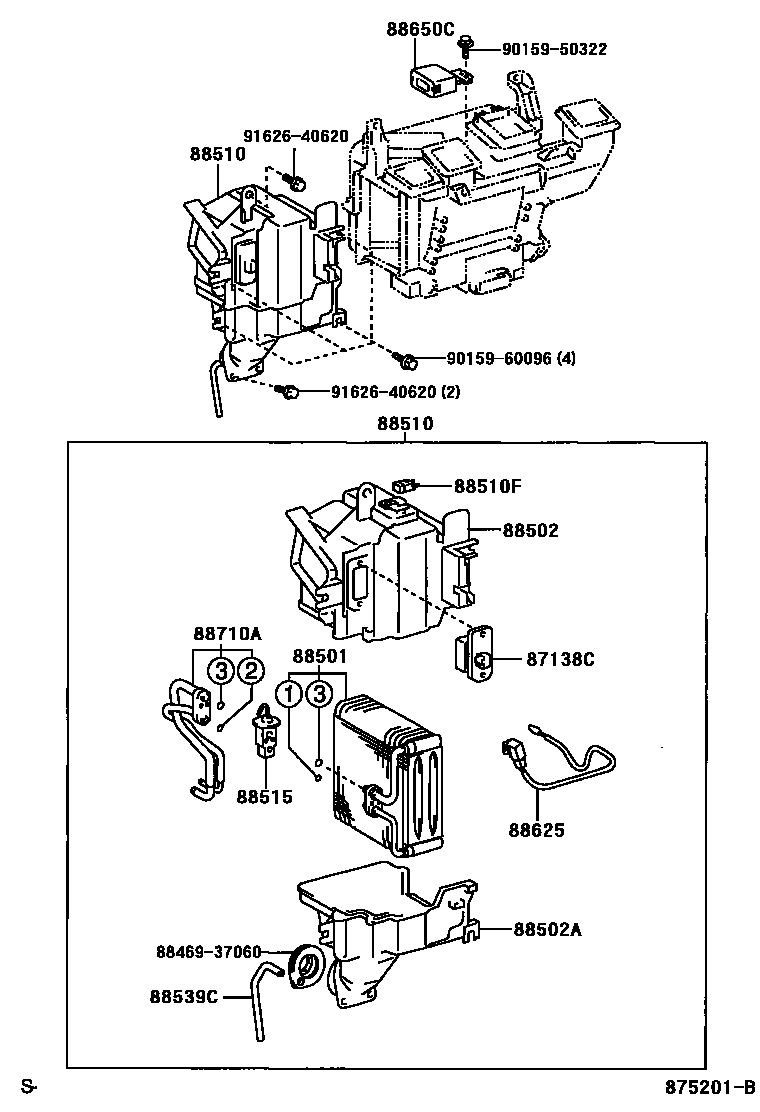

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1O-RING

87138CRESISTOR, BLOWER

main87138-37090iXZU300,320,330,340200212-200610

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-37060iBU300,340200212-200610

main88501-37070iXZU300,320,330,340200212-200812

88502CASE SUB-ASSY, COOLING UNIT

main88502-37050iBU300,340200212-200610

88502ACASE SUB-ASSY, COOLING UNIT

main88502-37040iXZU305,345200212-200610

88510UNIT ASSY, COOLER

main88510-37120iBU300,340200212-200610

main88510-37130iXZU300,320,330,340200212-200610

main88510-37250iXZU307,327,337,347200610-200812

88510FHOLDER, FUSE

main82630-95J03iBU300,340200212-200610

88515VALVE, COOLER EXPANSION

main88515-16060iXZU300,320,330,340200212-200312

sub88515-28160

main88515-28160iXZU300,320,330,340200311-200812

main88515-48040iBU300,340200212-200311

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-37070iXZU300,320,330,340200212-200610

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88539-37060iBU300,340200212-200610

88625THERMISTOR, COOLER, NO.1

main88625-20460iBU300,340200212-200610

sub88625-32150

main88625-32150iXZU307,327,337,347200610-200812

88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER

main88650-37120iBU300,340200212-200610

88710ATUBE ASSY, AIR CONDITIONER

main88710-37340iBU300,340200212-200610

main88710-37460iXZU307,327,337,347200610-200812

8846937060SWITCH, PRESSURE CONTROL

main88469-37060

9015950322

main90159-50322

9015960096

main90159-60096

9162640620

main91626-40620

16 parts on this diagram · 4 diagrams in section
