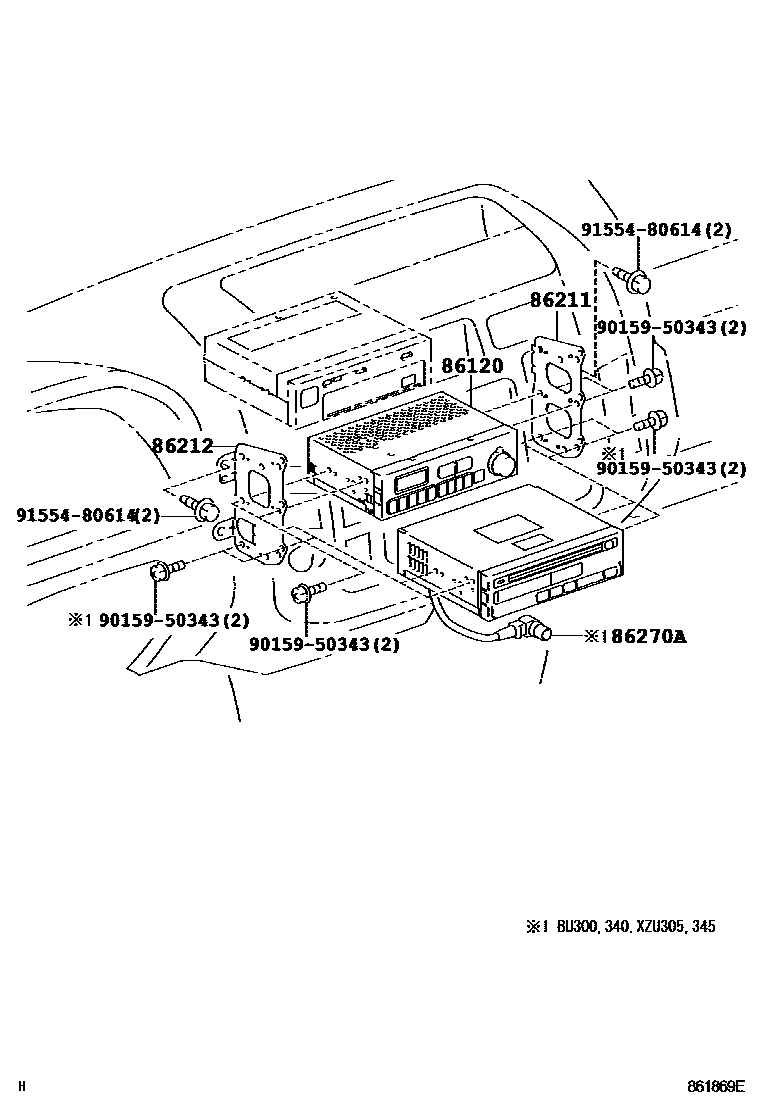

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86120RECEIVER ASSY, RADIO

main86120-37150iBU303,343,WU300,340,XZU305,345..ARL,GCC,GEN200212-200802

HINOJIDOU,TYPE A:REFER TO ILLUSTRATION

main86120-37160iBU303,343,WU300,340,XZU305,345..ARL,GCC,GEN200212-200802

HINOJIDOU,TYPE B:REFER TO ILLUSTRATION

main86120-37170iWU300,340..SA200610-201106

HINOJIDOU,TYPE C:REFER TO ILLUSTRATION

main86120-37180iWU30#,34#..GCC,GEN200610-201106

HINOJIDOU,TYPE D:REFER TO ILLUSTRATION

main86120-37190iWU30#,34#..GEN200801-201106

HINOJIDOU,PART NUMBER LABEL=86120-37190

main86120-37320iWU30#,34#..LHD..GEN200808-201106

CLARION,PART NUMBER LABEL=86120-37320

86211BRACKET, RADIO, NO.1

main86211-37050iWU300,340..SA200212-201106

main86211-37060iXZU307,327,337,347200212-201106

86212BRACKET, RADIO, NO.2

main86212-37030iBU303,343,WU300,340,XZU305,345..RHD..(ARL,GEN,SA)200212-200606

sub86212-37031

main86212-37031iWU300,340..SA200607-201106

main86212-37040iXZU307,327,337,347200212-201106

86270ADISC PLAYER ASSY

main86270-37010iBU300,340200212-200610

9015950343

main90159-50343

9155480614

main91554-80614

6 parts on this diagram · 2 diagrams in section
