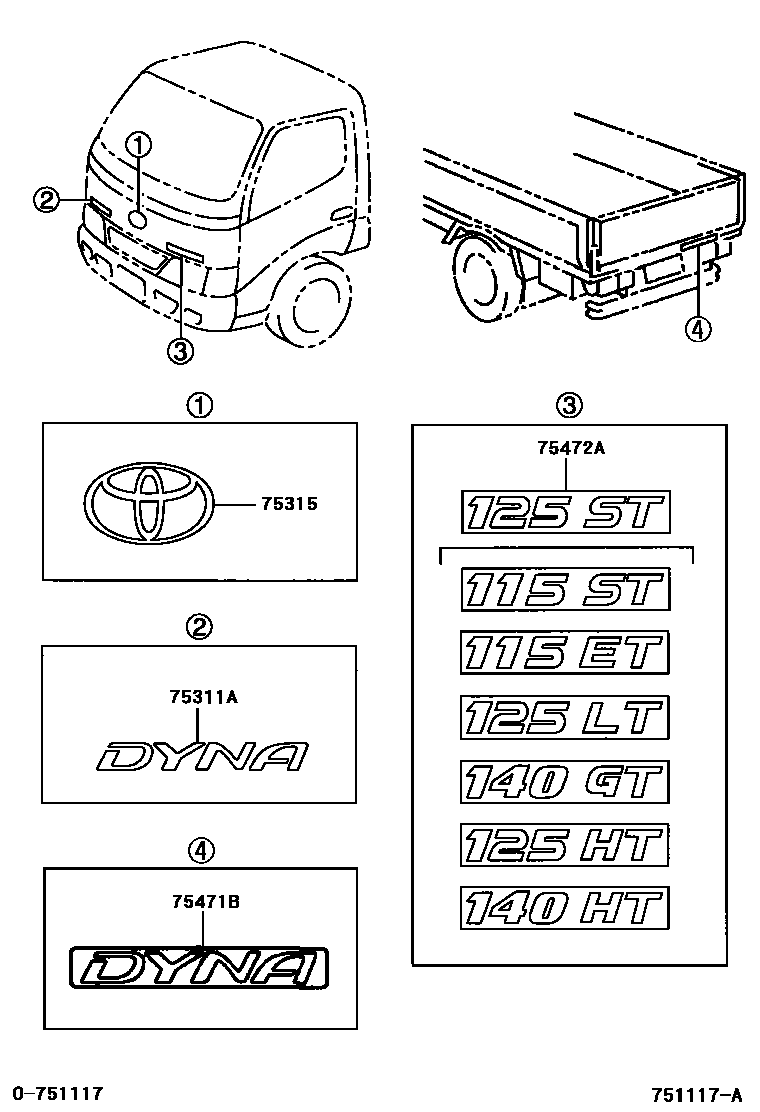

EMBLEM & NAME PLATE

0001 1 0003 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-0W010iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main75311-0W040iXZU349..5F;XZU309,359..IV8200912-202310

75311APLATE, FRONT NAME, NO.1

main75311-25051iBU300,340200212-200802

DYNA

main75311-37130iXZU307,327,337,347200610-201106

DYNA

main75311-F1030iXZU349..ST;XZU359..T3201708-202310

L

main75311-YX010iBU303,343,WU300,340,XZU342..IDN200209-200612

DYNA

75315ORNAMENT, RADIATOR GRILLE

main75315-0W010iWU302,342..(DCRTH,DCRTJ)..IDN200209-201005

main75315-0W030iWU302,342,352..DCRTP,DCRTR200912

main75315-25010iWU300,340..SA200212-200802

main75315-37011iWU30#,34#,XZU307,327,337,347..GCC,GEN,SA,TAIW200610-201106

main75315-37110iXZU309,349,359202203-202204

main75318-F1010iXZU349..5F;XZU309,359..IV1,IV8202204-202310

75471BPLATE, REAR BODY NAME, NO.1

main75471-25030iBU300,340200212-201106

75472APLATE, REAR BODY NAME, NO.2

main75312-YX010iBU303..T3200209-200612

115ST

main75312-YX020iWU300..T3200209-200612

125ST

main75312-YX030iBU343..IDN200209-200612

115ET

main75312-YX040iWU340..65T..IDN200209-200612

125LT

main75312-YX050iXZU342..65T200209-200612

140GT

main75312-YX060iWU340..75T200209-200612

125HT

main75312-YX070iXZU342..75T200209-200612

140HT

5 parts on this diagram · 2 diagrams in section
