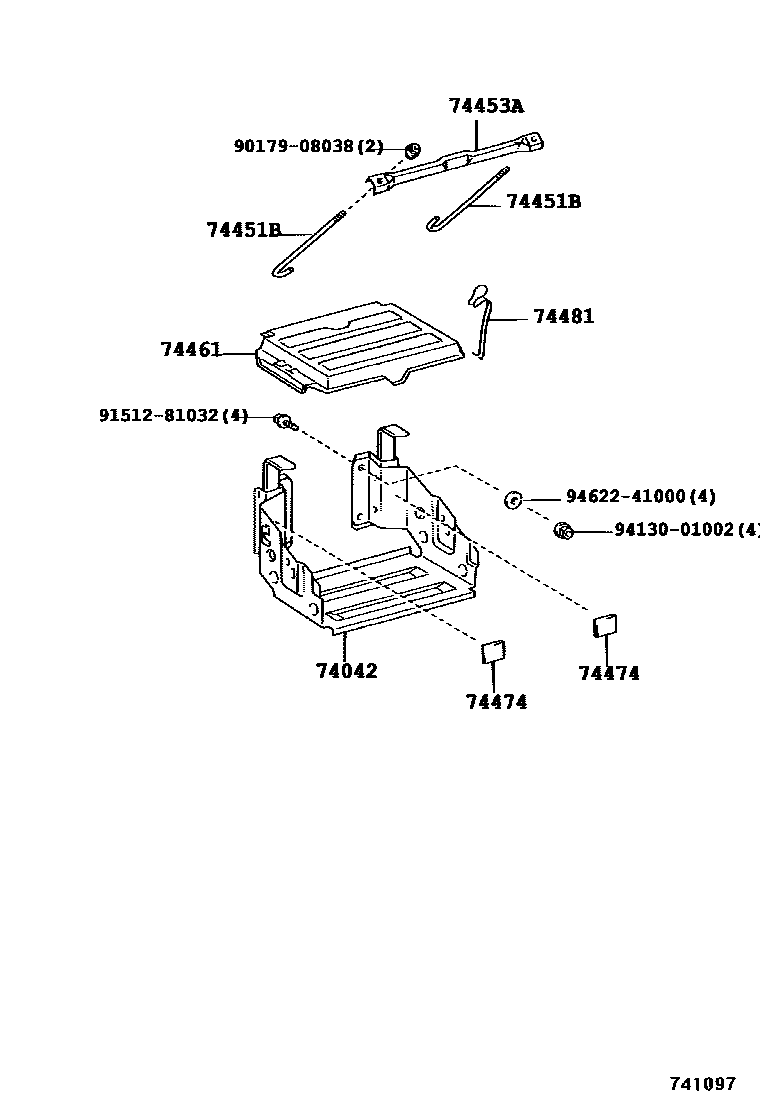

BATTERY CARRIER

0001 1 0002 1 0003 1 0004 1 0005 1

74042BRACKET SUB-ASSY, BATTERY

main74042-0W010iBU303,343,WU300,340,XZU342..IDN200209-200310

main74042-0W011iBU303,343,WU300,340,XZU342..IDN200310-200612

main74042-0W040iWU302,342..DCRTP,DCRTR200912-201612

main74042-37040iWU300,340..SA200212-200802

BATTERY=55D23L X2

main74042-37050iBU300,340200212-200312

BATTERY=95D31L X 2

sub74042-37051

main74042-F1010iWU302,342,352201612

74451BBOLT, BATTERY CLAMP

main74451-0W010×2iXZU349..6F;XZU309..IV3202203

main74451-37011×2iBU300,340200212-200312

BATTERY=55D23L X2

sub74451-37012

main74451-37021×2iWU300,340..SA200212-200802

BATTERY=95D31L X 2

sub74451-37022

74453ABAR, BATTERY SET PLATE

main74453-0W010iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main74453-36070iBU300,340200212-200312

sub74453-37130

main74453-F1010iXZU349..5F;XZU309,359..IV1,IV8202203-202310

74461COVER, BATTERY

main74461-0W010iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main74461-37020iWU300,340..SA200610-200812

BATTERY=55D23L X2

main74461-37030iWU300,340..SA200212-200802

BATTERY=95D31L X 2

main74461-F1010iXZU359;XZU349..5F..T3;XZU309..IV8..T3202203-202310

74474PAD, BATTERY

main74475-36040×2iBU303,343,WU300,340,XZU342..IDN200209-200612

74481CLAMP, BATTERY HOLD DOWN

main74481-0W010×2iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main74481-36030×2iBU300,340200212-200312

9017908038

main90179-08038

9151281032

main91512-81032

9413001002

main94130-01002

9462241000

main94622-41000

10 parts on this diagram · 5 diagrams in section
