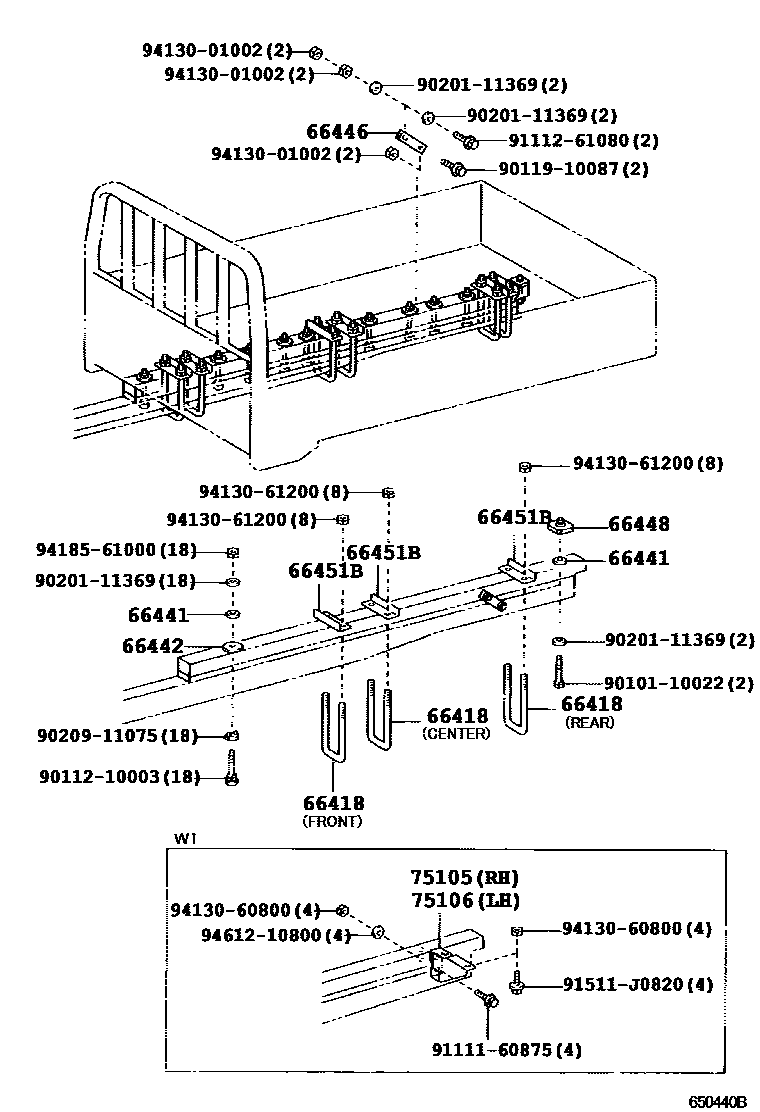

REAR BODY MOUNTING

0001 1 0002 1

66418BOLT, MOUNTING

main90117-12039iBU343,WU340..CBU200212-201106

REAR

main90117-12040iWU30#..CBU200212-201106

REAR

main90117-12041iBU343,WU340..CBU200212-200610

FRONT & CENTER

main90117-12041iBU303,WU300..CBU200212-201106

CENTER

main90117-12041iWU30#,34#..CBU200610-201106

FRONT

main90117-12051iWU30#..CBU200212-201106

FRONT

66441SHIM, MOUNTING, NO.1

main66442-95403iWU30#..CBU200212-201106

66442SHIM, MOUNTING, NO.2

main90564-15142iBU303,WU300..CBU200212-201106

66446BRACE, FRAME FLOOR

main66446-92701iWU30#..WT..CBU200212-201106

main66447-92803iBU343,WU340..CBU;BU303,WU300..ST..CBU200212-201106

66448PLATE, REAR BODY MOUNTING GUIDE

main66448-37010iBU303,WU300..CBU200212-201106

66451BPLATE, U BOLT

main66451-37030iBU303,343,WU300,340..CBU200212-200610

main66451-37030iWU34#..CBU200610-201106

FRONT,CENTER,REAR

75105SUPPORT SUB-ASSY, MAIN SILL, RH

main75105-95401iBU303,WU300..WT..CBU200212-201106

75106SUPPORT SUB-ASSY, MAIN SILL, LH

main75106-95401iBU303,WU300..WT..CBU200212-201106

9010110022

main90101-10022

9011210003

main90112-10003

9011910087

main90119-10087

9020111369

main90201-11369

9020911075

main90209-11075

9111160875

main91111-60875

9111261080

main91112-61080

91511J0820

main91511-J0820

9413001002

main94130-01002

9413060800

main94130-60800

9413061200

main94130-61200

9418561000

main94185-61000

9461210800

main94612-10800

21 parts on this diagram · 2 diagrams in section
