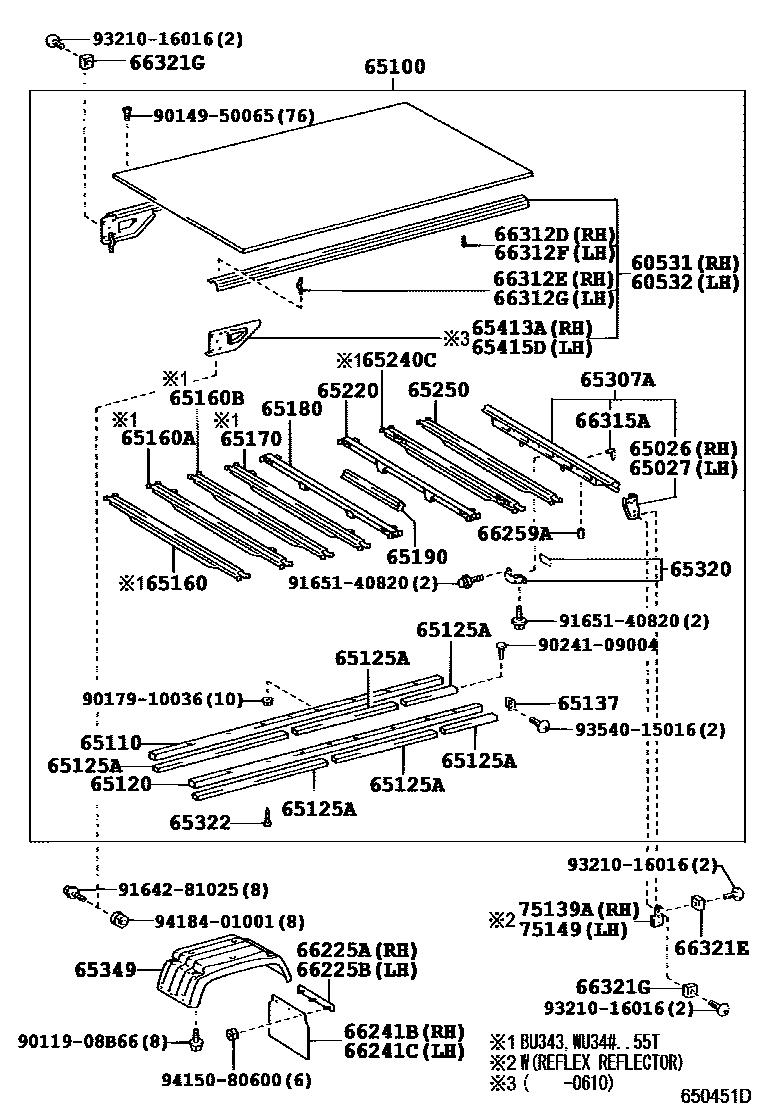

REAR BODY FLOOR & FENDER
60531FRAME SUB-ASSY, FLOOR SIDE, RH
60532FRAME SUB-ASSY, FLOOR SIDE, LH
65026BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH
65027BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH
65100FLOOR ASSY, REAR BODY
***
***
***,W/O(SIDE GUARD)
***
***,W/O(SIDE GUARD)
***,W/O(SIDE GUARD)
***
***
***
65110SILL ASSY, MAIN, RH
65120SILL ASSY, MAIN, LH
65125ASHIM, MAIN SILL, LOWER NO.1
REAR LH
FRONT
CENTER
REAR RH
65137COVER, MAIN SILL END
65160SILL ASSY, CROSS, NO.2
W/O(SIDE GUARD)
W/O(SIDE GUARD)
65160ASILL ASSY, CROSS, NO.2
65160BSILL ASSY, CROSS, NO.2
65170SILL ASSY, CROSS, NO.2
W/O(SIDE GUARD)
65180SILL ASSY, CROSS, NO.4
65190SILL ASSY, CROSS, NO.5
65220SILL ASSY, CROSS, NO.4
65240CROSSMEMBER, REAR BODY FLOOR, TAIL
65240CSILL ASSY, CROSS, NO.9
65250SILL ASSY, CROSS, NO.2
65307AFRAME SUB-ASSY, FLOOR, REAR
65320PLATE, REAR FLOOR END
65322NAIL
65349FENDER, FLOOR SIDE
sub65349-37040
65413ABRACKET, GUARD FRAME, RH
65415DBRACKET, GUARD FRAME, LH
66225ASUPPORT, BAFFLE RUBBER
66225BSUPPORT, BUFFLE RUBBER
66259ACOVER, REAR BODY FLOOR, REAR
66312DHOOK, ROPE, NO.2
66312EHOOK, ROPE, NO.2
66312FHOOK, ROPE, NO.2
66312GHOOK, ROPE, NO.2
66315AHOOK, ROPE
66321EBUMPER, GATE RUBBER
FRONT
REAR
66321GBUMPER, GATE RUBBER
75139ABRACKET, REFLEX REFLECTOR, RH
75149BRACKET, REFLEX REFLECTOR, LH
9011908B66
main90119-08B66
9014950065
main90149-50065
9017910036
main90179-10036
9024109004
main90241-09004
9164281025
main91642-81025
9165140820
main91651-40820
9321016016
main93210-16016
9354015016
main93540-15016
9415080600
main94150-80600
9418401001
main94184-01001
49 parts on this diagram · 2 diagrams in section
