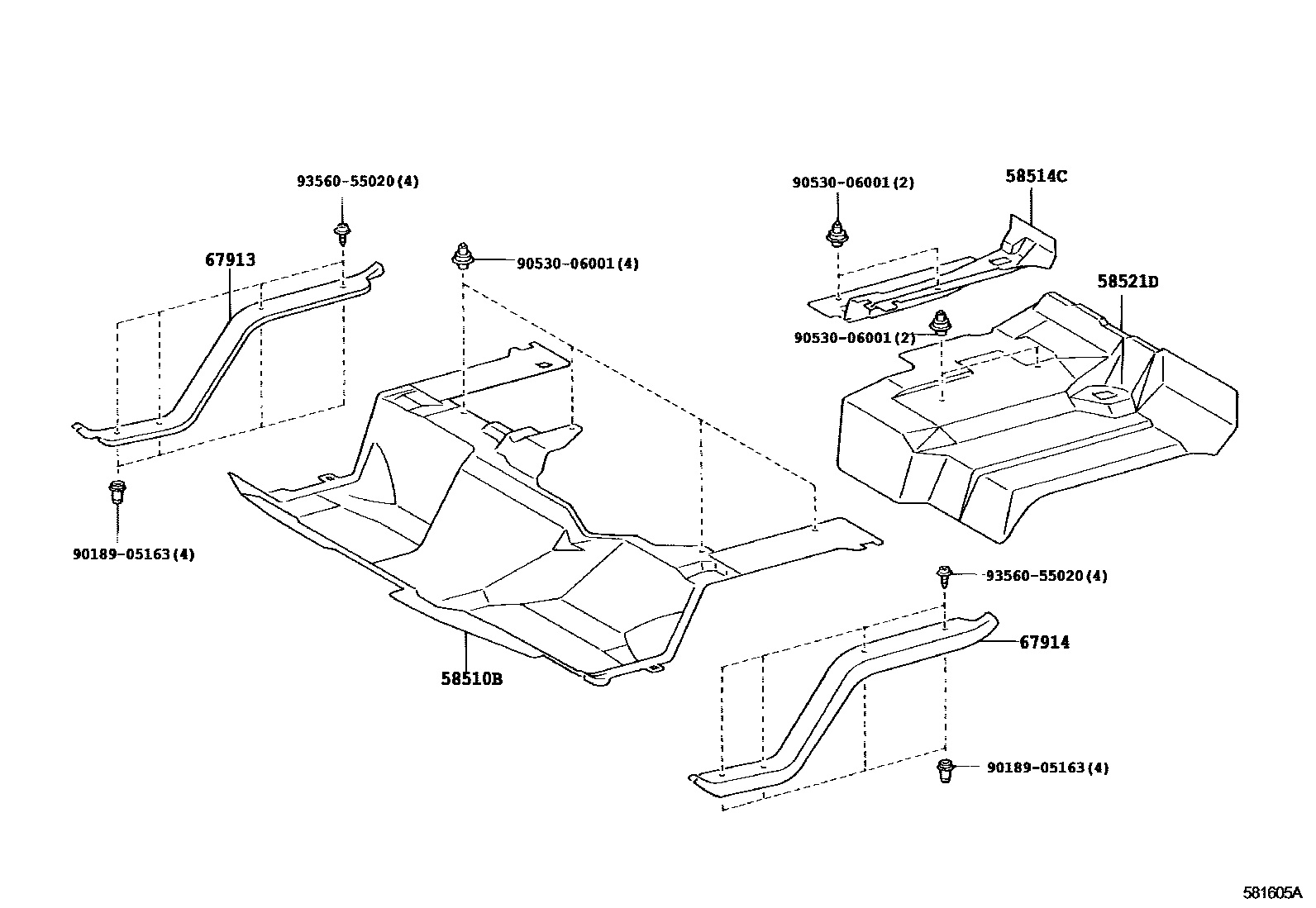

FLOOR MAT & SILENCER PAD

0001 1 0002 1 0003 1

58510BMAT, FRONT FLOOR, FRONT

main58510-0W010-B0iBU303,343,WU300,340,XZU342..IDN200209-200612

DARK CHARCOAL,TRIM1#

main58510-0W050-B0iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

DARK CHARCOAL,TRIM1#

main58510-0W080-B0iWU302,342,352..DCRTP,DCRTR200912-202012

DARK CHARCOAL,TRIM1#

sub58510-0W081

main58510-0W081-B0iWU302,342,352202101

DARK CHARCOAL,TRIM1#

main58510-37611-B1iBU303,343,WU300,340,XZU300,320,330,340..LHD200212-200610

DARK CHARCOAL,TRIM1#

main58510-37B60-B0iXZU307,327,337,347200610-200901

DARK CHARCOAL,TRIM1#

main58510-37C20-B0iWU300,340..SA200610-201106

DARK CHARCOAL,TRIM1#

main58510-37C30-B0iWU340..RHD..CBU200610-201106

W(CONSOLE BOX),DARK CHARCOAL,TRIM1#

main58510-37J80-B0iWU30#,34#..LHD200610-201106

DARK CHARCOAL,TRIM1#

main58510-3V050-B0iBU303,343,WU300,340,XZU305,345..RHD..(ARL,GEN,SA)200212-200610

DARK CHARCOAL,TRIM1#

main58510-3V060-B0iBU300,340200212-200312

W(SRS AIR BAG),DARK CHARCOAL,TRIM1#

sub58510-3V050

main58510-F1012iXZU349..5F;XZU309,359..IV8202203-202310

58514CMAT, FROOR, REAR

main58514-0W010-B0iBU303,343,WU300,340,XZU342..IDN200209-200612

DARK CHARCOAL,TRIM1#

main58514-0W020-B0iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

DARK CHARCOAL,TRIM1#

main58514-0W030-B0iWU302,342,352..DCRTP,DCRTR200912

DARK CHARCOAL,TRIM1#

main58514-F1010iXZU349..5F;XZU309,359..IV8202203-202310

58521DMAT, ENGINE SERVICE HOLE COVER

main58521-0W010-B0iBU303,343,WU300,340,XZU342..IDN200209-200612

DARK CHARCOAL,TRIM1#

main58521-0W020-B0iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

DARK CHARCOAL,TRIM1#

main58521-0W040-B0iWU302,342..DCRTP,DCRTR200912-201007

DARK CHARCOAL,TRIM1#

sub58521-0W041

main58521-0W041-B0iWU302,342,352..IDN201008

DARK CHARCOAL,TRIM1#

main58521-F1011iXZU349..5F;XZU309,359..IV8202203-202310

67913PLATE, FRONT DOOR SCUFF, RH

main67913-0W020-B0iBU303,343,WU300,340,XZU342..IDN200209-201706

MD.CHARCOAL,TRIM1#

main67913-0W020-C0iWU302,342201706-201707

BLACK,TRIM1#

main67913-0W030iXZU349..6F;XZU309..IV3201707-202310

main67913-37010-B0iWU30#,34#..GCC,GEN200212-201106

MD.CHARCOAL,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-0W020-B0iWU302,342..DCRTP,DCRTR200209-201706

MD.CHARCOAL,TRIM1#

main67914-0W020-C0iWU302,342201706-201707

BLACK,TRIM1#

main67914-0W030iWU302,342,352201707-202310

main67914-37010-B0iBU300,340200212-201106

MD.CHARCOAL,TRIM1#

9018905163

main90189-05163

9053006001

main90530-06001

9356055020

main93560-55020

8 parts on this diagram · 3 diagrams in section
