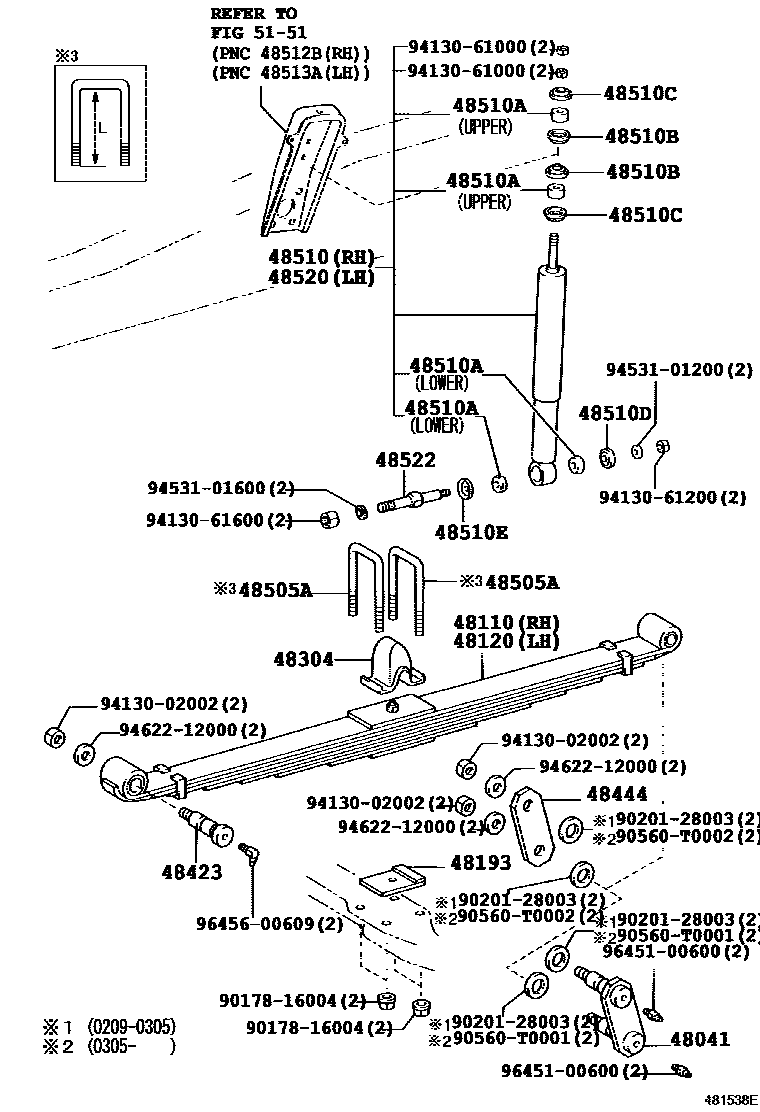

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1W(STABILIZER) 0004 1 0005 1 0006 1W/O(FRONT STABILIZER) 0009 1 0011 1W(FRONT STABILIZER) 0013 13-LEAF 0014 13-LEAF 0015 16-LEAF,TYPE A 0016 16-LEAF,TYPE B 0017 16-LEAF,TYPE C 0018 16-LEAF 0020 16-LEAF 0022 17-LEAF 0025 17-LEAF 0026 18-LEAF 0028 16-LEAF

48041SHACKLE SUB-ASSY, FRONT SPRING, NO.1

main48041-0W010iXZU359..85T;XZU349..5F..IV3200209-202310

main48041-0W020iWU342..75T..DCRTP200912

48110SPRING ASSY, FRONT, RH

main48110-0W010iXZU359..85T;XZU349..5F..IV3200209-202310

7-LEAF

main48110-0W030iBU343,WU340,XZU342..65T..IDN200209-201005

6-LEAF

main48110-0W051iBU303,WU300..T3200209-201005

6-LEAF

main48110-0W190iXZU309,349..ST..IV8..T3200912-202310

6-LEAF

main48110-0W250iWU342..75T..DCRTP200912

6-LEAF

main48110-0W270iWU352..T3;WU342..65T..DCRTP;WU342..75T..DCRTR200912-202310

6-LEAF

main48110-37350iBU303..RHD..ST..TS200212-200610

3-LEAF

sub48110-37351

main48110-37360iWU30#..ST..TS200212-201106

3-LEAF

sub48110-37361

main48110-37452iWU30#,34#..LHD..WT200212-201106

6-LEAF,TYPE A:REFER TO ILLUSTRATION

sub48110-37453

main48110-37462iWU300,340..SA200212-200812

6-LEAF

sub48110-37463

main48110-37462iWU340..RHD..CBU200212-201106

6-LEAF,TYPE A:REFER TO ILLUSTRATION

sub48110-37463

main48110-37472iXZU330..80T;BU303,343,WU300,340,XZU340..LHD..WT200212-200901

6-LEAF,TYPE B:REFER TO ILLUSTRATION

main48110-37482iBU303,343..RHD..WT..GEN200212-200802

6-LEAF,TYPE B:REFER TO ILLUSTRATION

main48110-37491iXZU305,345200212-200610

3-LEAF

main48110-37G90iWU340..RHD..CBU200802-201106

6-LEAF,TYPE C:REFER TO ILLUSTRATION

main48110-37J00iWU30#,34#..LHD..WT200802-201106

6-LEAF,TYPE C:REFER TO ILLUSTRATION

main48110-F1050iWU342..75T..DCRTP201708

7-LEAF

main48110-F1070iXZU349..5F..IV3201708-202310

8-LEAF

main48110-F1090iXZU309,349..BUSC201708-202310

6-LEAF

48120SPRING ASSY, FRONT, LH

main48110-0W020iXZU349..6F200209-202310

7-LEAF

main48110-0W040iWU342..65T..(DCRTH,DCRTJ)..IDN200209-201005

6-LEAF

main48110-0W061iWU302..DCRTH..T3200209-201005

6-LEAF

main48110-0W200iXZU309..IV3200912-202310

6-LEAF

main48110-0W260iWU342..75T..DCRTP200912

6-LEAF

main48110-0W280iXZU349,359..5F..WT..(IV1,IV8)200912-202310

6-LEAF

main48110-37350iWU30#..ST..TS200212-201106

3-LEAF

sub48110-37351

main48110-37360iBU303..RHD..ST..TS200212-200610

3-LEAF

sub48110-37361

main48110-37452iWU300,340..SA200212-200812

6-LEAF

sub48110-37453

main48110-37452iWU340..RHD..CBU200212-201106

6-LEAF,TYPE A:REFER TO ILLUSTRATION

sub48110-37453

main48110-37462iXZU307,327,337..55T,65T200212-201106

6-LEAF,TYPE A:REFER TO ILLUSTRATION

sub48110-37463

main48110-37472iBU303,343..RHD..WT..GEN200212-200802

6-LEAF,TYPE B:REFER TO ILLUSTRATION

main48110-37482iWU30#,34#..LHD..WT200212-200901

6-LEAF,TYPE B:REFER TO ILLUSTRATION

main48110-37501iBU300,340200212-200610

3-LEAF

main48110-37G90iWU30#,34#..LHD..WT200802-201106

6-LEAF,TYPE C:REFER TO ILLUSTRATION

main48110-37J00iWU340..RHD..CBU200802-201106

6-LEAF,TYPE C:REFER TO ILLUSTRATION

main48110-F1060iWU342..75T..DCRTP201708

7-LEAF

main48110-F1080iXZU349..5F..IV3201708-202310

8-LEAF

main48110-F1100iXZU309,349..BUSC201708-202310

6-LEAF

48193WEDGE, CASTER

main48193-36010iBU303,343,WU300,340,XZU342..IDN200209-201005

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-36030iXZU349..6F;XZU309..IV3200209-202310

sub48304-36080

main48304-37040iXZU307,327,337,347200212-201106

48423PIN, FRONT SPRING BRACKET

main48423-0W010iWU342,352..85T;WU342..75T..DCRTP200209-202310

48444PLATE, FRONT SPRING SHACKLE, INNER

main48444-0W010iWU342,352..85T200209-202310

main48444-0W020iWU342..75T..DCRTP200912

48505ABOLT, U(FOR FRONT SPRING)

main90080-11532iXZU309..IV3200209-202310

L=140

main90080-11533iBU343,WU340,XZU342..IDN200209-202310

L=160

main90117-16064iWU300,340..SA200212-201106

L=100,W(PNC 48475)

main90117-16064iWU300,340..SA200212-201106

L=100,W/O(PNC 48475)

main90117-16065iXZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW)200212-201106

L=150,W/O(PNC 48475)

main90117-16065iXZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW)200212-200901

L=150,W(PNC 48475)

main90117-16066iBU300,340200212-200610

L=120,W(PNC 48475)

main90117-16066iXZU305,345200212-201106

L=120

main90117-16071iXZU305,345200212-201106

L=110,W(PNC 48475)

main90117-16071iBU300,340200212-200610

L=110,W/O(PNC 48475)

main90117-16073iXZU330..80T;BU303,343,WU300,340,XZU340..WT..(GCC,GEN,TAIW)200212-200901

L=160,W(PNC 48475)

main90117-16075iWU30#,34#..WT..(GCC,GEN)200212-200802

L=170

main90117-16082iWU30#,34#..WT..(GCC,GEN)200802-201106

L=140

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-09120iBU343,WU340,XZU342..IDN200209-200310

MARK 48511-0W030

main48511-09130iBU303,WU300..T3200209-200310

MARK 48511-0W040

main48511-09160iWU302..DCRTH..T3200310-201005

MARK 48511-0W040

main48511-09170iWU342..(DCRTH,DCRTJ)..IDN200310-201005

MARK 48511-0W030

main48511-09180iXZU359;XZU349..5F..WT200912-202310

MARK 48511-0W030

main48511-09190iXZU309,349..ST..IV8200912-202310

MARK 48511-0W040

main48511-80078iXZU305,345200212-200605

MARK 48511-37070

sub48511-80120

main48511-80079iBU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,SA,TAIW)200212-200605

MARK 48511-37060

sub48511-80119

main48511-80080iBU303,WU300..ST..TS200212-200605

MARK 48511-37140

sub48511-80118

main48511-80118iBU303,WU300..ST..TS200605-200610

MARK 48511-37240

main48511-80119iWU30#,34#..WT..(GCC,GEN)200605-201106

MARK 48511-37220

sub48511-80183

main48511-80120iXZU305,345200605-200610

MARK 48511-37230

main48511-80123iWU30#..ST..TS200610-201106

MARK 48511-37280

48510ACUSHION, FRONT SHOCK ABSORBER

main90385-16007iBU303,343,WU300,340,XZU342..IDN200209-200311

LOWER

main90385-T0006iWU302,342..(DCRTH,DCRTJ)..IDN200311-201005

LOWER

main90948-01003iXZU349..6F;XZU309..IV3200912-202310

main90948-01003iWU302,342..(DCRTH,DCRTJ)..IDN200209-201005

UPPER

main90948-01071iWU300,340..SA200212-201106

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02017iBU303,343,WU300,340,XZU342..IDN200209-200303

main90948-02054iWU300,340..SA200212-201106

main90948-T2001iWU302,342..(DCRTH,DCRTJ)..IDN200303-202310

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02002iXZU349..6F;XZU309..IV3200209-202310

main90948-02009iXZU307,327,337,347200212-201106

48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1

main90948-03003iBU303,343,WU300,340,XZU342..IDN200209-202310

48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

main90948-03004iBU303,343,WU300,340,XZU342..IDN200209-202310

main90948-03011iXZU307,327,337,347200212-201106

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-09120iBU343,WU340,XZU342..IDN200209-200310

MARK 48511-0W030

main48511-09130iBU303,WU300..T3200209-200310

MARK 48511-0W040

main48511-09160iBU303,WU300..T3200310-201005

MARK 48511-0W040

main48511-09170iBU343,WU340,XZU342..IDN200310-201005

MARK 48511-0W030

main48511-09180iWU342,352..WT..(DCRTP,DCRTR)200912-202310

MARK 48511-0W030

main48511-09190iWU302,342..ST..DCRTP200912-202310

MARK 48511-0W040

main48511-80078iXZU305,345200212-200605

MARK 48511-37070

sub48511-80120

main48511-80079iBU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,SA,TAIW)200212-200605

MARK 48511-37060

sub48511-80119

main48511-80080iBU303,WU300..ST..TS200212-200605

MARK 48511-37140

sub48511-80118

main48511-80118iBU303,WU300..ST..TS200605-200610

MARK 48511-37240

main48511-80119iWU30#,34#..WT..(GCC,GEN)200605-201106

MARK 48511-37220

sub48511-80183

main48511-80120iXZU305,345200605-200610

MARK 48511-37230

main48511-80123iWU30#..ST..TS200610-201106

MARK 48511-37280

48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT

main48522-0W010iXZU349..5F;XZU309,359..IV1,IV8200503-202310

main48522-36030iBU303,343,WU300,340,XZU342..IDN200209-200503

main48522-37030iWU300,340..SA200212-201106

5151

9017816004

main90178-16004

9020128003

main90201-28003

90560T0001

main90560-T0001

90560T0002

main90560-T0002

9413002002

main94130-02002

9413061000

main94130-61000

9413061200

main94130-61200

9413061600

main94130-61600

9453101200

main94531-01200

9453101600

main94531-01600

9462212000

main94622-12000

9645100600

main96451-00600

9645600609

main96456-00609

30 parts on this diagram · 19 diagrams in section
