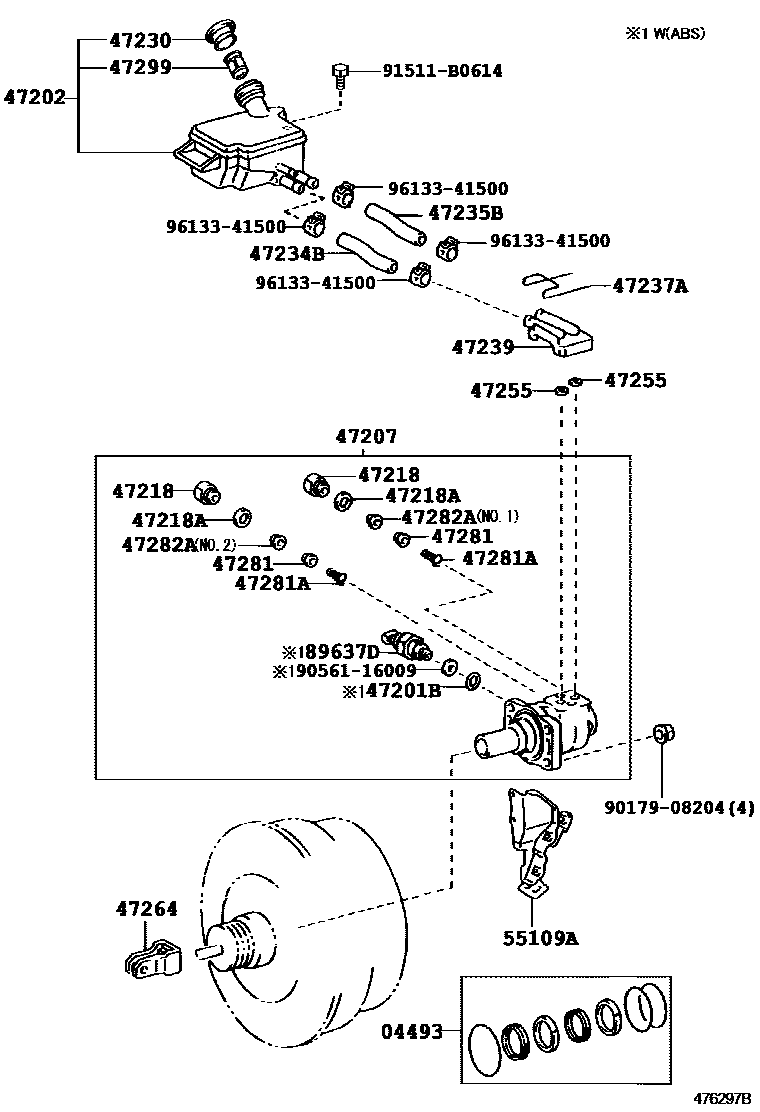

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

04493CYLINDER KIT, BRAKE MASTER

main04493-36210iXZU300,320,330..55T,65T200212-201106

main04493-36221iBU300,340200212-200312

sub04493-36230

main04493-36230iWU300,340..SA200209-201005

main04493-36230iXZU307,327,337..55T,65T200212-201106

W(DISC BRAKE)

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-37380iXZU349..5F;XZU309,359..IV1,IV8202203-202310

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90301-15014iBU300,340200212-200812

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-37051iBU300,340200209-202310

main47220-37071iXZU307,327,337,347200212-201106

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-36021iBU300,340200212-200401

W(ABS & DISC BRAKE)

sub47207-37060

main47207-37020iWU30#,34#..GCC,GEN200308-201106

main47207-37020iBU303,343,WU300,340..GCC,GEN200209-200610

W(DRUM BRAKE)

main47207-37040iBU300,340200212-200401

W(DISC BRAKE)

sub47207-37041

main47207-37041iWU30#..ST..TS200610-201106

W(DISC BRAKE)

main47207-37041iBU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)200401-200610

main47207-37060iWU300,340..SA200802-200812

main47207-37060iXZU305,345200401-200802

W(ABS & DISC BRAKE)

main47207-37070iWU302,342,352..DCRTP,DCRTR200403-201005

main47207-37080iXZU330,340..80T200410-200610

main47207-37081iXZU337,347..80T200610-200901

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-36091iBU300,340200209-201106

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-16013iBU303,343,WU300,340,XZU305,345..ARL,GCC,GEN200209-201106

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-37020iBU300,340200209-202310

47234BTUBE, RESERVOIR, NO.1

main47234-37080iWU302,342..(DCRTH,DCRTJ)..IDN200209-201005

main47234-37090iBU303,343,WU300,340,XZU300,320,330,340..LHD200212-201106

main47234-37140iWU300,340..SA200610-201106

main47234-F1010iXZU349..6F;XZU309..IV3202203-202310

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-37070iBU300,340200209-201005

main47235-37080iXZU307,327,337,347200212-201106

main47235-37130iWU300,340..SA200610-201106

main47235-F1010iXZU349..5F;XZU309,359..IV1,IV8202203-202310

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-36020iWU300,340..SA200209-201106

47239CONNECTOR, BRAKE MASTER CYLINDER RESERVOIR

main47239-37010iBU300,340200209-201106

main47239-37020iBU303,343,WU300,340..LHD200212-201106

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-52010iBU300,340200209-201106

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-50010iBU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW200401-201106

47281VALVE, BRAKE MASTER CYLINDER OUTLET CHECK

main47281-36010iWU300,340..SA200209-201106

47281ASPRING COMPRESSION(FOR OUTLET CHECK VALVE)

main90905-01054iBU300,340200209-201106

47282ASEAT, OUTLET CHECK VALVE, NO.1

main47282-36010iBU300,340200212-201106

W(DISC BRAKE),NO.1

main47282-36010iXZU300,320,330,340200209-201106

NO.1 & NO.2

main47282-36010iWU300,340..SA200802-200812

NO.1

main47282-36020iWU300,340..SA200802-200812

NO.2

main47282-36020iBU300,340200212-201106

W(DISC BRAKE),NO.2

main47282-36020iXZU300,320,330..55T,65T200410-200610

NO.1 & NO.2

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iBU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW200209-202310

55109ASUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55109-37010iBU303,343,WU300,340,XZU342..IDN200209-200712

sub55109-37011

main55109-37011iWU300,340..SA200711-201111

main55109-37040iWU302,342,352201112

89637DSENSOR, OIL PRESSURE

main89637-51010iBU300,340200212-200812

9017908204

main90179-08204

9056116009

main90561-16009

91511B0614

main91511-B0614

9613341500

main96133-41500

24 parts on this diagram · 3 diagrams in section
