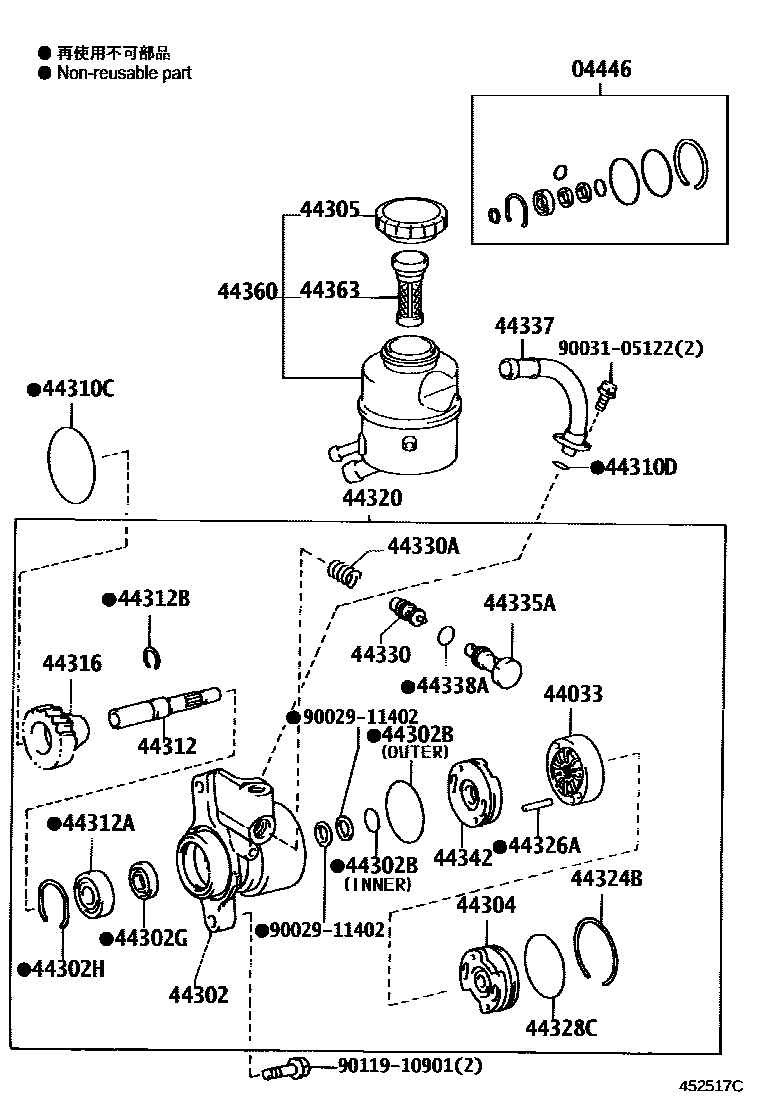

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
44302BRING, O, NO.1(FOR VANE PUMP HOUSING)
INNER
OUTER
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)
44310PUMP ASSY, VANE
44310CRING, O(FOR VANE PUMP)
44310DRING, O(FOR VANE PUMP UNION)
44312SHAFT, VANE PUMP
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44316GEAR, VANE PUMP
44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)
44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)
L=29.1
L=25.8
44328CRING, O(FOR PUMP HOUSING END)
44330VALVE ASSY, FLOW CONTROL
MARK C
MARK C
MARK B
MARK B
MARK A
MARK A
MARK A
MARK B
MARK C
MARK D
MARK D
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44335AORIFICE, FLOW CONTROL VALVE
44337UNION, POWER STEERING SUCTION PORT
44338UNION, PRESSURE PORT
44338ARING, O(FOR PRESSURE PORT UNION)
OD=19.6,ID=15.8
44360RESERVOIR ASSY, VANE PUMP OIL
44363STRAINER, OIL(FOR VANE PUMP)
9002911402
main90029-11402
9003105122
main90031-05122
9011910901
main90119-10901
31 parts on this diagram · 9 diagrams in section
