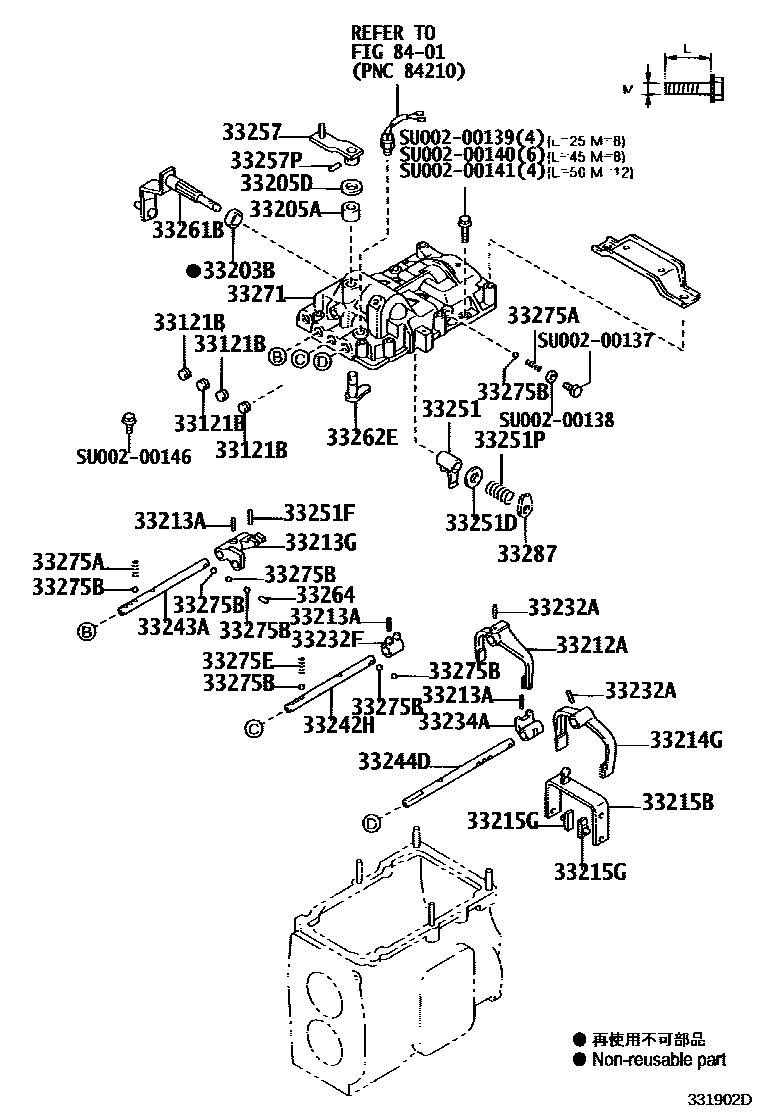

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1MXA5R 0002 1M150,M153 0005 1H350 0006 1M550 0008 1MYY5A 0009 1M153 0011 1M550 0012 1MYY5A 0013 1MYY5A 0014 1RE50 0015 1RE61

33121BPLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)

main96411-41800iXZU300,320,330,340¥110200212-200610

mainSU00200133iXZU342200209-200404

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33203-37020iXZU305,345..T3¥5,300200312-201708

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-22009iWU342..85T¥190200912-201708

TRANSMISSION TYPE=M550

main90311-22009iBU300,340¥190200209-201106

main90311-22021iWU342,352..DCRTR¥200201708-202310

mainSU00200100iXZU342200209-200404

subSU002-01128

mainSU00200263iXZU342200404-200408

mainSU00200355iWU342..85T201410-201612

TRANSMISSION TYPE=MYY5A

mainSU00200355iXZU327,347;XZU337..80T200610-200901

33205SHAFT SUB-ASSY, SELECT LEVER

main33205-37040iWU302,342..GEN¥1,260200312-201708

main33262-36050iWU300,340..SA¥1,740200209-201106

main33262-37020iBU300,340¥1,960200212-200610

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90311-13001iWU302,342,352..DCRTP¥180200209-201106

mainSU00200099iXZU342200209-200404

mainSU00200264iXZU342200404-201612

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main90201-13029iXZU305..T4¥110200209-201708

OD=28

mainSU00200110iXZU342200209-200404

mainSU00200257iXZU342200404-200408

mainSU00200357iXZU327,347;XZU337..80T200610-201612

33212AFORK, GEAR SHIFT, NO.1

main33210-37010iXZU307,337..55T,65T¥10,100200312-200902

sub33210-37020¥6,200

main33210-37020iWU342..85T¥6,200200912-201708

TRANSMISSION TYPE=M550

main33210-37020iWU302,342..GEN¥6,200200902-201106

main33212-36031iWU302,342..DCRTH..T3¥3,450200209-201106

main33212-60050iBU300,340¥3,090200212-200610

mainSU00200125iXZU342200209-200404

mainSU00200240iWU342..85T201410-201612

TRANSMISSION TYPE=MYY5A

mainSU00200240iXZU342200404-200901

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05002iWU342..DCRTR¥90200312-201708

main90254-07003iXZU349..6F;XZU309..IV3¥200201708-202310

mainSU00200107iXZU342200209-200404

33213GFORK, GEAR SHIFT, NO.2

main33213-36050iWU300,340..SA¥2,660200209-201106

main33213-60060iXZU300,320,330,340¥3,790200212-200610

main33220-37010iXZU307,337..55T,65T¥10,900200312-200902

sub33220-37020¥6,600

main33220-37020iWU342..85T¥6,600200912-201708

TRANSMISSION TYPE=MYY5A

main33220-37020iWU342..75T..DCRTR¥6,600200912-201708

TRANSMISSION TYPE=M550

main33220-37020iWU302,342..GEN¥6,600200902-201106

mainSU00200122iXZU342200209-200404

mainSU00200242iXZU342200404-200408

mainSU00200322iXZU327,347;XZU337..80T200610-201612

subSU002-00865¥10,900

33214GFORK, GEAR SHIFT, NO.3

main33214-36060iWU302,342,352..DCRTP¥3,110200209-201106

main33214-36070iWU342..85T¥4,160201309-201608

TRANSMISSION TYPE=M550

sub33214-37040¥2,410

main33214-37020iWU342..DCRTJ..IDN¥4,150200312-201309

sub33214-36070¥4,160

main33214-37040iWU342..DCRTR¥2,410201608-201708

mainSU00200131iXZU342200209-200404

mainSU00200245iXZU342200404-200901

mainSU00200245iWU342..85T201410-201612

TRANSMISSION TYPE=MYY5A

33215BFORK, GEAR SHIFT, NO.4

main33212-37020iBU300,340¥6,600200212-200610

mainSU00200143iXZU342200209-200404

33215GPIECE, SHIFT

mainSU00200144iXZU342200209-200404

33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)

main90254-05016iBU303,343,WU300,340..IDN¥140200209-201106

main90254-07003iXZU349..6F;XZU309..IV3¥200201708-202310

mainSU00200127iXZU327,347;XZU337..80T200209-201612

33232FHEAD, GEAR SHIFT, NO.1

main33232-37030iWU342,352..DCRTR201708-202310

mainSU00200124iXZU342200209-200404

mainSU00200244iWU342..85T200404-201612

33234AHEAD, GEAR SHIFT, NO.3

main33234-36011iWU300,340..GCC,GEN¥930200209-201106

main33234-37020iXZU309..IV3201708-202310

main33234-37030iXZU359..85T¥1,400202203-202310

mainSU00200130iXZU342200209-200404

mainSU00200281iXZU327,347;XZU337..80T200404-201612

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-37050iWU342..DCRTJ..IDN¥2,660200312-201708

main33242-37060iWU342,352..DCRTR201708-201903

sub33242-37061¥3,000

main33242-37061iWU342,352..DCRTR¥3,000201903-202310

33242HSHAFT, GEAR SHIFT FORK, NO.1

main33243-37040iBU300,340¥4,190200212-200610

mainSU00200126iXZU342200209-200404

mainSU00200276iWU342..85T..T3200404-201612

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-37020iWU302,342,352..DCRTP¥3,460200209-201106

main33243-37050iXZU307,337..55T,65T¥3,090200312-200905

main33243-37060iWU342..DCRTJ..IDN¥4,910200905-201106

sub33243-37061¥2,860

main33243-37060iWU342..75T..DCRTR¥4,910200912-201510

TRANSMISSION TYPE=M550

sub33243-37061¥2,860

main33243-37061iWU342..DCRTR¥2,860201511-201708

main33243-37070iWU342,352..DCRTR¥2,100201708-202310

main33244-37040iBU300,340¥4,190200212-200610

mainSU00200123iXZU342200209-200404

mainSU00200280iXZU342200404-200612

mainSU00200323iXZU327,347;XZU337..80T200610-200901

mainSU00200323iWU342..85T201410-201612

TRANSMISSION TYPE=MYY5A

33244DSHAFT, GEAR SHIFT FORK, NO.3

main33244-37020iWU302,342,352..DCRTP¥2,240200209-201106

main33244-37050iXZU305,345¥4,910200312-200512

main33244-37060iXZU305,345¥4,910200512-200902

sub33244-37070¥3,090

main33244-37070iWU342..DCRTJ..IDN¥3,090200902-201708

main33244-37080iWU342,352..DCRTR201708-202310

main33244-37090iXZU349..6F¥2,550202203-202310

mainSU00200132iXZU342200209-200404

33251LEVER, SHIFT & SELECT

main33251-36090iWU340..75T¥3,760200209-201106

main33251-37040iBU300,340¥10,400200212-200610

mainSU00200111iXZU342200209-200404

mainSU00200249iXZU327,347;XZU337..80T200404-201612

33251DWASHER, LOCK (FOR SHIFT & SELECT LEVER)

mainSU00200117iXZU342200209-200404

33251FPIN OR BOLT (FOR SHIFT & SELECT LEVER)

main90254-05016iWU300,340..SA¥140200209-201106

mainSU00200116iXZU342200209-200404

33251PSPRING (FOR SHIFT & SELECT LEVER)

main90501-12185iBU300,340¥100200212-200610

main90501-16090iBU303,343,WU300,340..GCC,GEN¥130200209-201106

LH

main90501-16186iWU342..DCRTR¥120200312-201708

main90501-17048iXZU309..IV3¥120202203-202310

NO.1:REFER ILLUST.

main90501-17048iWU342,352..DCRTR¥120201708

main90501-18121iWU300,340..GCC,GEN¥180200209-201106

RH

main90501-27041iXZU349..6F¥330202203-202310

NO.2:REFER ILLUST.

mainSU00200118iXZU342200209-200404

mainSU00200268iXZU342200404-201612

NO.1

mainSU00200269iWU342..85T200404-201612

NO.2

33257LEVER, SELECT OUTER

main33257-37060iWU300,340..SA¥890200209-201106

main33257-37080iBU300,340¥870200212-200610

main33257-37090iWU342..85T¥1,050200912-201708

TRANSMISSION TYPE=M550

main33257-37090iXZU307,337..55T,65T¥1,050200312-201106

main33257-37130iWU342,352..DCRTR¥2,100201708

main33257-37140iXZU349..6F;XZU309..IV3¥1,940202203-202310

mainSU00200104iXZU342200209-200404

mainSU00200253iXZU342200404-200408

mainSU00200673iXZU327,347;XZU337..80T200610-200901

subSU002-00984¥3,670

mainSU00200984iWU342..85T201410-201612

TRANSMISSION TYPE=MYY5A

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iBU303,343,WU300,340..IDN¥160200209-201106

main33282-35010iWU342..75T..DCRTR¥160200912-201708

TRANSMISSION TYPE=M550

mainSU00200107iXZU342200209-200404

mainSU00200271iXZU342200404-200901

mainSU00200271iWU342..85T201410-201612

TRANSMISSION TYPE=MYY5A

33261BSHAFT, SHIFT LEVER

main33261-37030iBU300,340¥3,080200212-200610

main33261-37040iXZU349..5F;XZU309,359..5F..(IV1,IV8)201708-202310

main33261-37050iXZU359..85T¥2,200202203-202310

mainSU00200112iXZU342200209-200404

33262ESHAFT, SELECT LEVER

main33262-37040iXZU349..5F;XZU309,359..5F..(IV1,IV8)201708-202310

main33262-37050iXZU359..85T¥2,500202203-202310

mainSU00200101iXZU342200209-200404

mainSU00200252iWU342..85T200404-201612

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90250-10011iWU300,340..SA¥100200209-201106

L=13.4,OD=9.53

main90250-10023iBU300,340¥80200212-200610

L=15.45

mainSU00200136iXZU342200209-200404

33271HOUSING, SHIFT LEVER SHAFT

main33207-37030iBU300,340¥9,100200212-200610

mainSU00200097iXZU342200209-200404

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14155iBU300,340¥70200212-200610

L=29.3

main90501-14155iXZU305,345¥70200312-200506

L=29.3,NO.1

main90501-14194iXZU307,337..55T,65T¥80200506-201004

L=31.7,NO.1

main90501-15044iWU342..DCRTR¥100200312-201708

L=115.5,NO.2

main90501-15055iXZU307,337..55T,65T¥120200610-201106

L=90.5,NO.2

main90501-16145iBU303,343,WU300,340..GCC,GEN¥90200209-201106

L=28.8

main90501-17043iXZU309..IV3¥80201708-202310

L=26.6

main90501-17043iWU342..DCRTJ..IDN¥80201004-201708

L=26.6,NO.1

main90501-22075iXZU309..IV3¥140201708-202310

L=76.2

mainSU00200119iXZU342200209-200404

33275BBALL, SHAFT DETENT

main90360-10003iWU300,340..SA¥100200209-201106

mainSU00200134iXZU342200209-200404

33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)

mainSU00200135iXZU342200209-200404

33287LEVER, SWITCH PRESSURE

mainSU00200115iXZU342200209-200404

8401

SU00200137

mainSU002-00137

SU00200138

mainSU002-00138

SU00200139

mainSU002-00139

SU00200140

mainSU002-00140

SU00200141

mainSU002-00141

SU00200146

mainSU002-00146

40 parts on this diagram · 11 diagrams in section
