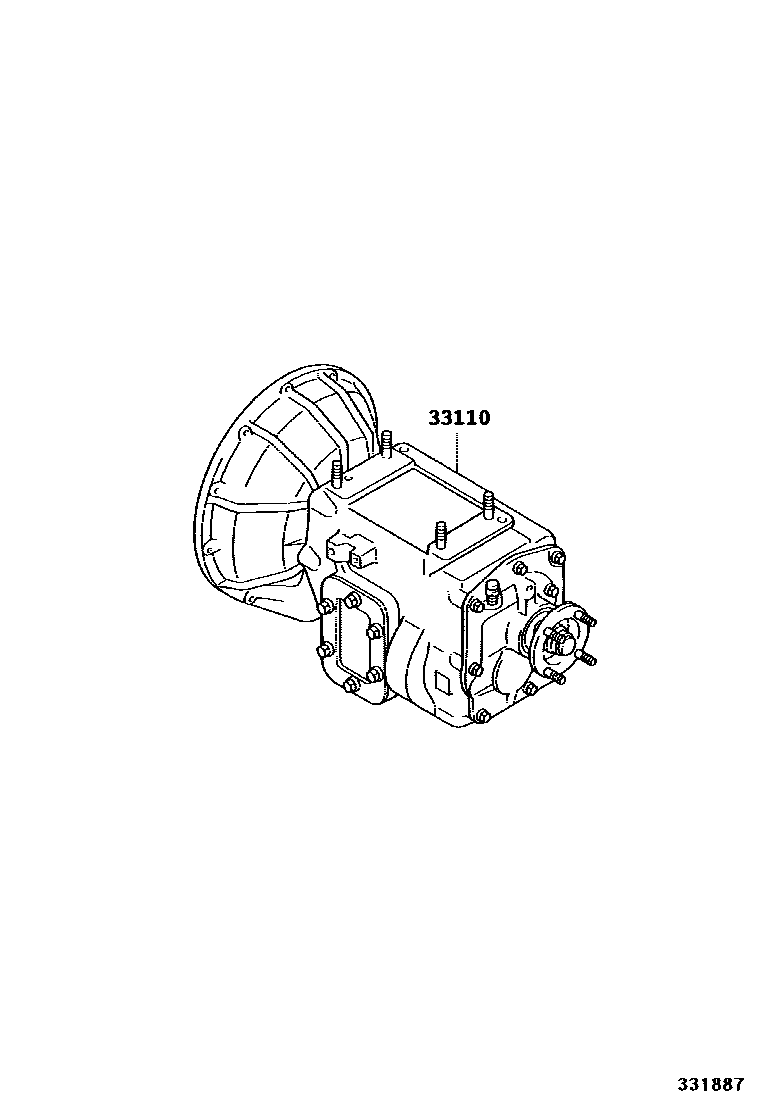

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1MXA5R 0002 1M150,M153 0005 1H350 0006 1M550 0007 1MYY5A 0008 1M153 0010 1M550 0011 1MYY5A 0012 1RE50,RE61

33110TRANSMISSION ASSY, MANUAL

main33110-37860iXZU300200212-200610

H350

main33110-37870iBU300..T4200212-200312

H350

main33110-37A60iXZU305,345200312-200610

M550

sub33110-37A61

sub33110-37G80

main33110-37B50iXZU327,347;XZU337..80T200610-200901

MYY5A

sub33110-37J20

main33110-37D20iXZU342200408-200612

MYY5A

main33110-37D51iXZU307..55T200610-200901

M550

sub33110-37D53

main33110-37D61iXZU307,337..65T200610-200901

M550

sub33110-37D62

main33110-37D80iWU342..65T..DCRTJ..IDN;WU302,342..(48T,55T)..GEN200610-201004

M550

main33110-37D82iWU342..65T..DCRTJ..IDN201004-201005

M550

sub33110-37D83

main33110-37D90iWU302,342..55T;WU342..65T..DCRTJ..IDN200610-201004

M550

main33110-37D92iWU342..75T..DCRTJ201004-201005

M550

sub33110-37D93

main33110-37F60iWU302,342..DCRTH..T3200612-201005

M153

sub33110-37F61

main33110-37F80iWU342..75T..DCRTR200912-201004

M550

main33110-37F82iWU342..75T..DCRTR201004-201207

M550

main33110-37F83iWU342..75T..DCRTR201207-201309

M550

main33110-37F84iWU342..75T..DCRTR201309-201506

M550

main33110-37F85iWU342..75T..DCRTR201506-201606

M550

main33110-37F86iWU342..75T..DCRTR201607-201608

M550

main33110-37F87iWU342..75T..DCRTR201608-201708

M550

sub33110-37F88

main33110-37F90iWU342..85T200912-201004

M550

main33110-37F92iWU342..85T201004-201207

M550

main33110-37F93iWU342..85T201207-201309

M550

main33110-37F94iWU342..85T201309-201506

M550

main33110-37F95iWU342..85T201506-201606

M550

main33110-37F96iWU342..85T201607-201608

M550

main33110-37F97iWU342..85T201608-201708

M550

sub33110-37F98

main33110-37G00iWU342..65T..DCRTP200912-201008

M153

main33110-37G01iWU342..65T..IDN201008

M153

main33110-37G10iWU342..75T..DCRTP200912-201008

M153

main33110-37G11iWU352..DCRTP;WU342..75T..DCRTP201008

M153

main33110-37G20iWU302..DCRTP200912-201008

M153

main33110-37G21iWU302,342..ST..IDN201008

M153

main33110-37L91iWU342,352..75T..DCRTR201708-201903

RE50,AXLE CODE=A01A

main33110-37M01iWU342,352..75T..DCRTR201708-201903

RE50,AXLE CODE=A07A

main33110-37M11iWU342,352..VBODY201708-201903

RE50,AXLE CODE=B11B

main33110-37P40iWU342,352..75T..DCRTR201903

RE50,AXLE CODE=A01A

main33110-37P50iWU342,352..75T..DCRTR201903

RE50,AXLE CODE=A07A

main33110-37P60iWU342,352..VBODY201903

RE50,AXLE CODE=B11B

main33110-37Q90iXZU309..IV3202203

RE50

main33110-37R00iXZU349..WT..DCRTH..IV8202203-202310

RE50

main33110-37R10iXZU349..5F..IV3202203-202310

RE50

main33110-37R30iXZU359..85T202203-202310

RE61,13INCHES DIFFERENTIAL,FINAL GEAR RATIO=5.857

main33110-37R40iXZU349..6F202203

RE61

main33120-37291iXZU342200209-200404

MXA5R

main33120-37310iBU303..T3200209-200612

M153

sub33120-37311

main33120-37320iBU343..IDN200209-200612

M153

sub33120-37321

main33120-37330iWU342..DCRTH200612-201005

M153,W(DRIVEN GEAR N=20)

sub33120-37331

main33120-37340iWU340..75T200209-200612

M153

sub33120-37341

main33120-37361iXZU342200404-200408

MYY5A

main33120-37570iBU303..ST..TS200212-200610

M153

sub33120-37571

main33120-37580iBU303,343..55T200212-200610

M153,W(DRIVEN GEAR N=23)

main33120-37590iWU300,340..GCC200212-200610

M153

main33120-37591iWU300,340..48T,55T201011-201106

M153

main33120-37600iWU340..65T..GEN200610-201011

M153

main33120-37601iWU300,340..55T..GEN201011-201106

M153

main33120-37610iBU303,343..WT..GEN200212-200610

M150,W(DRIVEN GEAR N=25)

main33120-37620iBU303,343..WT..GEN200212-200610

M150,W(DRIVEN GEAR N=22)

1 parts on this diagram · 9 diagrams in section
