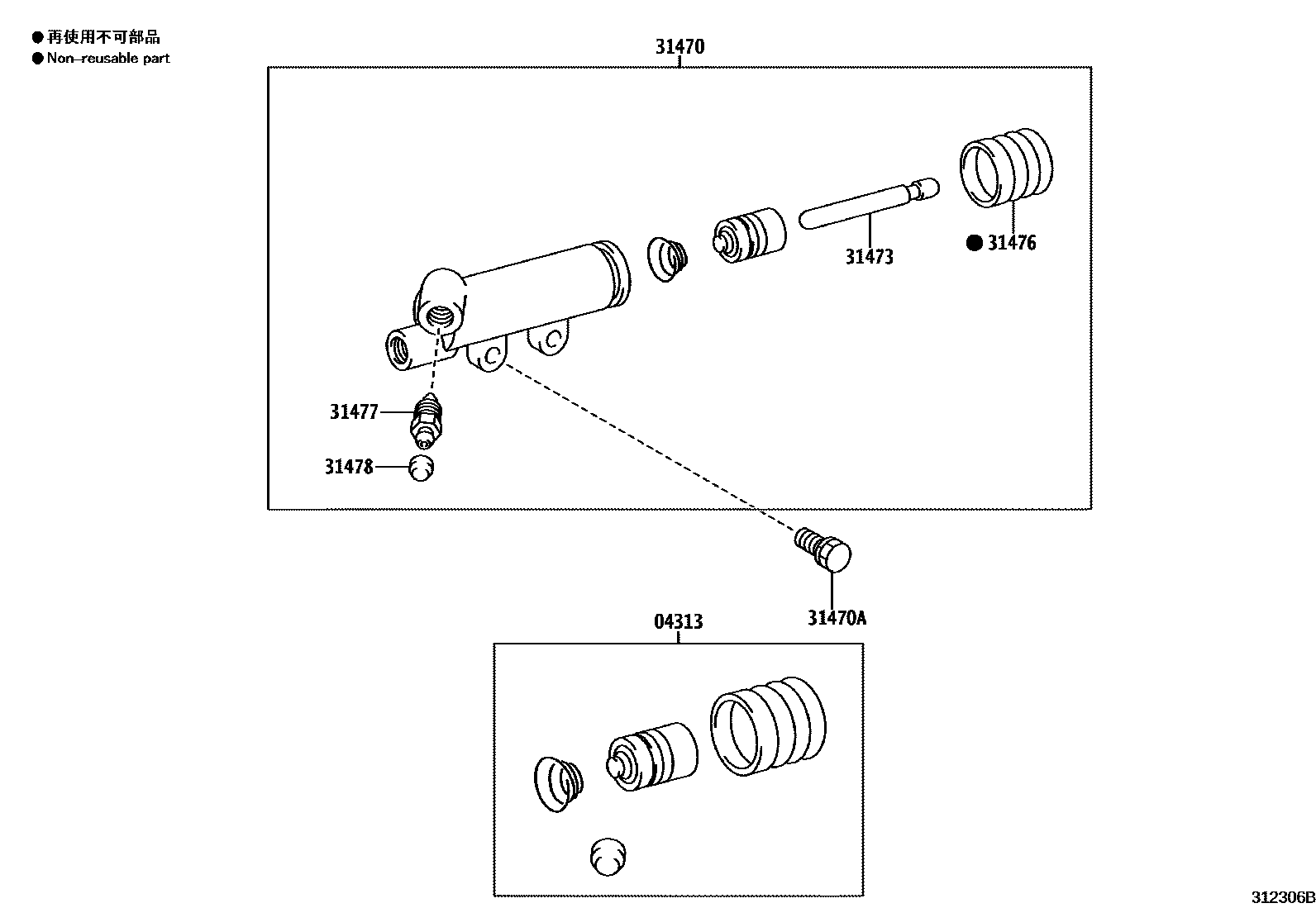

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-36150iBU303,343..GEN200209-200612

main04313-37030iWU300,340,XZU342..IDN200209-201306

main04313-37090iWU302,342201307-201407

main04313-37091iWU302,342,352201407-202310

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-36213iBU303,343..IDN200209-200612

main31470-37050iBU300,340200212-200610

main31470-37080iWU302,342..DCRTP,DCRTR200209-201306

sub31470-37081

main31470-37081iWU302,342201307-201406

main31470-37082iWU302,342,352201407-202310

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825iXZU349..6F;XZU309..IV3200209-202310

*8-1.25PX25-25

main91611-G0820iBU303,343..IDN200209-200612

*8-1.25PX20-20

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iBU303,343..GEN200209-200612

main31473-37030iXZU300,320,330,340200212-200610

main31473-37050iWU300,340,XZU342..IDN200209-202310

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iXZU307,327,337,347200209-202310

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iBU300,340200209-202310

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iBU300,340200209-202310

7 parts on this diagram · 2 diagrams in section
