E
EPC Data

MECHANICAL GOVERNOR

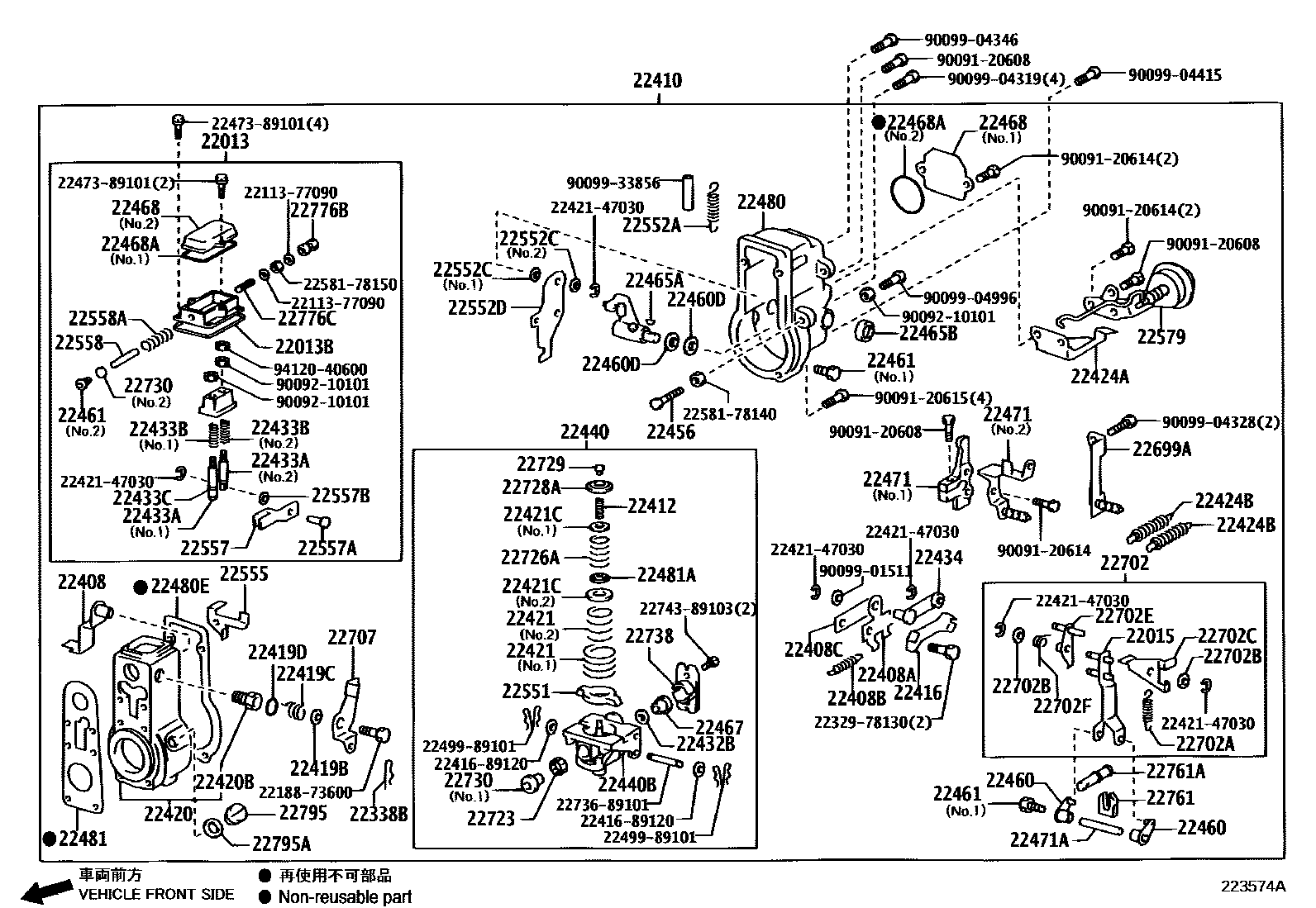

Parts diagram
22013HOUSING SUB-ASSY, FULLROAD STOPPER
main22013-78070i200304-201106
main22306-78281i200209-200612
mainS223702820i200209-200612
22013BRING, O(FOR FULLROAD STOPPER HOUSING)
main90099-14039i200209-200612
sub22442-5C360
mainS228472590i200209-200612
22015LEVER SUB-ASSY, FLOATING
main22015-78031i200209-201106
subS2235-01182
mainS220411450i200209-200612
22338BPIN, LEVER CONECTING
main22338-54410i200209-201106
mainS224561200i200209-200612
sub22338-54410
22408ARM, STOPPER
main22408-89103i200209-200612
subS2230-72720
mainS223072660i200209-200612
22408AARM SUB-ASSY(FOR CONTROL LACK)
main22408-78130i200209-201106
mainS223072650i200209-200612
22408BSPRING, RETURN(FOR ARM)
main22432-78030i200209-201106
mainS223411700i200209-200612
sub22432-78030
22408CNUT, ARM
main22567-78130i200209-201106
mainS223433180i200209-200612
sub22567-78130
22410GOVERNOR ASSY, INJECTION PUMP MECHANICAL
main22410-78281i200209-200612
main22410-78310i200308-200812
subS2231-07110
main22410-89119i200610-201106
W(HIGH ALTITUDE COMPENSATOR)
subS2231-07000
main22410-89119i200304-200308
subS2231-07000
main22410-89120i200212-201106
subS2231-06950
main26310-78010i200610-201106
subS2231-07230
main26310-78020i200610-201106
subS2231-07240
main26310-78030i200807-201106
W(HIGH ALTITUDE COMPENSATOR)
subS2231-07250
main26310-78040i200807-201106
W(HIGH ALTITUDE COMPENSATOR)
subS2231-07260
mainS223106880i200209-200612
22412SPRING, MECHANICAL GOVERNOR
main21864-78500i200912-201503
subS2234-12160
main22412-78030i200209-201106
mainS223412160i200209-200612
sub22412-78030
22416WASHER, GOVERNOR LOCK
main21881-78500i200912-201503
NO.1
subS2287-71990
main21881-78501i200912-201503
NO.2
subS2287-71990
main22416-78130i200209-201106
subS2287-71990
mainS228632450i201107
NO.3
mainS228771880i201503
NO.2
sub22416-58270
mainS228771990i200209-200612
sub22416-78130
mainS228771990i201503
NO.1
sub22416-78130
22419LEVER, STOP
main22419-78500i200912-201503
subS2235-71091
mainS223571091i201503
sub22014-78031
mainS223952150i200209-200612
22419BWASHER, PLATE(FOR STOPPER LEVER)
main90069-34065i200912-201503
T=0.1
subS2288-53430
main90069-34066i200912-201503
T=0.2
subS2288-53440
main90069-34067i200912-201503
T=0.5
subS2288-53450
main90099-01369i200209-200612
T=0.20
main90099-01381i200209-200612
T=0.50,OD=16
main90099-01521i200209-200612
T=0.50
main90099-02315i200209-200612
T=0.10
mainS228853430i200209-200612
T=0.10
sub90099-02315
mainS228853440i200209-200612
T=0.20
sub90099-01369
mainS228853450i200209-200612
T=0.50
sub90099-01381
mainS228855220i201503
T=0.5
22419CSPRING, RETURN(FOR STOPPER LEVER)
main22432-78050i200209-201106
mainS223415120i200209-200612
22419DRING, O(FOR STOPPER LEVER)
main90099-14005i200209-201106
mainS228171440i200209-200612
sub90099-14005
22420HOUSING SUB-ASSY, MECHANICAL GOVERNOR
main22017-78030i200209-200612
mainS223011840i200209-200612
22420BBUSH, MECHANICAL GOVERNOR HOUSING
main22196-73600i200209-200612
mainS223221180i200209-200612
22421SPRING, IDLING
main22768-78031i200209-201106
NO.1
main22768-78033i200209-201106
NO.2
mainS224112880i200209-200612
NO.1
mainS224121280i200209-200612
NO.2
22421CWASHER, IDLING SPRING
main22416-78050i200209-201106
T=1.00,NO.2
subS2287-71890
main22416-78051i200209-201106
T=1.00,NO.1
subS2287-71900
main22416-89101i200209-201106
T=0.30,NO.1
subS2287-72250
main22416-89102i200209-201106
T=0.20,NO.1
subS2287-72260
main22737-78030i200209-201106
T=0.20,NO.2
subS2287-71270
main22737-78031i200209-201106
T=0.40,NO.2
subS2287-71280
main22737-78032i200209-201106
T=0.60,NO.2
subS2287-71290
main22737-78033i200209-201106
T=0.40,NO.1
subS2287-71300
main22737-78034i200209-201106
T=0.60,NO.1
main90069-34040i200912-201503
T=0.2,NO.1
subS2286-32090
main90069-34041i200912-201503
T=0.3,NO.1
subS2286-32100
main90069-34042i200912-201503
T=0.6,NO.1
subS2286-32110
main90069-34043i200912-201503
T=1.0,NO.1
subS2286-32120
main90069-34044i200912-201503
T=0.2,NO.2
subS2286-32050
main90069-34045i200912-201503
T=0.3,NO.2
subS2286-32060
main90069-34046i200912-201503
T=0.6,NO.2
subS2286-32070
main90069-34047i200912-201503
T=1.0,NO.2
subS2286-32080
main90069-34048i200912-201503
T=0.2,NO.3
subS2286-32010
main90069-34049i200912-201503
T=0.3,NO.3
subS2286-32020
main90069-34050i200912-201503
T=0.6,NO.3
subS2286-32030
main90069-34051i200912-201503
T=1.0,NO.3
subS2286-32040
main90069-34052i200912-201503
T=0.2,NO.4
subS2286-31970
main90069-34053i200912-201503
T=0.3,NO.4
subS2286-31980
main90069-34054i200912-201503
T=0.6,NO.4
subS2286-32000
main90069-34055i200912-201503
T=1.0,NO.4
subS2286-32000
mainS228631970i200209-200612
T=0.20,NO.4
mainS228631980i200209-200612
T=0.30,NO.4
mainS228631990i200209-200612
T=0.60,NO.4
mainS228632000i200209-200612
T=1.00,NO.4
mainS228632010i200209-200612
T=0.20,NO.3
mainS228632020i200209-200612
T=0.30,NO.3
mainS228632030i200209-200612
T=0.60,NO.3
mainS228632040i200209-200612
T=1.00,NO.3
mainS228632050i200209-200612
T=0.20,NO.2
mainS228632060i200209-200612
T=0.30,NO.2
mainS228632070i200209-200612
T=0.60,NO.2
mainS228632080i200209-200612
T=1.00,NO.2
mainS228632090i200209-200612
T=0.20,NO.1
mainS228632100i200209-200612
T=0.30,NO.1
mainS228632110i200209-200612
T=0.60,NO.1
mainS228632120i200209-200612
T=1.00,NO.1
22424AARM, SPRING
main22424-78080i200209-201106
mainS223437340i200209-200612
22424BSPRING, RETURN(FOR SPRING ARM)
main22432-89102i200209-201106
subS2234-15100
mainS223413470i200209-200612
22432BSHIM
main22713-58230i200209-201106
T=1.60
main22713-58231i200209-201106
T=1.65
main22713-58232i200209-201106
T=1.70
main22713-58233i200209-201106
T=1.75
main22713-58234i200209-201106
T=1.80
main22713-58235i200209-201106
T=1.85
main22713-58236i200209-201106
T=1.90
main22713-58237i200209-201106
T=1.95
main22713-58238i200209-201106
T=2.00
main22713-58239i200209-201106
T=2.10
main22714-58230i200209-201106
T=2.20
main22714-58231i200209-201106
T=2.30
main22714-89101i200209-201106
T=2.05
subS2288-55950
main22714-89102i200209-201106
T=2.15
subS2288-55960
main22714-89103i200209-201106
T=2.25
subS2288-55970
main90069-55017i200912-201503
T=1.6
subS2288-52450
main90069-55018i200912-201503
T=1.65
subS2288-52460
main90069-55019i200912-201503
T=1.7
subS2288-52470
main90069-55020i200912-201503
T=1.75
subS2288-52480
main90069-55021i200912-201503
T=1.8
subS2288-52490
main90069-55022i200912-201503
T=1.85
subS2288-52500
main90069-55023i200912-201503
T=1.9
subS2288-52510
main90069-55024i200912-201503
T=1.95
subS2288-52520
main90069-55025i200912-201503
T=2.0
subS2288-52530
main90069-55026i200912-201503
T=2.1
subS2288-52540
main90069-55027i200912-201503
T=2.2
subS2288-52550
main90069-55028i200912-201503
T=2.3
subS2288-52560
main90069-55029i200912-201503
T=2.05
subS2288-55950
main90069-55030i200912-201503
T=2.15
subS2288-55960
main90069-55031i200912-201503
T=2.25
subS2288-55970
mainS228852450i200209-200612
T=1.60
sub22713-58230
mainS228852460i200209-200612
T=1.65
sub22713-58231
mainS228852470i200209-200612
T=1.70
sub22713-58232
mainS228852480i200209-200612
T=1.75
sub22713-58233
mainS228852490i200209-200612
T=1.80
sub22713-58234
mainS228852500i200209-200612
T=1.85
sub22713-58235
mainS228852510i200209-200612
T=1.90
sub22713-58236
mainS228852520i200209-200612
T=1.95
sub22713-58237
mainS228852530i200209-200612
T=2.00
sub22713-58238
mainS228852540i200209-200612
T=2.10
sub22713-58239
mainS228852550i200209-200612
T=2.20
mainS228852560i200209-200612
T=2.30
mainS228855950i200209-200612
T=2.05
mainS228855960i200209-200612
T=2.15
mainS228855970i200209-200612
T=2.25
22433ASCREW, ADAPTER(FOR SLIDING BLOCK)
main22433-58270i200304-201106
NO.1
main22433-78031i200209-200612
NO.1
main22433-89101i200209-201106
NO.2
subS2238-52590
mainS223852970i200209-200612
NO.1
mainS223853120i200209-200612
NO.2
22433BSPRING(FOR ADAPTER SCREW)
main22411-58270i200304-201106
NO.1
main22411-58270i200802-200812
NO.2
main22411-78030i200304-201106
NO.2
main22411-78030i200209-200812
NO.1
main22411-78032i200209-200612
NO.2
mainS223213930i200209-200612
NO.2
mainS223213940i200209-200612
NO.1
22433CBUSH(FOR ADAPTER SCREW)
main22554-78030i200209-201106
mainS223221701i200209-200612
sub22554-78030
22434SHACKLE
main22016-78031i200209-201106
subS2204-51110
mainS220451110i200209-200612
22440FLYWEIGHT SUB-ASSY
main22720-78050i200209-201106
mainS223602310i200209-200612
22440BFLYWEIGHT SUB-ASSY
main22720-89102i200209-201106
subS2230-41650
mainS223041780i200209-200612
22456SCREW, STOP
main22443-68150i200209-201106
main22443-89101i200308-200812
subS2286-51360
22460LEVER SUB-ASSY, SUPPORT
main22470-89102i200209-201106
subS2235-02340
mainS223502340i200209-200612
22460DWASHER, LOCK(FOR STEERING LEVER)
main22416-78030i200209-201106
T=0.75
subS2287-71450
main22416-78031i200209-201106
T=0.80
subS2287-71460
main22737-78035i200209-201106
T=0.50
subS2287-71400
main22737-78036i200209-201106
T=0.55
subS2287-71410
main22737-78037i200209-201106
T=0.60
subS2287-71420
main22737-78038i200209-201106
T=0.65
subS2287-71430
main22737-78039i200209-201106
T=0.70
subS2287-71440
main90069-34074i200912-201503
T=0.5
subS2287-71400
main90069-34075i200912-201503
T=0.55
subS2287-71410
main90069-34076i200912-201503
T=0.6
subS2287-71420
main90069-34077i200912-201503
T=0.65
subS2287-71430
main90069-34078i200912-201503
T=0.7
subS2287-71440
main90069-34079i200912-201503
T=0.75
subS2287-71450
main90069-34080i200912-201503
T=0.8
subS2287-71460
mainS228771400i200209-200612
T=0.50
sub22737-78035
mainS228771410i200209-200612
T=0.55
sub22737-78036
mainS228771420i200209-200612
T=0.60
sub22737-78037
mainS228771430i200209-200612
T=0.65
sub22737-78038
mainS228771440i200209-200612
T=0.70
sub22737-78039
mainS228771450i200209-200612
T=0.75
sub22416-78030
mainS228771460i200209-200612
T=0.80
sub22416-78031
22461PLUG, SCREW
main22446-78030i200209-201106
NO.1
main22477-89101i200209-201106
NO.2
subS2284-51480
main23422-78500i200912-201503
subS2284-51250
mainS228451250i200209-200612
NO.2
sub22446-78030
mainS228451250i201503
sub22446-78030
mainS228451480i200209-200612
NO.1
22465LEVER SUB-ASSY, ADJUSTING
mainS224052351i200209-200612
22465AKEY, WOODRUFF(FOR ADJUSTING LEVER)
main22353-78501i200912-201503
subS2289-11060
main90099-13013i200209-201106
mainS228911060i200209-200612
sub90099-13013
22465BSEAL, OIL(FOR ADJUSTING LEVER)
main23129-78500i200912-201503
subS2282-71750
main90099-15036i200209-201106
mainS228271530i200209-200612
sub90099-15036
22467NUT, ROUND
main22722-78500i200912-201503
subS2253-51120
main22722-89101i200209-201106
subS2235-31150
mainS225351120i200209-200612
22468COVER, PLATE
main21593-78500i200912-201503
subS2238-61390
main22458-78030i200209-200802
NO.1
main22458-78030i200610-201106
main22458-78140i200209-200612
NO.2
mainS223861390i200209-200612
NO.2
sub22458-78030
mainS223861390i201503
sub22458-78030
mainS223862010i200209-200612
NO.1
22468AO, RING
main22442-89101i200209-200612
NO.1
main90069-38014i200912-201503
NO.1
subS2281-71440
main90069-38015i200912-201503
NO.2
subS2284-71540
main90099-14069i200209-201106
NO.2
main90099-14073i200304-201106
NO.1
mainS228171440i201503
NO.1
sub90099-14005
mainS228471540i200209-200612
sub90099-14069
mainS228471540i201503
NO.2
sub90099-14069
22471LEVER SUB-ASSY, GUIDE
main22470-89101i200209-201106
NO.1
main22701-89101i200209-201106
NO.2
mainS224153101i200209-200612
NO.2
mainS224153110i200209-200612
NO.1
22471ASHAFT, LEVER SUPPORTING
main22558-78031i200209-201106
mainS223581410i200209-200612
sub22558-78031
22480COVER SUB-ASSY, GOVERNOR
main22790-5C350i200304-201106
main22790-78500i200912-201503
sub22790-EV010
main22790-89102i200209-200612
subS2238-02410
main22790-EV010i201503
mainS223802410i200209-200612
22480EGASKET, GOVERNOR COVER
main22774-78140i200209-200612
mainS228472620i200209-200612
22481GASKET
main22442-58260i200209-201106
mainS228472510i200209-200612
22481ASEAT, SPRING, INNER
main22481-58230i200209-201106
mainS223512010i200209-200612
22551SEAT, SPRING(FOR FLYWEIGHT)
main22551-78030i200209-201106
mainS223511810i200209-200612
22552ASPRING, RETURN(FOR CAM PLATE)
main22432-78031i200209-201106
mainS223411710i200209-200612
sub22432-78031
22552CWASHER(FOR CAM PLATE BUSH)
main22416-58270i200209-201106
NO.1
main22416-78032i200209-201106
T=0.2,NO.2
subS2287-71360
main22416-78033i200209-201106
T=0.3,NO.2
subS2287-71370
main22416-78034i200209-201106
T=0.4,NO.2
subS2287-71380
main22416-78035i200209-201106
T=0.5,NO.2
subS2287-71390
main90069-34068i200912-201503
T=0.2
subS2287-71360
main90069-34069i200912-201503
T=0.3
subS2287-71370
main90069-34070i200912-201503
T=0.4
subS2287-71380
main90069-34071i200912-201503
T=0.5
subS2288-55220
mainS228771360i200209-200612
T=0.2,NO.2
sub22416-78032
mainS228771360i201503
T=0.2
sub22416-78032
mainS228771370i201503
T=0.3
sub22416-78033
mainS228771370i200209-200612
T=0.3,NO.2
sub22416-78033
mainS228771380i201503
T=0.4
sub22416-78034
mainS228771380i200209-200612
T=0.4,NO.2
sub22416-78034
mainS228771390i201503
T=0.5
sub22416-78035
mainS228771390i200209-200612
T=0.5,NO.2
sub22416-78035
mainS228771880i200209-200612
NO.1
sub22416-58270
22552DPLATE, CAM
main22552-78031i200209-201106
main26331-78500i200912-201503
subS2236-95110
mainS223694130i200209-200612
mainS223695110i201503
22555BRACKET, STOPPER
main22555-78030i200209-201106
mainS223435550i200209-200612
22557CAM, FULL STOP
main22557-78281i200209-200812
subS2236-92651
mainS223694810i200209-200612
22557APIN, CONNECTING(FOR FULL STOP CAM)
main22423-78030i200209-201106
main22423-78500i200912-201503
subS2245-51230
mainS224551230i200209-200612
sub22423-78030
22557BWASHER, PLATE(FOR CONNECTING PIN)
main90069-34062i200912-201503
T=0.1
subS2288-51440
main90069-34063i200912-201503
T=0.05
subS2288-51930
main90069-34064i200912-201503
T=0.2
subS2288-51450
main90099-01334i200209-201106
T=0.05
main90099-01540i200209-201106
T=0.10
main90099-01541i200209-201106
T=0.20
mainS228851440i200209-200612
T=0.10
sub90099-01540
mainS228851450i200209-200612
T=0.20
sub90099-01541
mainS228851930i200209-200612
T=0.05
sub90099-01334
22558SHAFT, SLIDING BLOCK
main22558-78030i200209-201106
mainS223381070i200209-200612
sub22558-78030
22558ASPRING(FOR SLIDING BLOCK SHAFT)
main22411-58271i200304-201106
main22411-78031i200209-200612
mainS224112810i200209-200612
22579ACTUATOR, FUEL CUT
main22579-89101i200209-201106
subS2247-01270
22699ABRACKET, ADJUSTING
main22456-89102i200209-201106
mainS223437370i200209-200612
22702LEVER ASSY, FLOATING
main22702-78030i200209-201106
main22702-78500i200912-201503
subS2204-11440
mainS220411440i200209-200612
22702ASPRING, FLOATING ARM
main22432-78032i200209-201106
mainS223415100i200209-200612
22702BWASHER, PLATE(FOR FLOATING LEVER)
main22789-89101i200304-201106
T=0.30,NO.1
subS2288-51270
main22789-89101i200209-200612
T=0.30
subS2288-51270
main22789-89102i200304-201106
T=0.50,NO.2
subS2288-57660
main90069-34056i200912-201503
T=0.2
subS2288-51030
main90069-34057i200912-201503
T=0.05
subS2288-51930
main90069-34058i200912-201503
T=0.1
subS2288-51920
main90069-34059i200912-201503
T=0.3
subS2288-51270
main90069-34060i200912-201503
T=0.4
subS2288-51280
main90099-01334i200304-201106
T=0.05,NO.1
main90099-01334i200209-200612
T=0.05
main90099-01505i200209-200612
T=0.10
main90099-01505i200304-201106
T=0.10,NO.1
main90099-01519i200304-201106
T=0.40,NO.1
main90099-01519i200209-200612
T=0.40
main90099-30610i200304-201106
T=0.20,NO.1
main90099-30610i200209-200612
T=0.20
mainS228851030i200209-200612
T=0.20
sub90099-30610
mainS228851270i200209-200612
T=0.30
mainS228851280i200209-200612
T=0.40
sub90099-01519
mainS228851920i200209-200612
T=0.10
sub90099-01505
mainS228851930i200209-200612
T=0.05
sub90099-01334
22702CARM, FLOATING
main22014-78031i200209-201106
mainS223571091i200209-200612
sub22014-78031
22702ELEVER SUB-ASSY, CONTROL
main22490-78030i200209-201106
mainS223502530i200209-200612
22702FSPRING, RETURN(FOR CONTROL LEVER)
main22432-78033i200209-201106
main22432-78500i200912-201503
NO.1
subS2234-11700
main22432-78501i200912-201503
NO.2
subS2234-12180
mainS223411700i201503
NO.1
sub22432-78030
mainS223412180i201503
NO.2
mainS223415110i200209-200612
22707LEVER, STOP
main22707-78080i200209-200612
mainS223484660i200209-200612
22723DAMPER, FLYWEIGHT HOLDER
main22723-68150i200209-201106
mainS223851900i200209-200612
22726ASPRING, SPEED CONTROL
main22726-78030i200209-201106
22728AGUIDE, SPRING
main22728-78031i200209-201106
main22728-78500i200912-201503
subS2238-53110
mainS223853110i200209-200612
22729NUT, ADJUSTING(FOR FLYWEIGHT)
main22729-89101i200209-201106
subS2282-52310
mainS228252310i200209-200612
22730BUSHING ASSY, CAMSHAFT
main22460-89110i200209-200612
L=5.0,NO.2
main22460-89111i200209-200612
L=6.0,NO.2
main22730-58230i200209-201106
NO.1
main22730-78500i200912-201503
subS2232-22380
main22731-89102i200304-201106
NO.2
subS2232-22490
main22731-89103i200209-200612
L=3.0,NO.2
main22731-89104i200209-200612
L=4.0,NO.2
main22731-89105i200209-200612
L=5.8,NO.2
main22731-89106i200209-200612
L=2.5,NO.2
mainS223222380i200209-200612
22738BUSHING, GUIDE(FOR FLYWEIGHT)
main22738-78030i200209-201106
main22738-78500i200912-201503
subS2232-22230
mainS223222230i200209-200612
22761SLIDER(FOR SPEED CONTROL)
main22761-78031i200209-201106
main22761-78500i200912-201503
subS2234-91131
mainS223491131i200209-200612
sub22761-78031
22761ASHAFT, SLIDING WEIGHT
main22752-78030i200209-201106
L=31.9
main22752-78031i200209-201106
L=31.7
main22752-78032i200209-201106
L=31.5
main22752-78033i200209-201106
L=31.3
main22752-78034i200209-201106
L=31.1
main22752-78035i200209-201106
L=30.9
main22752-78036i200209-201106
L=30.7
main22752-89106i200209-201106
L=32.0
subS2231-81380
main22752-89107i200209-201106
L=32.1
subS2231-81390
mainS223181250i200209-200612
L=34.54
mainS223181260i200209-200612
L=34.34
mainS223181270i200209-200612
L=34.14
mainS223181280i200209-200612
L=33.94
mainS223181290i200209-200612
L=33.74
mainS223181300i200209-200612
L=33.54
mainS223181310i200209-200612
L=33.34
mainS223181450i200209-200612
L=34.74
22776BNUT, CAP(FOR SCREW STOPPER)
main22437-78140i200209-200612
main22437-89101i200304-201106
subS2234-21820
mainS223421820i200209-200612
22776CSCREW, STOPPER
main22419-89104i200304-201106
subS2239-52140
main22776-89101i200209-200612
subS2236-92190
mainS223952140i200209-200612
22795PLUG, SCREW
main22795-77121i200209-201106
main90069-39016i200912-201503
subS2284-51490
mainS228451490i200209-200612
22795AWASHER, SCREW PLUG
main22561-78030i200209-201106
main22774-78501i200912-201503
subS2284-72620
mainS228472400i200209-200612
mainS228472620i201503
2211377090
main22113-77090
2218873600
main22188-73600
2232978130BOLT, DIAPHRAGM CONNECTING
main22329-78130
2241689120WASHER, GOVERNOR LOCK
main22416-89120
2242147030SPRING, IDLING
main22421-47030
2247389101WASHER, SPRING
main22473-89101
2249989101
main22499-89101
2258178140
main22581-78140
2258178150
main22581-78150
2273689101BOLT, BELLCRANK
main22736-89101
2274389103
main22743-89103
9009120608
main90091-20608
9009120614
main90091-20614
9009120615
main90091-20615
9009210101
main90092-10101
9009901511
main90099-01511
9009904319
main90099-04319
9009904328
main90099-04328
9009904346
main90099-04346
9009904415
main90099-04415
9009904996
main90099-04996
9009933856
main90099-33856
9412040600
main94120-40600

98 parts on this diagram · 10 diagrams in section

MECHANICAL GOVERNOR — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
