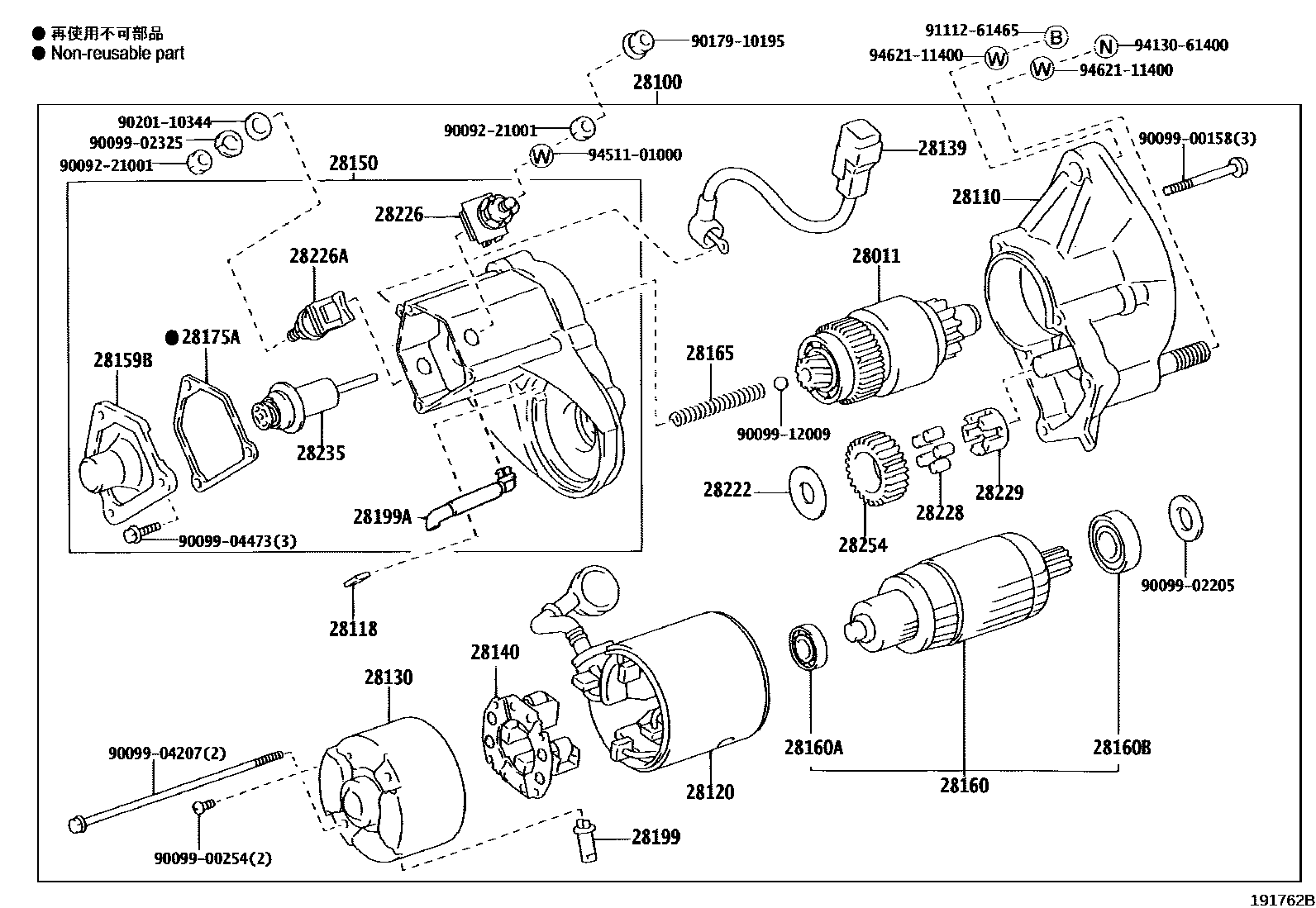

STARTER

0001 124V 4.5KW 0002 124V 4.5KW 0003 124V 4.5KW 0006 124V 4.5KW 0008 124V 4.5KW 0009 124V 4.5KW 0010 124V 5.0KW 0011 112V 2.5KW 0012 112V 2.5KW 0013 112V 2.7KW

28011CLUTCH SUB-ASSY, STARTER

main28011-54010iW04D..WU302,342..GEN200209-201310

main28011-78061iS05C..XZU342200311-200612

sub28011-78062

main28011-78090iW04D..WU300,340..IDN200209-201106

sub28011-78091

main28011-78110iN04C..XZU305,345200312-200506

sub28011-78111

sub28250-78111

main28011-78111iN04C..XZU307,327,337,347200506-200901

sub28011-78112

28100STARTER ASSY

main28100-56321i14B,15BFTE..BU303,343,XZU300,320,330,340..GEN,TAIW200209-200612

24V 4.5KW

sub28100-56332

main28100-78062iS05C..XZU342200209-200311

24V 4.5KW

sub28100-78063

main28100-78063iS05C..XZU342200311-200612

24V 4.5KW

main28100-78090iW04D..WU300,340..GCC200209-201106

24V 4.5KW

main28100-78100iW04D..WU302,342..(DCRTH,DCRTJ)..IDN200612-201005

24V 4.5KW

main28100-78110iN04C..XZU305,345200312-200505

24V 5.0KW

sub28100-78111

main28100-78111iN04C..XZU305,345200506-200507

24V 5.0KW

sub28100-78112

main28100-78112iN04C..XZU305,345200507-200610

24V 5.0KW

sub28100-78113

main28100-78113iN04C..XZU307,327,337,347200610-200901

24V 5.0KW

sub28100-78114

main28100-78140iW04D..WU302,342..DCRTP,DCRTR200912-201310

12V 2.5KW

sub28100-78220

sub23239-78030

sub90464-00748

subSN231-02401

main28100-78160iW04D..WU302,342..GEN200610-201106

24V 4.5KW

main28100-78220iW04D..WU302,342,352201310

12V 2.5KW

main28100-78260iN04C..XZU349..5F;N04C..XZU309,359..IV1,IV8202203-202310

12V 2.7KW

28110HOUSING ASSY, STARTER DRIVE

main28110-56151i15BFTE..BU300,340200209-200612

main28110-78160iW04D..WU302,342..GEN200610-201106

main28115-78060iS05C..XZU342200209-200612

subS2811-52080

main28115-78090iW04D..WU300,340..GCC200209-200802

28118PLATE(FOR STARTER YOKE)

main28118-77090i15BFTE..BU300,340200209-200612

main28118-78080iW04D..WU300,340..IDN200209-200802

subS2811-81480

28120YOKE ASSY, STARTER

main28120-56221iW04D..WU302,342..(DCRTH,DCRTJ)..IDN200209-201106

main28120-78060iS05C..XZU342200209-200602

subS2812-01801

main28120-78080iS05C..XZU342200602-200612

main28120-78090iW04D..WU300,340..SA200209-201106

main28120-78110iN04C..XZU305,345200312-200901

sub28120-78111

main28120-78140iW04D..WU302,342..DCRTP,DCRTR200912-201310

subS2812-01960

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-56260iW04D..WU302,342..GEN200209-201106

main28133-78060iS05C..XZU342200209-200612

sub28133-78061

main28133-78090iW04D..WU300,340..SA200209-200802

main28133-78110iN04C..XZU305,345200312-200506

sub28130-78110

28139WIRE, LEAD, NO.1(FOR STARTER)

main28139-56310i14B..BU303,343..IDN200209-200612

main28139-78100iW04D..WU302,342..GEN200610-201106

main28139-89104iS05C..XZU342200311-200612

subS2817-11121

28140HOLDER ASSY, STARTER BRUSH

main28140-77090iW04D..WU302,342..DCRTP,DCRTR200209-201310

main28140-78060iW04D..WU300,340..SA200209-201106

subS2814-01600

main28140-78080iS05C..XZU342200602-200612

main28140-78110iN04C..XZU305,345200312-200901

28150SWITCH ASSY, MAGNET STARTER

main28150-56320i14B..BU303,343..IDN200209-200612

main28150-78061iS05C..XZU342200311-200612

subS2815-02244

main28150-78090iW04D..WU300,340..GCC,GEN200209-201106

main28150-78100iW04D..WU302,342..GEN200610-201106

main28150-78140iW04D..WU302,342..DCRTP,DCRTR200912-201310

subS2815-02650

28159BCOVER, MAGNET SWITCH

main28159-56310i15BFTE..BU300,340200209-200612

28160ARMATURE ASSY, STARTER

main28160-54140iW04D..WU302,342..DCRTP,DCRTR200912-201310

main28160-56140iW04D..WU302,342..IDN200612-200907

main28160-77090i14B..BU303,343..IDN200209-201106

main28160-78060iW04D..WU300,340..SA200209-201106

subS2816-01690

main28160-78110iN04C..XZU307,327,337,347200312-200901

sub28160-78111

28160ABEARING, STARTER ARMATURE

main28252-78060iS05C,W04D..WU300,340,XZU342..IDN200209-200802

subS2825-21990

main90099-10107iW04D..WU302,342..GEN200209-201106

28160BBEARING, STARTER ARMATURE, NO.2

main90099-10119i14B..BU303,343..IDN200209-201106

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-77090i15BFTE..BU300,340200209-201106

28175AGASKET, MAGNET SWITCH COVER

main28175-56310i14B..BU303,343..IDN200209-200612

28199COVER, STARTER

main28199-46080i14B..BU303,343..IDN200209-200612

main28199-78070iW04D..WU300,340..SA200209-200802

subS2817-91011

28199APROTECTOR, DUST STARTER

main28199-46080iW04D..WU302,342..GEN200610-201106

main28199-58020i14B..BU303,343..IDN200209-200612

main28199-78060iW04D..WU300,340..GCC200209-200802

subS2819-91040

main28199-78110iN04C..XZU307,327,337,347200312-200901

subS2819-91100

28222WASHER, STARTER IDLE GEAR CLUTCH

main28222-77090i14B,15BFTE..BU303,343,XZU300,320,330,340..GEN,TAIW200209-201106

28226STARTER KIT, BATTERY TERMINAL

main28226-17030i15BFTE..BU300,340200209-200612

sub28226-54320

28226ASTARTER KIT, MOTOR TERMINAL

main28226-54220i15BFTE..BU300,340200209-200612

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-56080i15BFTE..BU300,340200209-200612

28229RETAINER, STARTER IDLE GEAR

main28229-56080i14B,15BFTE..BU303,343,XZU300,320,330,340..GEN,TAIW200209-201106

main28229-78060iS05C,W04D..WU300,340,XZU342..IDN200209-200802

subS2816-81400

28235PLUNGER, MAGNET SWITCH

main28235-17030i15BFTE..BU300,340200209-200612

28254PINION, STARTER IDLE GEAR

main28250-78060iW04D..WU300,340..GCC200209-200802

subS2825-11040

main28254-77090i15BFTE..BU300,340200209-200612

9009221001

main90092-21001

9009900158

main90099-00158

9009900254

main90099-00254

9009902205

main90099-02205

9009902325

main90099-02325

9009904207

main90099-04207

9009904473

main90099-04473

9009912009

main90099-12009

9017910195

main90179-10195

9020110344

main90201-10344

9111261465

main91112-61465

9413061400

main94130-61400

9451101000

main94511-01000

9462111400

main94621-11400

38 parts on this diagram · 10 diagrams in section
