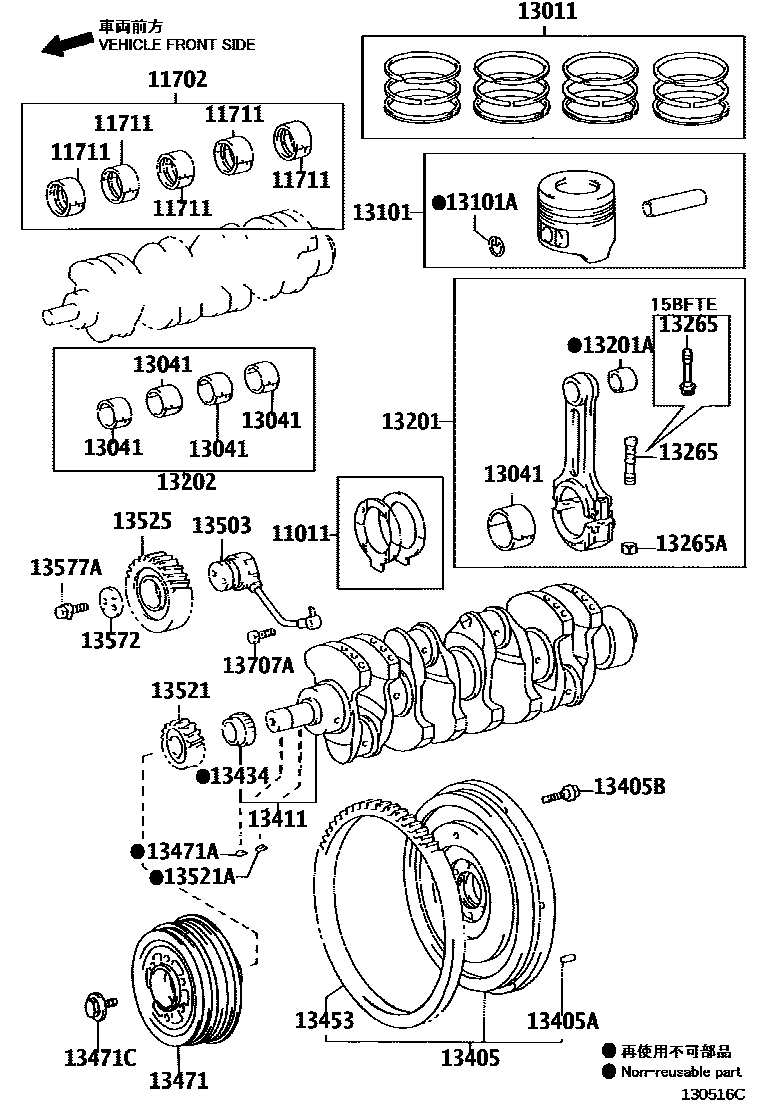

11011WASHER SET, CRANKSHAFT THRUST

main11011-56020i200209-200612

STD

sub11011-58020

main11011-58010i200212-200610

STD

main11011-78010i200209-201107

STD

subS1101-11240

main11011-78020i200209-200612

STD

subS1101-11380

main11011-E0030i201107-202310

STD

main11012-56020i200209-200612

O/S 0.125

sub11012-58020

main11012-58010i200212-200610

O/S 0.125

main11013-56020i200209-200612

O/S 0.250

sub11013-58020

main11013-58010i200212-200610

O/S 0.250

main11013-78010i200209-201106

O/S 0.250

subS1101-21250

main11013-89104i200209-200612

O/S 0.250

subS1101-21370

11702BEARING SET, CRANKSHAFT

main11701-78010i200209-201106

STD

subS1170-11611

main11701-78100i200312-201107

STD

subS1170-12420

main11701-78170i202203

STD

main11701-78180i202203-202310

STD

main11701-89104i200209-200612

STD

subS1170-12160

main11701-E0040i201107-201405

STD

sub11701-E0070

main11701-E0070i201406-201903

STD

main11704-56032i200209-200612

U/S 0.25

sub11704-58010

main11704-58020i200212-200610

U/S 0.25

main11704-78010i200209-201106

U/S 0.25

subS1170-31560

main11704-89104i200209-200612

U/S 0.25

subS1170-31840

main11704-E0060i202203

U/S 0.25

main11704-E0090i202203-202310

U/S 0.25

main11705-56032i200209-200612

U/S 0.50

sub11705-58010

main11705-58020i200212-200610

U/S 0.50

main11705-78010i200209-201106

U/S 0.50

subS1170-41590

main11705-89104i200209-200612

U/S 0.50

subS1170-41870

main11705-E0060i202203

U/S 0.50

main11705-E0090i202203-202310

U/S 0.50

main11706-78010i200209-201106

U/S 0.75

subS1170-51560

main11706-89103i200209-200612

U/S 0.75

subS1170-51850

main11706-E0050i202203

U/S 0.75

main11706-E0080i202203-202310

U/S 0.75

main11707-56032i200209-200612

U/S 1.00

sub11707-58010

main11707-58020i200212-200610

U/S 1.00

main11707-78010i200209-201106

U/S 1.00

subS1170-61590

main11707-89103i200209-200612

U/S 1.00

subS1170-61870

main11707-E0050i202203

U/S 1.00

main11707-E0080i202203-202310

U/S 1.00

main11708-78010i200312-202203

U/S 0.25

subS1170-32070

main11708-78020i200312-202203

U/S 0.50

subS1170-42100

main11708-78030i200312-202203

U/S 0.75

subS1170-52020

main11708-78040i200312-202203

U/S 1.00

subS1170-62040

mainS117012420i201904-202203

STD

11711BEARING, CRANKSHAFT

main11701-56022-01i200209-200612

MARK 1,REFER REPAIR MANUAL

sub11701-58010

main11701-56022-02i200209-200612

MARK 2,REFER REPAIR MANUAL

sub11701-58010

main11701-58020-01i200212-200610

MARK 1,REFER REPAIR MANUAL

main11701-58020-02i200212-200610

MARK 2,REFER REPAIR MANUAL

13011RING SET, PISTON

main13011-58072i200209-200612

STD

main13011-58110i200212-200610

STD

main13011-78031i200209-200406

STD

sub13011-78150

main13011-78060i200209-200405

STD

sub13011-78180

main13011-78080i200312-200405

STD

sub13011-78190

main13011-78150i200406-200612

STD

subS1301-91420

main13011-78170i200610-201106

STD

subS1304-E0160

main13011-78180i200405-201106

STD

subS1304-E0060

main13011-78190i200405-200609

STD

sub13011-78230

main13011-78220i200612-201005

STD

main13011-78230i200609-200901

STD

subS1304-E0020

main13011-78241i200912

STD

main13013-58072i200209-200612

O/S 0.50

main13013-58110i200212-200610

O/S 0.50

main13014-58072i200209-200612

O/S 0.75

main13014-58110i200212-200610

O/S 0.75

main13015-58072i200209-200612

O/S 1.00

main13015-58110i200212-200610

O/S 1.00

mainS1304E0700i202203-202310

STD

13041BEARING, CONNECTING ROD

main13041-58032-01i200209-200612

MARK 1,REFER REPAIR MANUAL

sub13041-58050

main13041-58032-02i200209-200612

MARK 2,REFER REPAIR MANUAL

sub13041-58050

main13041-58040-01i200212-200610

MARK 1,REFER REPAIR MANUAL

main13041-58040-02i200212-200610

MARK 2,REFER REPAIR MANUAL

13101PISTON SUB-ASSY, W/PIN

main13101-58041-01i200209-200612

STD,MARK 1,REFER REPAIR MANUAL

main13101-58041-02i200209-200612

STD,MARK 2,REFER REPAIR MANUAL

main13101-58041-03i200209-200612

STD,MARK 3,REFER REPAIR MANUAL

main13101-58120-01i200212-200610

STD,MARK 1,REFER REPAIR MANUAL

main13101-58120-02i200212-200610

STD,MARK 2,REFER REPAIR MANUAL

main13101-58120-03i200212-200610

STD,MARK 3,REFER REPAIR MANUAL

main13103-58041i200209-200612

O/S 0.50

main13103-58120i200212-200610

O/S 0.50

main13104-58041i200209-200612

O/S 0.75

main13104-58120i200212-200610

O/S 0.75

main13105-58041i200209-200612

O/S 1.00

main13105-58120i200212-200610

O/S 1.00

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90035-21020i200209-201106

main90521-34002i200209-200612

main90521-40002i200212-200610

mainSZ52037001i202203-202310

13201ROD SUB-ASSY, CONNECTING

main13201-59146i200209-200405

sub13201-59266

main13201-59205i200212-200405

sub13201-59275

main13201-59265i200405-200612

sub13201-59266

main13201-59275i200405-200610

main13201-78030i200209-201107

sub13260-E0050

main13201-78032i201904

main13260-78021i200209-200505

sub13260-78040

main13260-78060i200307-200406

sub13201-78030

main13260-78080i200505-200612

sub13260-E0130

main13260-E0050i201107-201904

sub13260-E0052

main13260-EW050i202203-202310

13201ABUSH(FOR CONNECTING ROD SMALL END)

main13271-78100i202203-202310

main13271-89101i200209-200212

subS1327-21300

main13271-89102i200209-201106

subS1327-21400

main90999-73124i200209-200612

main90999-73141i200212-200610

mainS132721400i201106-201904

13202BEARING SET, CONNECTING ROD

main13041-78040i200209-201106

STD

subS1320-11940

main13041-78060i200312-201107

STD

subS1320-11960

main13041-78080i200610-201107

U/S 0.25

subS1320-31820

main13041-78090i200610-201107

U/S 0.50

subS1320-41790

main13041-78100i200610-201107

U/S 0.75

subS1320-51730

main13041-78110i200610-201107

U/S 1.00

subS1320-61720

main13041-78160i200505-200612

STD

sub13041-78280

main13041-78180i200505-200612

U/S 0.25

sub13041-78300

main13041-78200i200505-200612

U/S 0.50

sub13041-78310

main13041-78240i200505-200612

U/S 0.75

sub13041-78320

main13041-78250i200505-200612

U/S 1.00

sub13041-78330

main13041-78440i202203-202310

STD

main13041-89101i200209-200505

STD

subS1320-11780

main13041-E0610i201107-201405

STD

sub13041-E0690

main13041-E0690i201406-201903

STD

main13041-E0E70i202203-202310

U/S 0.25

main13041-E0E80i202203-202310

U/S 0.50

main13041-E0E90i202203-202310

U/S 0.75

main13041-E0F00i202203-202310

U/S 1.00

main13204-58032i200209-200612

U/S 0.25

sub13204-58050

main13204-58040i200212-200610

U/S 0.25

main13204-89101i200209-200505

U/S 0.25

subS1320-31710

main13204-89105i200209-201106

U/S 0.25

subS1320-31800

main13205-58032i200209-200612

U/S 0.50

sub13205-58050

main13205-58040i200212-200610

U/S 0.50

main13205-78020i200209-201106

U/S 0.50

subS1320-41770

main13205-89101i200209-200505

U/S 0.50

subS1320-41680

main13206-89101i200209-200505

U/S 0.75

subS1320-51670

main13206-89103i200209-201106

U/S 0.75

subS1320-51710

main13207-58032i200209-200612

U/S 1.00

sub13207-58050

main13207-58040i200212-200610

U/S 1.00

main13207-89101i200209-200505

U/S 1.00

subS1320-61660

main13207-89103i200209-201106

U/S 1.00

subS1320-61700

mainS132011960i201904

STD

sub13041-E0610

mainS132031820i201107

U/S 0.25

mainS132041790i201107

U/S 0.50

mainS132051730i201107

U/S 0.75

mainS132061720i201107

U/S 1.00

13265BOLT, CONNECTING ROD

main13265-58020i200209-200612

main13265-58030i200212-200610

main13265-78020i200209-200505

subS1326-51492

main13265-78030i200505-200612

subS1326-51620

main13265-89103i200209-201904

main13265-E0010i202203-202310

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main13266-58010i200209-200612

main13266-89102i200209-200505

subS1326-61150

13405FLYWHEEL SUB-ASSY

main13405-0W020i200209-200612

main13405-56040i200212-200610

sub13405-56041

main13405-58050i200212-200610

main13405-78020i200209-200901

sub13405-78021

main13405-78021i200901-201008

sub13450-E0A91

main13405-78041i200610-200901

sub13405-78042

main13405-78042i200901-201008

sub13450-E0D41

main13450-78030i200209-200612

sub13450-78031

main13450-78060i200312-200610

sub13450-78061

main13450-78061i200610-200901

sub13450-78062

main13450-78101i200612-200901

sub13450-78102

main13450-78102i200901-201005

main13450-78111i200612-200901

sub13450-78112

main13450-78112i200901-201005

main13450-78140i200912-201008

main13450-78150i200912-201008

main13450-78160i201008-201106

sub13450-E0M00

main13450-78210i201008-201106

sub13450-E0L90

main13450-78220i201008

main13450-78240i201008

main13450-78240i201804

WITH POWEWR TAKE OFF

main13450-78260i202203-202310

main13450-78270i202203

W(PTO(MIXER))

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-10008i200209-201106

L=24,OD=10

main90250-10192i200209-200612

L=22,OD=10

mainSM21201024i202203-202310

L=24,OD=10

13405BBOLT, FLYWHEEL SETTING

main90031-05112i200304-201106

main90031-09050i200209-200612

main90105-14021i200209-200612

main90913-01015i200209-200612

main90913-01022i200212-200610

mainS134551820i202203-202310

mainS134551840i201804

WITH POWEWR TAKE OFF

mainS134551840i202203

W(PTO(MIXER))

13411CRANKSHAFT

main13400-78080i200610-200901

sub13411-E0180

subS1352-11660

subSM171-01028

subSZ910-29013

main13401-58051i200209-200612

main13401-58080i200212-200610

main13411-78011i200209-201008

sub13411-E0080

main13411-78080i201008-201009

sub13411-E0071

subSM171-01028

main13411-78081i201008-201106

main13411-E0071i201009

main13411-EW050i202203-202310

13434SPLINE, OIL PUMP DRIVE

main13519-56011i200209-200612

13453GEAR, FLYWHEEL RING

main13453-0W020i200209-200612

main13453-17010i200212-200610

main13453-56020i200212-200610

sub13453-56021

main13453-78010i200209-200901

sub13453-78011

main13453-78011i200901-201106

sub13453-E0090

main13453-78020i200901-201106

sub13453-E0080

main13453-78030i200912

main13453-89102i200209-200901

sub13453-78020

main13453-E0080i202203-202310

13471PULLEY, CRANKSHAFT

main13470-58051i200212-200610

main13470-58060i200209-200612

main13470-78050i200209-200612

subS1347-03970

main13470-78080i200209-201003

sub13470-78081

subSZ301-41001

main13470-78081i201003-201106

sub13470-E0560

main13470-78160i200612-200801

sub13470-78161

main13470-78161i200801-201005

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main95161-30416i200209-200612

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90901-19032i200209-200612

main90901-19061i200212-200610

13503SHAFT SUB-ASSY, IDLE GEAR

main13504-58010i200209-200612

main13504-58020i200212-200610

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-56030i200209-200612

main13521-58010i200212-200610

main13521-78060i200209-200610

subS1352-11610

main13521-78090i200312-201106

subS1352-11660

main13521-78100i200610-201005

main13521-E0020i202203-202310

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90032-81009i201008-201106

main90281-06001i200209-201009

main95161-30519i200209-200612

mainSM17101028i201009-202310

13525GEAR, IDLE, NO.1

main13508-56010i200209-200612

main13508-78010i200209-201106

sub13508-E0300

main13508-78270i200610-201101

sub13508-E0620

main13508-78280i200612-201005

main13508-E0620i201101-201106

main13520-58010i200212-200610

13572PLATE, IDLE GEAR THRUST

main13572-56020i200209-200612

main13572-58010i200212-200610

main13572-78010i200209-200612

NO.1

main13572-78050i200212-200403

NO.2

sub13581-78040

main13572-78060i200610-201106

subS1357-21320

main13572-78060i200403-200802

NO.1

subS1357-21320

main13572-78080i200905-201005

main13572-89104i200209-200612

NO.2

subS1357-21250

main13572-89105i200209-200612

NO.3

subS1357-21271

13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)

main90038-01026i200209-201106

main90105-10194i200209-200612

13707AUNION(FOR OIL PIPE, NO.1)

main90401-10026i200209-200612

CRANKSHAFT & PISTON
