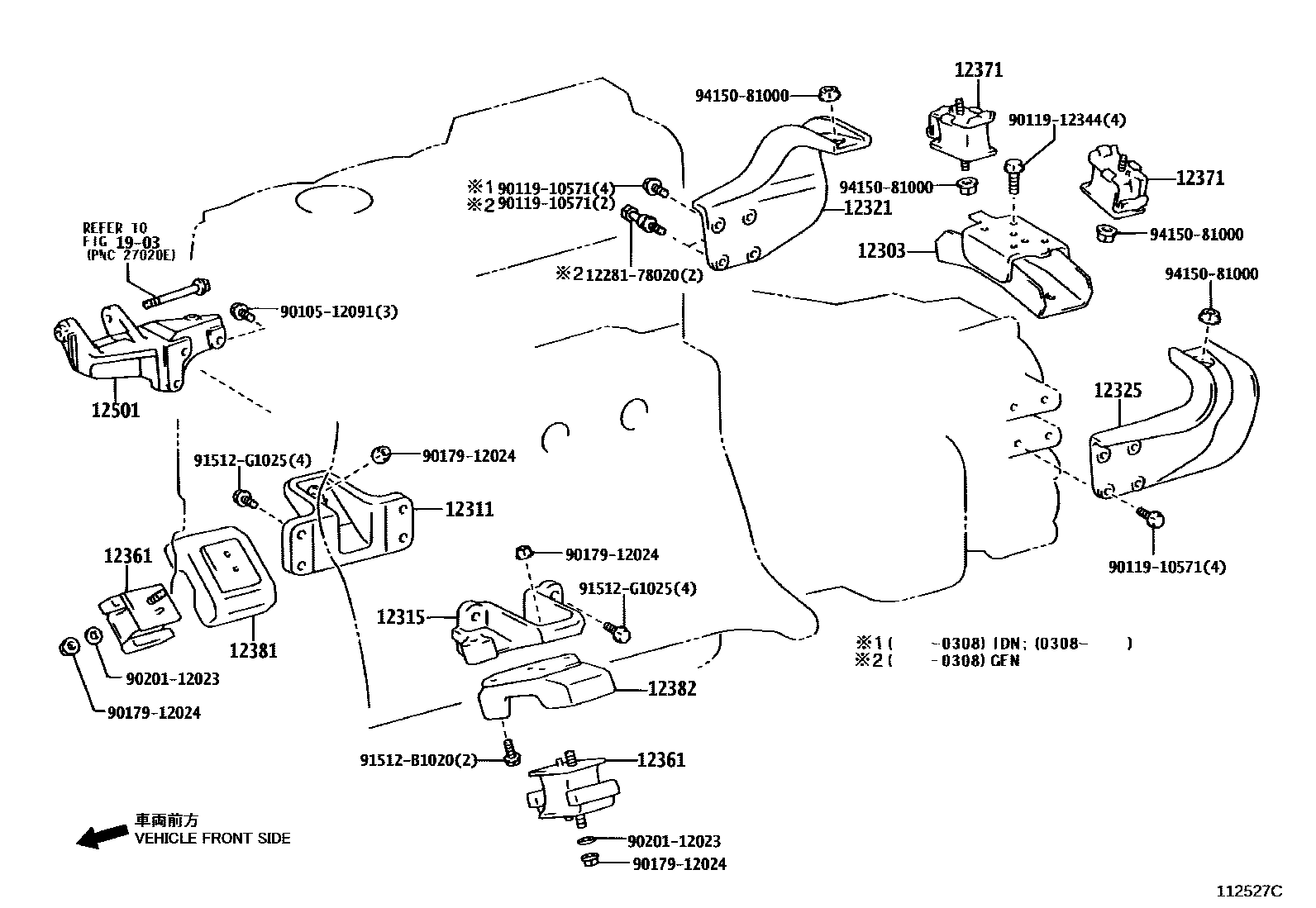

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1TRANSMISSION TYPE=MYY5A 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1

12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR

main12303-0W010iW04D..WU302,342,352..DCRTP,DCRTR200209-202310

main12303-78010i14B..BU303,343..GEN200212-201106

sub12303-78011

main12303-78030i15BFTE..BU300,340200212-200901

sub12303-78031

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-58110i14B,15BFTE..BU30#,34#200209-200612

main12311-78030iS05C..XZU342200209-200612

subS1231-11851

main12311-78050iW04D..WU300,340..IDN200209-201106

subS1231-11950

main12311-78110iW04D..WU302,342,352..DCRTP,DCRTR200612-201005

main12311-E0231iN04C..XZU349..6F;N04C..XZU309..IV3202203-202310

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-58070i14B,15BFTE..BU30#,34#200209-200612

main12315-78030iW04D..WU340..GCC200209-201106

subS1231-51940

main12315-78050iN04C..XZU305,345200312-200901

subS1231-52000

main12315-78090iW04D..WU302,342,352..DCRTP,DCRTR200612-201005

main12315-78110iN04C..XZU349..5F;N04C..XZU309,359..IV1,IV8202203-202310

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-0U010iW04D..WU342,352..DCRTR201612-202003

T/M TYPE=RE50

sub12321-0U011

main12321-0U011iN04C..XZU349..5F;N04C..XZU309,359..IV1,IV8202203-202310

main12321-0U011iW04D..WU342,352..DCRTR202004

T/M TYPE=RE50

main12321-0W020i14B..BU303,343..IDN200209-200605

sub12321-0W021

main12321-0W021iW04D..WU302,342,352..DCRTP200606-201005

main12321-0W030iS05C..XZU342200209-200403

main12321-0W040iW04D..WU342..DCRTR200912-201612

T/M TYPE=M550

main12321-0W040iW04D..WU342..DCRTJ..IDN200612-201005

main12321-58221i15BFTE..XZU300,320,330,340200212-200610

main12321-58230iW04D..WU300,340..GCC200212-201106

main12321-78160iS05C..XZU342200403-200612

main12321-78200iW04D..WU342..85T201209-201612

TRANSMISSION TYPE=MYY5A

main12321-78220iN04C..XZU307,337..55T,65T200312-201106

sub12321-78221

main12321-78440iN04C..XZU327,347;N04C..XZU337..80T200610-200901

sub12321-78441

main12321-78711iN04C..XZU349..6F202203

W(PTO(MIXER))

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-0U010iW04D..WU342,352..DCRTR201612-202003

sub12325-0U011

main12325-0U011iW04D..WU342,352..DCRTR202004-202310

main12325-0W010iW04D..WU302,342,352..DCRTP200209-201005

main12325-0W020iS05C..XZU342200209-200403

main12325-0W030iW04D..WU342..DCRTJ..IDN200612-201612

main12325-58181i15BFTE..BU300,340200212-200610

main12325-58190i14B..BU303,343..GEN200212-201106

main12325-78140iS05C..XZU342200403-200612

main12325-78180iW04D..WU342..85T201209-201612

TRANSMISSION TYPE=MYY5A

main12325-78200iW04D..WU302,342..GEN200312-201106

sub12325-78201

main12325-78410iN04C..XZU327,347;N04C..XZU337..80T200610-200901

sub12325-78411

main12325-78671iN04C..XZU349..6F202203

W(PTO(MIXER))

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-0W020iW04D..WU302,342,352..DCRTP,DCRTR200612-202310

main12361-58130iN04C..XZU307,327,337,347200212-200901

sub12361-58131

main12361-78080iW04D..WU302,342..GEN200610-201106

sub12361-78081

main12361-78100iS05C..XZU342200209-200612

RH

main12361-78110iW04D..WU300,340..SA200209-201106

sub12361-78111

main12362-78010iS05C..XZU342200209-200612

LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-0W020iN04C..XZU349..6F;N04C..XZU309..IV3200612-202310

main12371-78010iS05C..XZU342200209-201106

sub12371-78060

12381STABILIZER, ENGINE MOUNTING

main12381-0W010iW04D..WU302,342,352..DCRTP,DCRTR200612-201005

main12381-58011i15BFTE..XZU300,320,330,340200209-201106

main12381-78030iN04C..XZU305,345200312-201106

sub12381-78032

main12381-78040iN04C..XZU307,327,337,347200610-200901

main12381-78080iN04C..XZU349..6F;N04C..XZU309..IV3202203-202310

12382STABILIZER, ENGINE MOUNTING, LH

main12381-78030iN04C..XZU305,345200312-200610

sub12381-78032

main12381-78040iN04C..XZU307,327,337,347200610-200901

main12381-78080iN04C..XZU349..5F;N04C..XZU309,359..IV1,IV8202203-202310

main12382-0W010iW04D..WU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main12382-58020i14B..BU303,343..IDN200209-200612

main12382-58040i14B,15BFTE..BU30#,34#..ARL,GEN200212-200610

main12382-78010iW04D..WU300,340..SA200209-201106

main12382-78040iW04D..WU302,342..GEN200610-201106

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-56010i14B..BU303,343200209-200612

main12501-78062iN04C..XZU305,345200312-200406

sub12501-78120

main12501-78120iN04C..XZU305,345200406-200610

sub12511-E0570

main12511-78120iN04C..XZU307,327,337,347200610-200901

sub12511-78121

1903

1228178020HANGER, ENGINE, NO.1

main12281-78020

9010512091

main90105-12091

9011910571

main90119-10571

9011912344

main90119-12344

9017912024

main90179-12024

9020112023

main90201-12023

91512B1020

main91512-B1020

91512G1025

main91512-G1025

9415081000

main94150-81000

20 parts on this diagram · 19 diagrams in section
