WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1INSTRUMENT PANEL 0004 1INSTRUMENT PANEL 0005 1COWL 0006 1COWL 0007 1BODY 0008 1CLAMP & BRACKET 0009 1CLAMP & BRACKET

8201

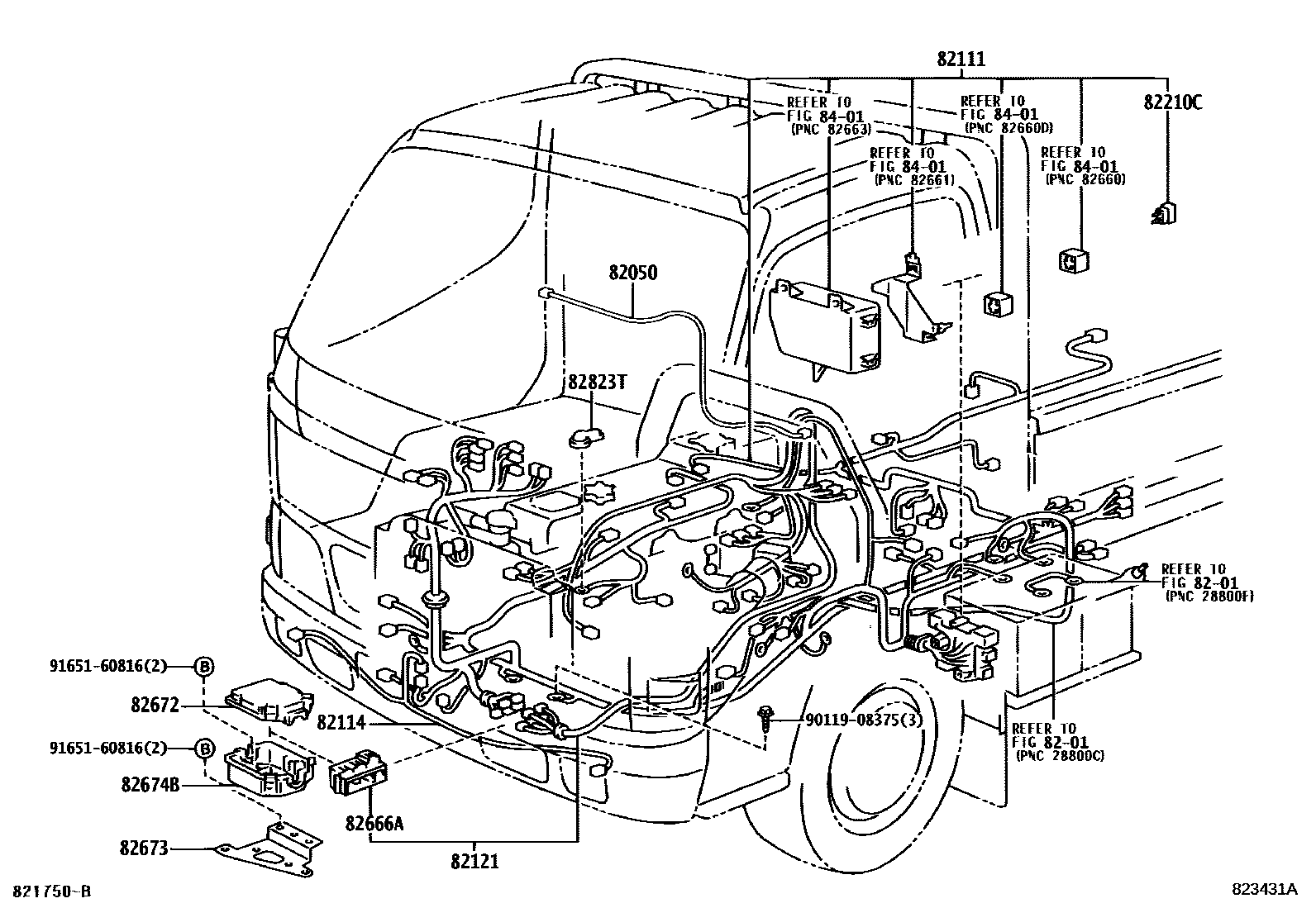

82050WIRE ASSY, ENGINE

main82050-37010iXZU300,320,330,340¥1,430200206-200212

82111WIRE, ENGINE ROOM MAIN

main82111-37050iXZU300,330,340¥168,000199907-200206

main82111-37060iXZU320¥168,000199907-200206

main82111-37362iXZU307¥187,000200010-200101

sub82111-37361¥187,000

main82111-37363iXZU307¥187,000200101-200206

main82111-37762iXZU302¥187,000200010-200101

sub82111-37761¥187,000

main82111-37763iXZU302¥187,000200101-200206

main82111-37793iXZU342¥187,000200010-200101

sub82111-37792¥187,000

main82111-37794iXZU342¥187,000200101-200206

main82115-37640iXZU302¥187,000200010-200206

AUSTRALIA SPEC

main82115-37650iXZU307¥187,000200010-200206

AUSTRALIA SPEC

main82115-37660iXZU342¥187,000200010-200206

AUSTRALIA SPEC

main82115-37770iXZU307¥187,000200101-200206

W(BATTERY=95D31L X 2)

main82115-37780iXZU302¥187,000200101-200206

W(BATTERY=95D31L X 2)

main82115-37840iXZU342¥187,000200101-200206

W(BATTERY=95D31L X 2)

main82115-3V310iXZU300,330,340¥168,000200206-200212

main82115-3V320iXZU320¥168,000200206-200212

82114WIRE, ENGINE ROOM, NO.4

main82114-37010iXZU30#,320,330,34#¥4,270199907-200212

82121WIRE, ENGINE

main82121-3V230iXZU300,330,340¥37,200199907-200105

main82121-3V231iXZU300,330,340¥42,400200105-200210

main82121-3V232iXZU300,330,340¥42,400200210-200212

main82121-3V240iXZU320¥37,200199907-200105

main82121-3V241iXZU320¥42,400200105-200210

main82121-3V242iXZU320¥42,400200210-200212

82210CFUSIBLE LINK

main90982-08202iXZU300,320,330,340¥700199907-200206

60A,TERM.:MALE,YEL

main90982-08203iXZU300,320,330,340¥460199907-200206

80A,TERM.:MALE,BLK

main90982-08246iXZU300,320,330,340¥440199907-200206

100A,TERM.:MALE,BLUE

main90982-08274iXZU300,320,330,340¥480199907-200206

120A,TERM.:MALE,WHT

main90982-08280iXZU300,320,330,340¥590199907-200212

30A,TERM.:FEMALE,PNK

main90982-08281iXZU300,320,330,340¥590199907-200206

40A,TERM.:FEMALE,GRN

main90982-08282iXZU300,320,330,340¥440199907-200206

50A,TERM.:FEMALE,RED

82666AHOLDER, CONNECTOR NO.2

main82666-37130iXZU300,320,330,340¥1,950199907-200212

82672COVER, JUNKTION BLOCK

main82672-37030iXZU300,320,330,340¥2,390199907-200212

82673BRACKET, JUNCTION BLOCK

main82670-37010iXZU302,307,342¥3,680200010-200206

main82673-37060iXZU300,320,330,340¥2,910199907-200212

82674BCOVER, JUNCTION BLOCK, LOWER

main82674-37010iXZU300,320,330,340¥5,100199907-200212

82823TCAP, ALTERNATOR TERMINAL

main82823-22050iXZU30#,320,330,34#¥390199907-200212

8401

9011908375

main90119-08375¥80

9165160816

main91651-60816¥100

14 parts on this diagram · 9 diagrams in section
