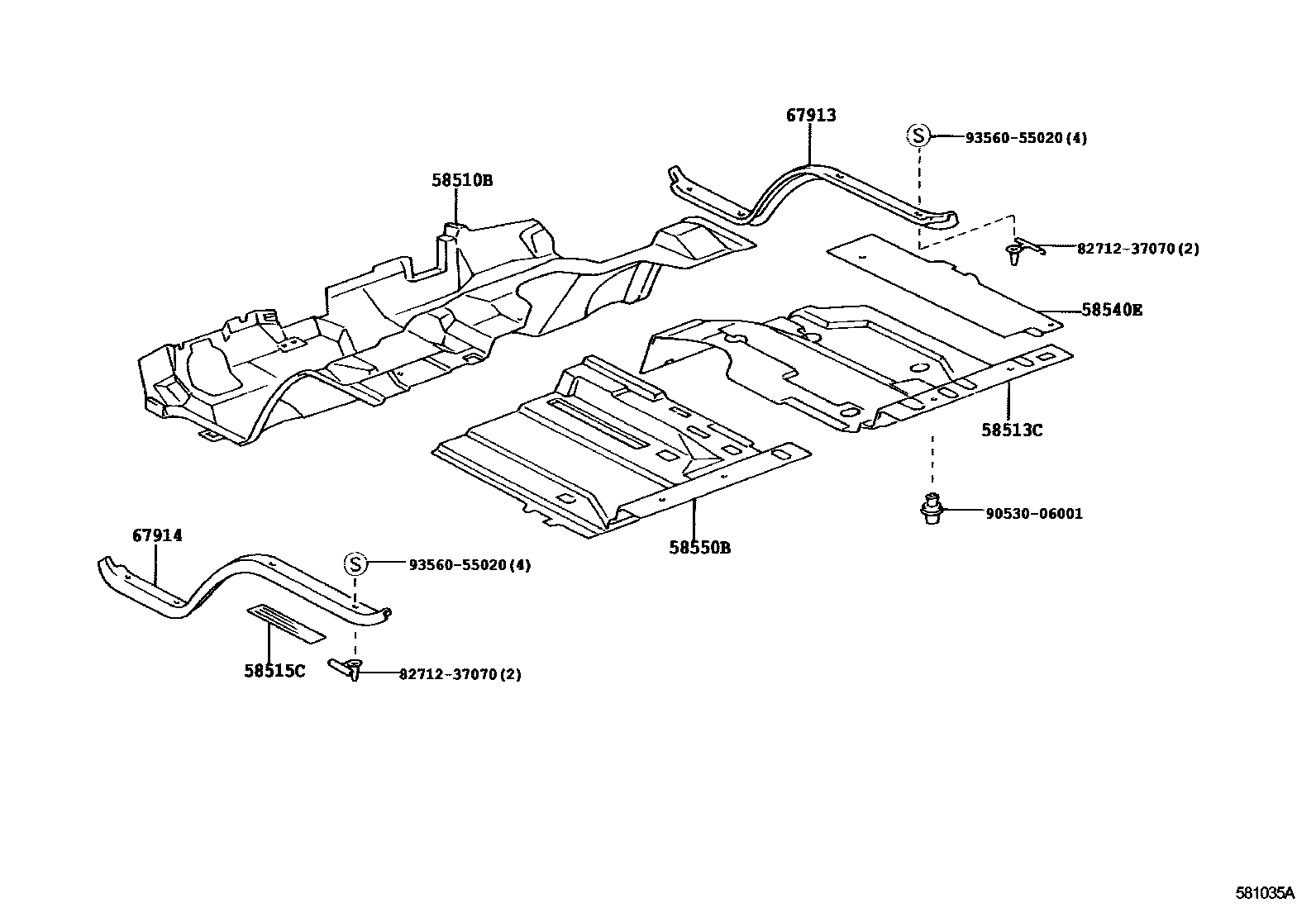

FLOOR MAT & SILENCER PAD
58510BMAT, FRONT FLOOR, FRONT
TYPE B:REFER TO ILLUSTRATION, W(SRS AIR BAG & CONSOLE BOX),DARK CHARCOAL,TRIM1#
TYPE A:REFER TO ILLUSTRATION, W(CONSOLE BOX),DARK CHARCOAL,TRIM1#
DARK CHARCOAL,TRIM1#
DARK CHARCOAL,TRIM1#
TYPE A:REFER TO ILLUSTRATION, W(SRS AIR BAG & CONSOLE BOX),DARK CHARCOAL,TRIM1#
TYPE B:REFER TO ILLUSTRATION, W(CONSOLE BOX),DARK CHARCOAL,TRIM1#
TYPE A:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM1#
TYPE A:REFER TO ILLUSTRATION, W(SRS AIR BAG),DARK CHARCOAL,TRIM1#
TYPE B:REFER TO ILLUSTRATION, W(SRS AIR BAG),DARK CHARCOAL,TRIM1#
TYPE B:REFER TO ILLUSTRATION, W(LUMBER SUPPORT),DARK CHARCOAL,TRIM1#
sub58500-37120
TYPE B:REFER TO ILLUSTRATION, W(SRS AIR BAG & LUMBER SUPPORT),DARK CHARCOAL,TRIM1#
sub58500-37150
TYPE B:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM1#
58513CMAT, FLOOR, FRONT CENTER
DARK CHARCOAL,TRIM1#
58515CMAT, FRONT FLOOR, REAR NO.1
MD.CHARCOAL,TRIM1#
58540EMAT ASSY, FLOOR, REAR RH
DARK CHARCOAL,TRIM1#
58550BMAT ASSY, FLOOR, REAR LH
67913PLATE, FRONT DOOR SCUFF, RH
MD.CHARCOAL,TRIM1#
67914PLATE, FRONT DOOR SCUFF, LH
MD.CHARCOAL,TRIM1#
8271237070CLAMP, WIRING HARNESS
main82712-37070
9053006001
main90530-06001
9356055020
main93560-55020
10 parts on this diagram · 2 diagrams in section
