FRAME

0001 1FRAME 0002 1FRAME 0003 1FRAME 0004 1FRAME 0005 1FRAME 0006 1FRAME 0007 1FRAME 0008 1FRAME 0009 1SUSPENSION 0010 1PROPELLER SHAFT GUARD

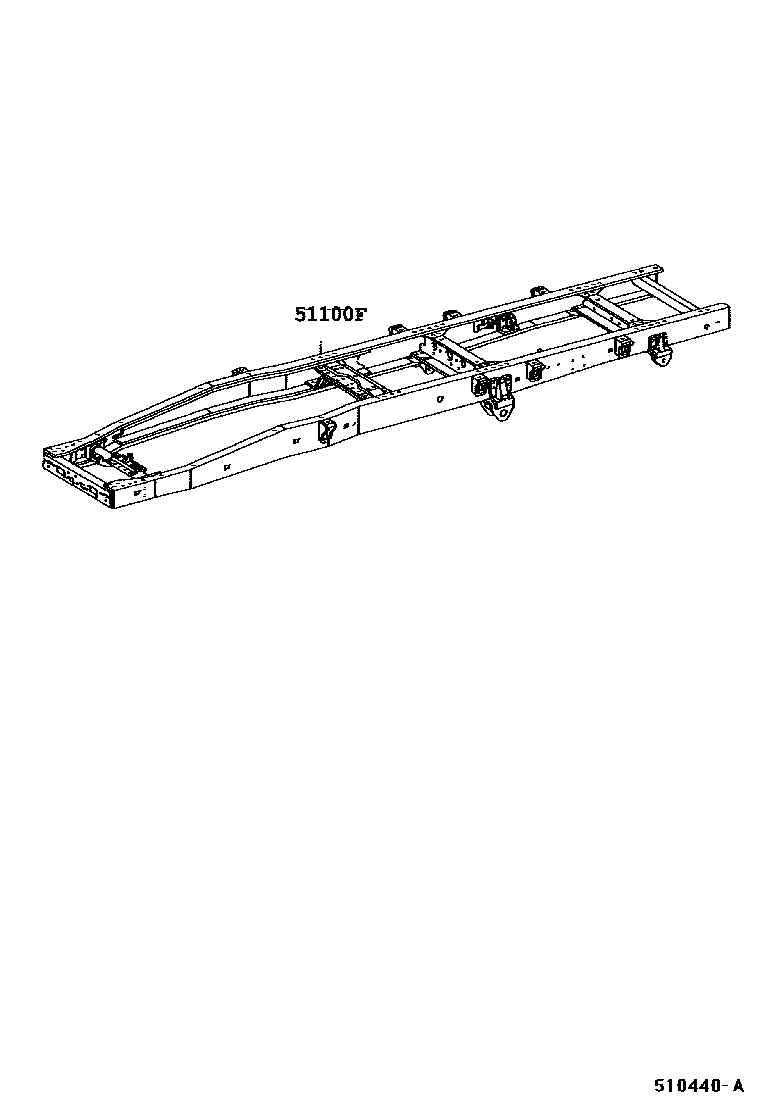

51100FFRAME SUB-ASSY

main51002-37450iXZU302..ST200010-200206

sub51002-3V110

main51002-37460iXZU307200010-200206

main51002-37510iXZU300199907-200212

main51002-37630iXZU320199907-200212

main51002-37680iXZU330..30T199907-200212

main51002-37690iXZU330..40T199907-200212

main51002-37780iXZU340199907-200212

main51002-37870iXZU342200010-200206

sub51002-3V380

main51003-37580iXZU302..WT200010-200206

sub51002-3V270

1 parts on this diagram · 10 diagrams in section
