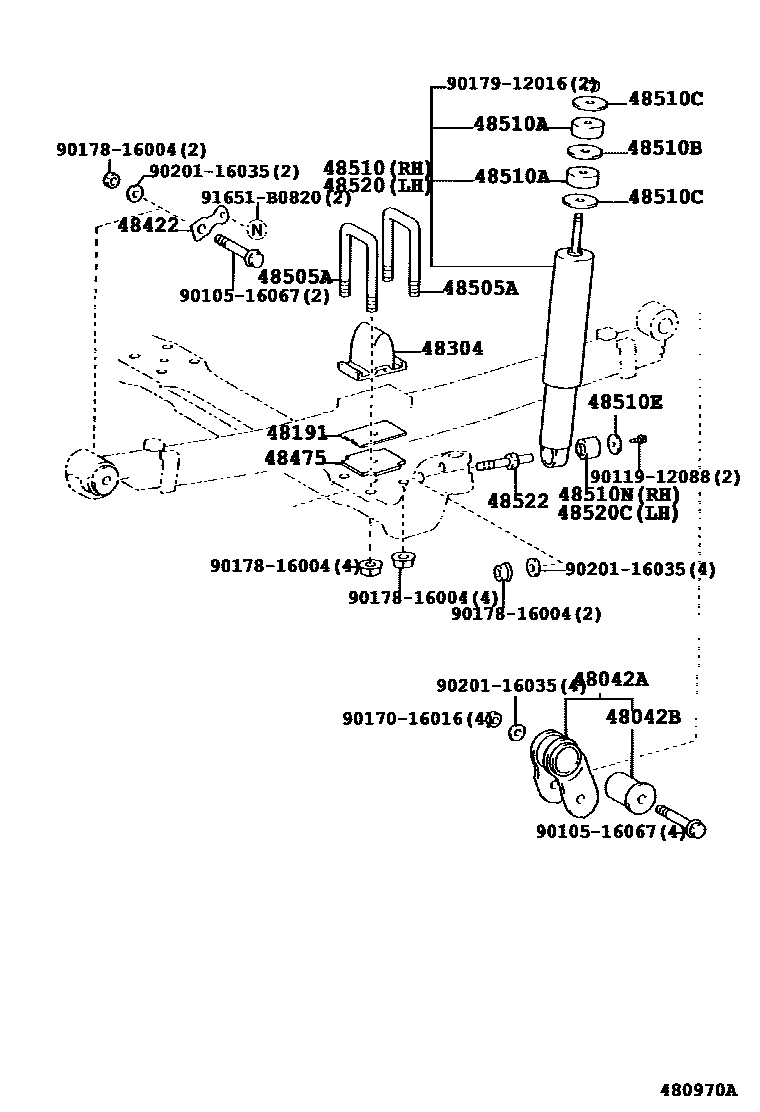

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 13-LEAF 0005 13-LEAF 0006 16-LEAF 0007 16-LEAF 0008 1

48042ASHACKLE SUB-ASSY, FRONT SPRING, NO.2

main48042-37020iXZU300,302,320,330,34#200012-200212

main48042-37030iXZU300,302,320,330,34#199907-200012

48042BBUSH, FRONT SPRING NO.2 SHACKLE

main90389-16025iXZU300,302,320,330,34#199907-200012

main90389-16026iXZU300,302,320,330,34#200012-200212

48191WEDGE, CASTER(FOR FRONT LEAF SPRING)

main48191-37060iXZU302,342199907-200206

main48191-37110iXZU300,320,330,340200109-200212

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-37040iXZU300,302,320,330,34#199907-200212

48422SUPPORT, FRONT SPRING PIN

main48422-37010iXZU300,302,320,330,34#199907-200212

48475PLATE, DISTANCE(FOR FRONT)

main48475-36070iXZU300,302,320,330,34#199907-200212

48505ABOLT, U(FOR FRONT SPRING)

main90117-16064iXZU300,320,330..20T,30T199907-200212

L=100

main90117-16065iXZU330,340..40T199907-200212

L=150

main90117-16066iXZU302,342..WT200010-200206

L=120,W(PNC 48475)

main90117-16066iXZU302,342..WT200010-200206

L=120

main90117-16066iXZU302,342..WT200010-200206

L=120,W/O(PNC 48475)

main90117-16071iXZU302,342..WT200010-200206

L=110,W(PNC 48475)

main90117-16071iXZU300,320,330..20T,30T199907-200212

L=110

main90117-16073iXZU330,340..40T199907-200212

L=160

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-39795iXZU307200010-200206

MARK 48510-37020

main48511-80078iXZU302,342..WT200010-200206

MARK 48511-37070

sub48511-80120

main48511-80079iXZU300,320,330,340199907-200212

MARK 48511-37060

sub48511-80119

main48511-80080iXZU302..ST200010-200206

sub48511-80118

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01031iXZU307200010-200206

main90948-01071iXZU300,302,320,330,34#199907-200212

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02017iXZU307200010-200206

main90948-02054iXZU300,302,320,330,34#199907-200212

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02009iXZU300,302,320,330,34#199907-200212

main90948-03018iXZU307200010-200206

48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

main90948-03011iXZU300,302,320,330,34#199907-200212

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main90385-19011iXZU300,302,320,330,34#199907-200212

main90389-14055iXZU307200010-200206

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-39795iXZU307200010-200206

MARK 48510-37020

main48511-80078iXZU302,342..WT200010-200206

MARK 48511-37070

sub48511-80120

main48511-80079iXZU300,320,330,340199907-200212

MARK 48511-37060

sub48511-80119

main48511-80080iXZU302..ST200010-200206

sub48511-80118

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main90385-19011iXZU300,302,320,330,34#199907-200212

main90389-14055iXZU307200010-200206

48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT

main48522-37030iXZU300,302,320,330,34#199907-200212

9010516067

main90105-16067

9011912088

main90119-12088

9017016016

main90170-16016

9017816004

main90178-16004

9017912016

main90179-12016

9020116035

main90201-16035

91651B0820

main91651-B0820

23 parts on this diagram · 8 diagrams in section
