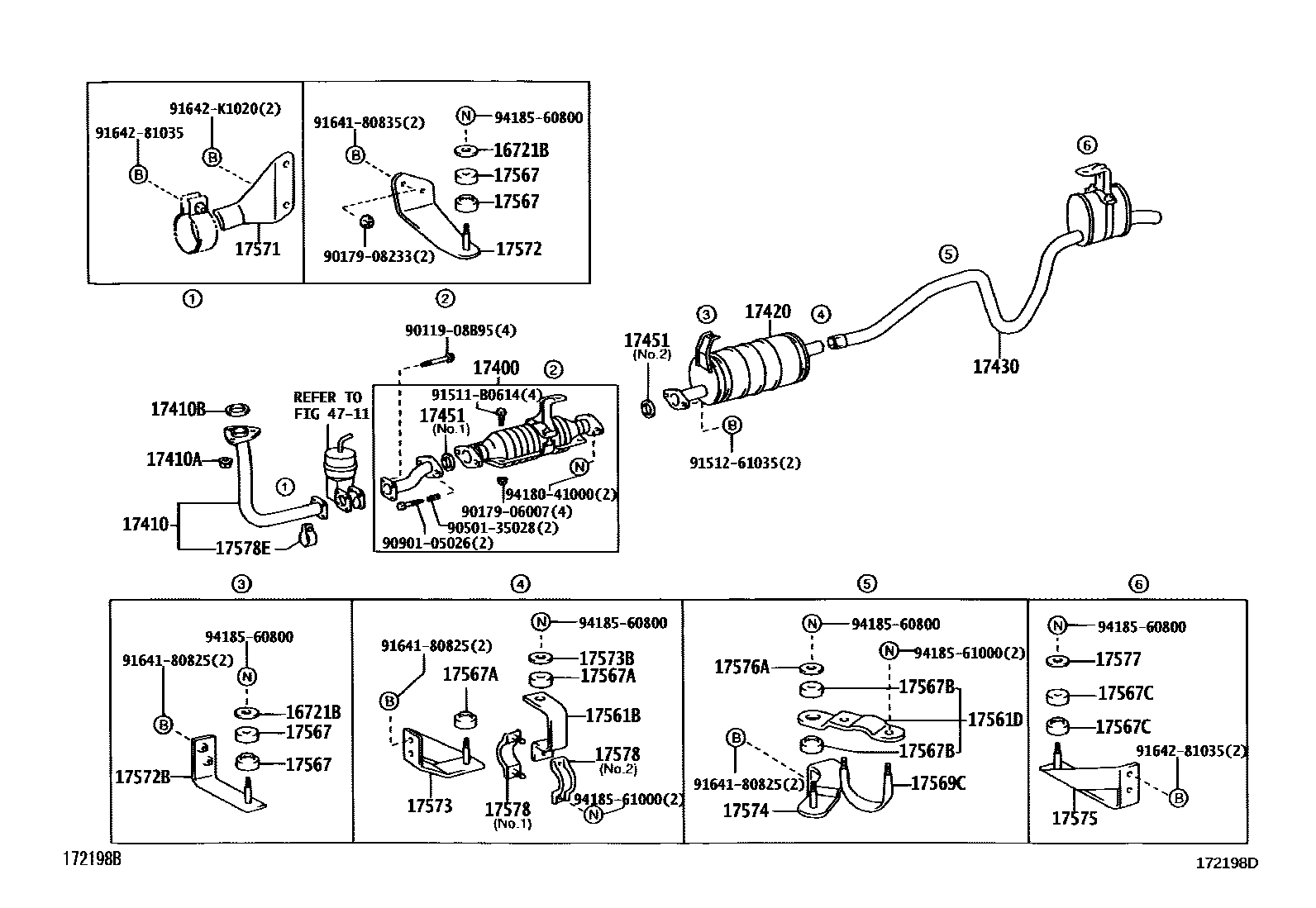

EXHAUST PIPE
16721BPLATE, HOLDER
17400CONVERTER ASSY, W/CATALYST
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
sub17403-58491
sub17403-58620
NO.1
sub17403-58521
sub17403-58600
sub17403-78072
17451GASKET, EXHAUST PIPE
NO.1
NO.2
17561BSUPPORT, EXHAUST PIPE, NO.1
17561DSUPPORT, EXHAUST PIPE, NO.1
NO.1
NO.2
17567CUSHION, EXHAUST PIPE SUPPORT
17567ACUSHION, EXHAUST PIPE SUPPORT, NO.2
17567BCUSHION, EXHAUST PIPE SUPPORT, NO.3
17567CCUSHION, EXHAUST PIPE SUPPORT, NO.4
17569CBOLT, EXHAUST PIPE SUPPORT
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
sub17571-58391
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17573BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573BBRACKET, EXHAUST PIPE SUPPORT, NO.5
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
17577BRACKET, EXHAUST PIPE SUPPORT, NO.7
17578CLAMP, PIPE
NO.1
NO.2
17578ECLAMP, PIPE(FOR FRONT EXHAUST PIPE)
4711
9011908B95
main90119-08B95
9017906007
main90179-06007
9017908233
main90179-08233
9050135028
main90501-35028
9090105026
main90901-05026
91511B0614
main91511-B0614
9151261035
main91512-61035
9164180825
main91641-80825
9164180835
main91641-80835
9164281035
main91642-81035
91642K1020
main91642-K1020
9418041000
main94180-41000
9418560800
main94185-60800
9418561000
main94185-61000
41 parts on this diagram · 7 diagrams in section
