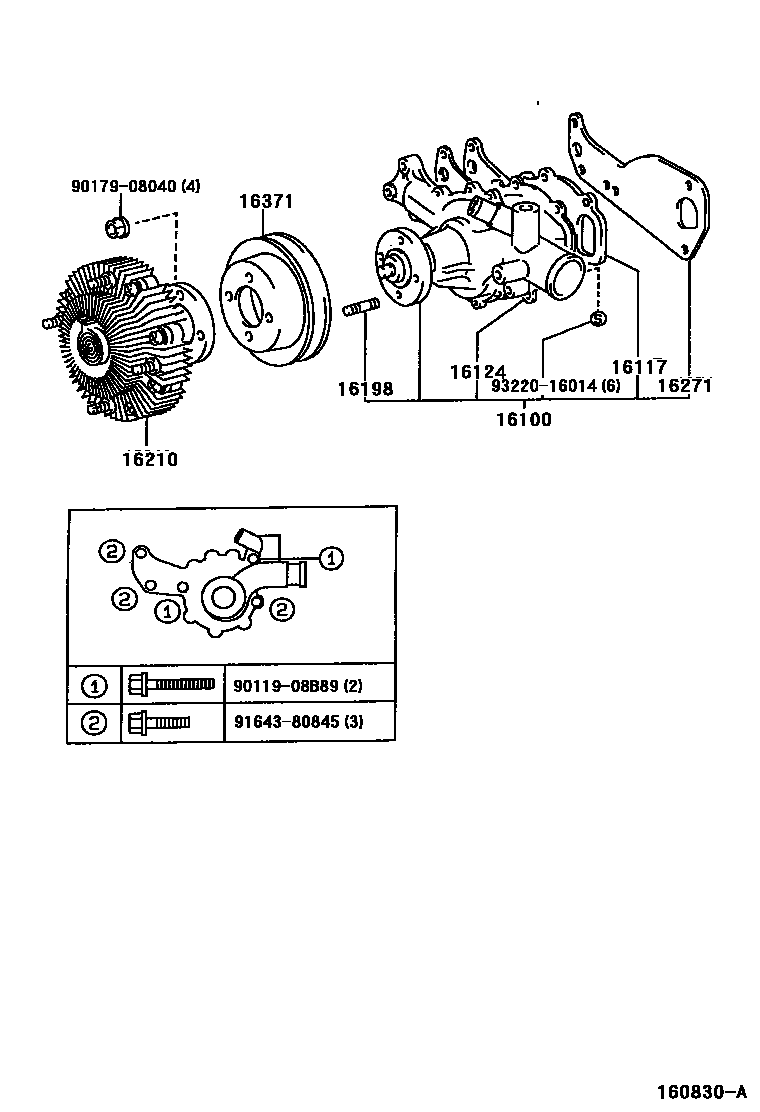

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-59295i15BFTE..XZU300,320,330,340199907-200212

main16100-78030iS05C..XZU302,307,342200010-200011

sub16100-E0670

main16100-78050iS05C..XZU302,307,342200011-200206

sub16100-78051

16117PLATE, WATER PUMP

main16117-58090i15BFTE..XZU300,320,330,340199907-200212

16124GASKET, WATER PUMP COVER

main16124-58090i15BFTE..XZU300,320,330,340199907-200212

16198BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-41170i15BFTE..XZU300,320,330,340199907-200212

16210COUPLING ASSY, FLUID

main16210-58060i15BFTE..XZU300,320,330,340199907-200212

sub16210-58070

main16250-78050iS05C..XZU302,307,342200010-200011

MARK=05

sub16250-78130

main16250-78080iS05C..XZU302,307,342200011-200112

MARK=PINK

subS1625-01660

main16250-78080iS05C..XZU302,307,342200112-200206

subS1625-01660

16271GASKET, WATER PUMP

main16271-58010i15BFTE..XZU300,320,330,340199907-200212

16371PULLEY, FAN

main16308-78020iS05C..XZU302,307,342200010-200206

subS1610-51120

main16371-58090i15BFTE..XZU300,320,330,340199907-200212

9011908B89

main90119-08B89

9017908040

main90179-08040

9164380845

main91643-80845

9322016014

main93220-16014

11 parts on this diagram · 2 diagrams in section
