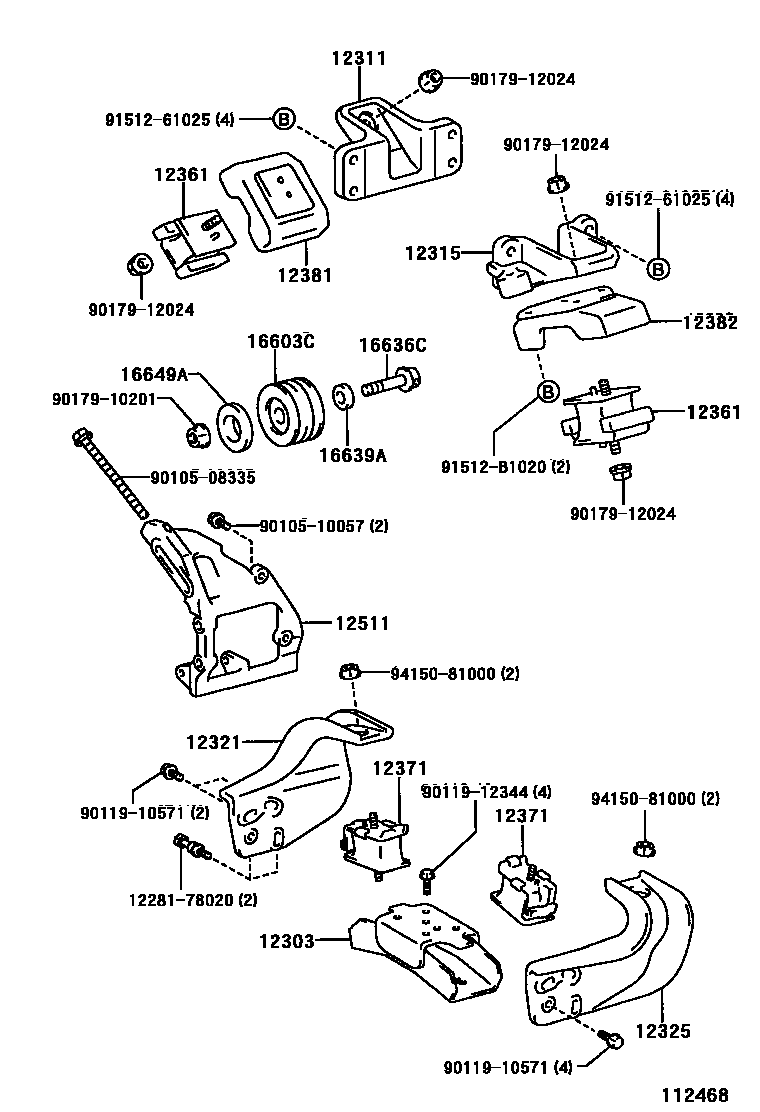

MOUNTING

0001 1 0002 1

12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR

main12303-78010iS05C..XZU302,307200010-200206

sub12303-78011

main12303-78020iS05C..XZU342200010-200206

sub12303-78010

main12303-78030i15BFTE..XZU300,320,330,340199907-200212

sub12303-78031

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-58110i15BFTE..XZU300,320,330,340199907-200212

main12311-78030iS05C..XZU302,342200010-200206

TYPE A:REFER TO ILLUSTRATION

subS1231-11851

main12311-78040iS05C..XZU307200010-200206

TYPE B:REFER TO ILLUSTRATION

sub12311-78041

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-58070i15BFTE..XZU300,320,330,340199907-200212

main12315-78010iS05C..XZU302,342200010-200206

TYPE A:REFER TO ILLUSTRATION

subS1231-51871

main12315-78020iS05C..XZU307200010-200206

TYPE B:REFER TO ILLUSTRATION

sub12315-78021

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-58220i15BFTE..XZU300,320,330,340199907-200001

sub12321-58221

main12321-58221i15BFTE..XZU300,320,330,340200001-200212

main12321-78090iS05C..XZU342200010-200206

main12321-78100iS05C..XZU302,307200010-200206

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-58180i15BFTE..XZU300,320,330,340199907-200001

sub12325-58181

main12325-58181i15BFTE..XZU300,320,330,340200001-200212

main12325-78070iS05C..XZU342200010-200206

main12325-78080iS05C..XZU302,307200010-200206

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-58130i15BFTE..XZU300,320,330,340199907-200212

sub12361-58131

main12361-78040iS05C..XZU302,342200010-200206

TYPE A:REFER TO ILLUSTRATION,RH

main12361-78050iS05C..XZU307200010-200206

TYPE B:REFER TO ILLUSTRATION

main12361-78070iS05C..XZU302,342200010-200206

TYPE A:REFER TO ILLUSTRATION,LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-78010iS05C,15BFTE..XZU30#,320,330,34#199907-200212

sub12371-78060

12381STABILIZER, ENGINE MOUNTING

main12381-58010i15BFTE..XZU300,320,330,340199907-200005

sub12381-58011

main12381-58011i15BFTE..XZU300,320,330,340200005-200212

12382STABILIZER, ENGINE MOUNTING, LH

main12382-58010i15BFTE..XZU300,320,330,340199907-200005

sub12382-58011

main12382-58011i15BFTE..XZU300,320,330,340200005-200212

sub12382-58040

12511BRACKET, ALTERNATOR, NO.1

main12501-58060i15BFTE..XZU300,320,330,340199907-200212

main12501-78020iS05C..XZU302,307,342200010-200206

subS1250-82002

main12511-78030iS05C..XZU302,307,342200101-200206

W(24V-80A ALTERNATOR)

subS1251-14190

16603CPULLEY SUB-ASSY, IDLER

main16603-58010i15BFTE..XZU300,320,330199907-200212

16636CSHAFT, IDLER PULLEY, NO.1

main16636-58020i15BFTE..XZU300,320,330199907-200212

sub16636-58021

16639ASPACER, IDLER PULLEY

main16639-58010i15BFTE..XZU300,320,330199907-200212

16649APLATE, IDLER PULLEY COVER

main16649-58010i15BFTE..XZU300,320,330199907-200212

1228178020HANGER, ENGINE, NO.1

main12281-78020

9010508335

main90105-08335

9010510057

main90105-10057

9011910571

main90119-10571

9011912344

main90119-12344

9017910201

main90179-10201

9017912024

main90179-12024

9151261025

main91512-61025

91512B1020

main91512-B1020

9415081000

main94150-81000

24 parts on this diagram · 2 diagrams in section
