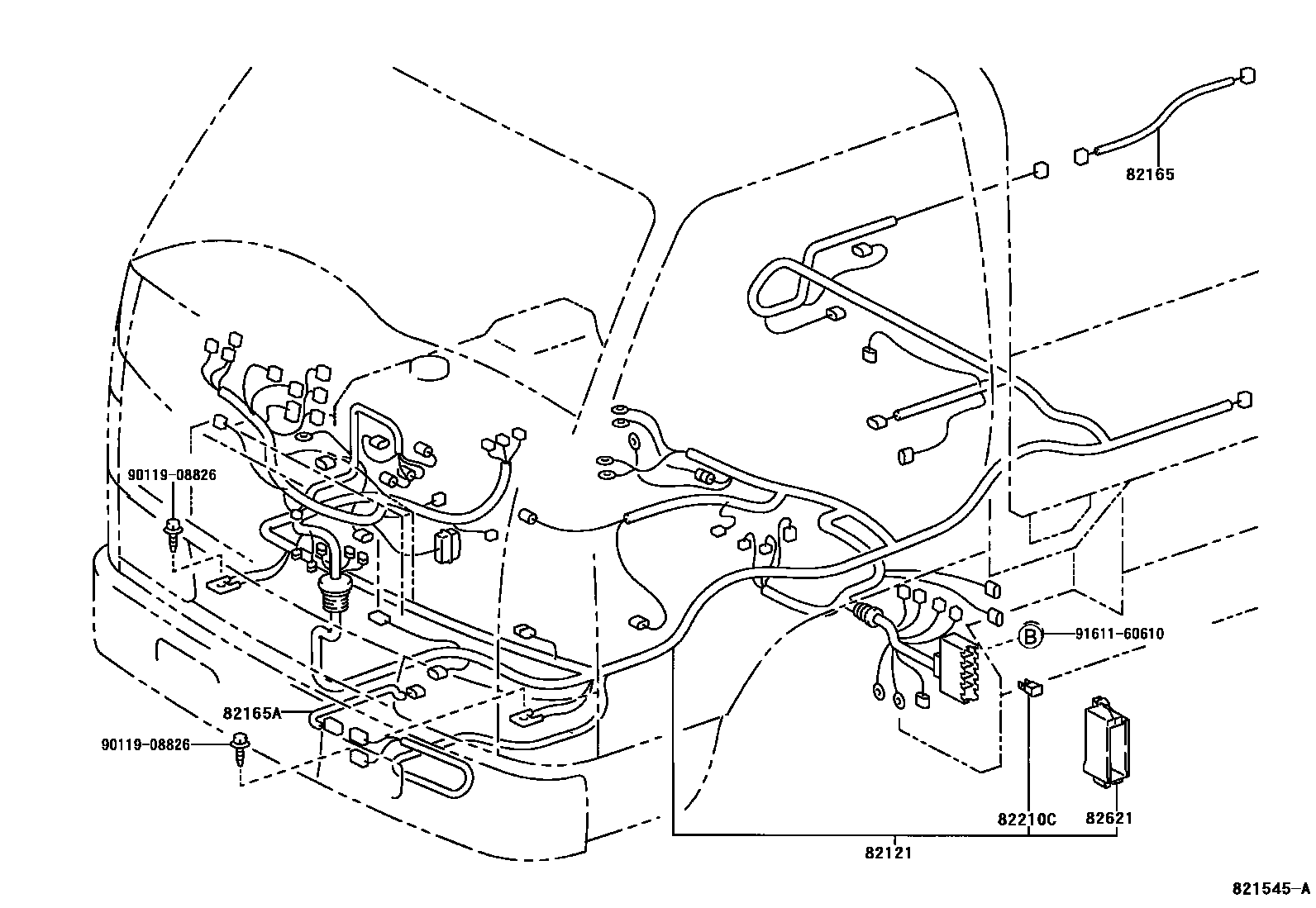

WIRING & CLAMP

0001 1ENGINE ROOM WIRE 0002 1ENGINE ROOM WIRE 0003 1ENGINE ROOM WIRE 0004 1DOOR, ROOF & FLOOR WIRE 0005 1COWL, INSTRUMENT PANEL WIRE 0006 1BODY 0007 1ENGINE ROOM WIRE CLAMP & BRAC0008 1ENGINE ROOM WIRE CLAMP & BRAC0009 1ENGINE ROOM WIRE CLAMP & BRAC0010 1CONNECTOR

82121WIRE, ENGINE

main82121-37320iBU101,141..SA199802-200212

main82121-37350iBU142..EUR199605-200110

main82121-37450iBU222..LHD;BU212..30T..GEN..IV3199610-199708

main82121-37451iBU222..LHD;BU212..30T..GEN..IV3199708-199805

main82121-37452iBU222..LHD..GEN;BU212..30T..TD..IV3;BU212..DSL..GEN..IV3199805-199908

main82121-37470iBU211..TW1199610-200212

main82121-37480iBU102199610-199703

main82121-37481iBU102199703-199908

main82121-37490iBU112199610-199703

main82121-37491iBU112199703-199908

main82121-3V080iBU212..LHD..40T..TD199505-199808

CHILE SPEC

main82121-3V370iRZU100..15T199908-200212

main82121-3V400iBU101..175T..GEN199905-200212

RUSSIA SPEC & COLD SPEC

main82121-3V530iBU212,222..DSL..SA200005-200212

main82126-37053iBU211,221..RHD..GEN..(CBU,IV3)199505-200212

main82126-37063iBU111,112..LHD..DM1199505-199610

main82126-37094iRZU100199703-199712

main82126-37095iRZU100..RHD199712-200009

main82126-37124iBU140..EUR199505-199610

main82126-37453iBU141..LHD;BU101..LHD..WT..IV3..TS200111-200212

ALGERIA SPEC

main82126-37562iBU140..RHD199505-199905

main82126-37572iBU110199505-199905

main82126-37592iBU100,140..LHD..GEN199505-199905

main82126-37612iBU100..175T..GEN;BU100,140..LHD..WT..GEN199505-199905

CHINA SPEC

main82126-37622iBU111..IV3199505-200212

main82126-37692iBU211..LHD199505-199606

CHINA SPEC

main82126-37693iBU211..LHD..T3199606-199708

CHINA SPEC

main82126-37694iBU211..LHD..T3199708-199905

CHINA SPEC

main82126-37695iBU211..LHD..T3199905-200212

COLD SPEC

main82126-37702iBU212..ARL199505-199703

main82126-37703iBU212,222..RHD..DSL..(ARL,GEN)199703-200212

main82126-37730iBU101,141..RHD..GEN199505-199905

main82126-37731iBU101,141..RHD..(ARL,GEN)199905-200212

main82126-37742iBU211,221..SA199505-200212

main82126-37750iBU101,141..LHD199610-199905

main82126-37751iBU101,141..LHD199905-200212

main82126-37790iBU141..LHD199505-199708

CHINA SPEC

main82126-37800iBU100..ARL199505-199908

main82126-37810iBU212,222..TAIW;BU211,221..LHD..T3199505

main82126-37842iBU211..RHD..40T..GEN..IV3199708-200212

KENYA SPEC

main82126-37843iBU212,222..RHD..GEN..IV3199703-200112

main82126-3V050iBU111..RHD199505-199905

main82126-3V051iBU111..RHD199905-200212

main82126-3V060iBU101..RHD..WT..IV3199505-199703

HONG KONG SPEC

main82126-3V070iBU111..RHD199505-199703

HONG KONG SPEC

main82126-3V080iBU111..LHD..CBU199505-199708

CHINA SPEC

main82126-3V090iBU142..ARL199505-199905

main82126-3V091iBU142..ARL199905-200212

main82126-3V160iBU212..LHD..40T..TD199505-200212

main82126-3V360iBU221..LHD;BU211..LHD..40T..IV3200111-200212

ALGERIA SPEC

82165WIRE, FRAME, NO.2

main82165-37030iBU142..TW1199610-200110

main82165-37060iBU100..175T199505-199610

main82165-37070iBU100,101,222..(175T,40T)..DSL..(ARL,GEN)199610

82165AWIRE, FRAME, NO.2

main82165-37020iBU141..LHD199505-200111

ALGERIA SPEC,NO.1

main82165-95400iBU141..LHD;BU101..LHD..WT..IV3..TS200111

ALGERIA SPEC,NO.2

82210CFUSIBLE LINK

main90982-08188iBU211..40T..GEN..IV3;BU211..LHD..40T..CBU;BU100,111,222..WT..GEN;BU101,221..RHD..WT..GEN..IV3;BU100,140,141,21#..LHD..(T3,TW2)..(175T,25T,30T)..GEN199505-199703

30A,TERM.:FEMALE,PNK

main90982-08189iRZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU212,222..ARL,EUR,SA,TAIW;BU10#,11#,140,141,211,221,YU210..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(CBR,DSL)..(CBU,IV3)199505

40A,TERM.:FEMALE,GRN

main90982-08190iRZU100;BU102,112..TAIW199610-200212

60A,TERM.:FEMALE,YEL

main90982-08202iBU10#,11#,14#,211,212,221,222,YU210..(ARL,EUR,GEN,SA)..(CBU,IV3)199610-200112

60A,TERM.:MALE,YEL

main90982-08203iBU213,223199908

80A,TERM.:MALE,BLK

main90982-08223iRZU100199703-200212

30A,TERM.:MALE,PNK

main90982-08228iBU141..LHD;BU101..LHD..WT..IV3..TS;BU102,111,142..(20T,30T)..GEN..IV3;BU211,212..RHD..40T..GEN..(IV2,IV3)200111

50A,TERM.:MALE,RED

main90982-08246iBU102,112199610-199703

100A,TERM.:MALE,BLUE

main90982-08254iBU101..175T..GEN;BU211,213,223,RZU100..LHD..(T3,T4)200112-200212

120A,TERM.:MALE,WHT

main90982-08257iBU211,213,223..LHD..T3200112-200212

40A,TERM.:MALE,GRN

82621COVER, FUSIBLE LINK

main82621-37020iBU111,141..LHD..(DM1,T3)199505-199708

CHINA SPEC

main82621-37030iBU142..20T,25T;BU100,101,110,111,140,141..DM1,T1,T2,T3,TW2199610

main82621-37040iBU141..LHD;BU101..LHD..WT..IV3..TS200111

ALGERIA SPEC

main82621-37060iBU102,112199610-199703

main82621-37061iRZU100199703

9011908826

main90119-08826

9161160610

main91611-60610

7 parts on this diagram · 10 diagrams in section
