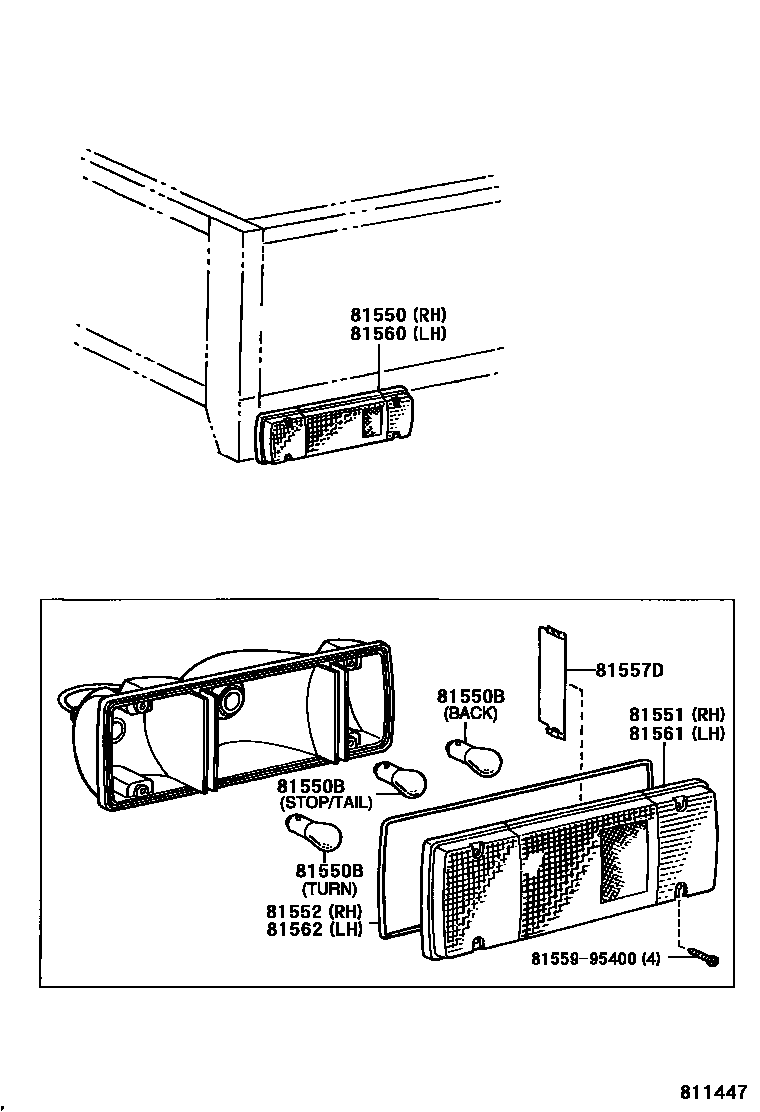

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-37031iBU141..LHD199505-200111

ALGERIA SPEC

main81550-37041iBU101,14#,211,212,222,YU210..ARL,EUR,SA200008-200212

sub81550-37042

main81550-37050iBU111,221..RHD..GEN;BU101,211..RHD..WT..(20T,40T)..GEN..IV3199505-199703

HONG KONG SPEC

main81550-37060iRZU100;BU102..TAIW;BU212..LHD..40T;BU100,101,111,112,140,141,21#,22#..(DM1,T1,T3,TW1,TW2)..DSL..(GEN,TAIW)199505-199705

main81550-37061iBU212..CBU199705-200212

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16014×4iBU111,141..LHD;BU212,222..RHD..GEN..IV3199905-200111

24V 21W

main90981-16015×2iBU100..175T..GEN;BU212,222..RHD..GEN..IV3;BU100,111,140,141,211..LHD..(DM1,DM6,T3)..WT199708-199905

24V 21/5W

main90981-16027×2iBU222..LHD..GEN;BU212..30T..TD..IV3;BU102,112,212..DSL..GEN..IV3;BU211..RHD..40T..GEN..(IV2,IV3)199708-199905

24V 25/10W

main99132-11210×4iBU102,222..TAIW;BU212..LHD..40T;BU212,RZU100..DSL,EFI;BU100,101,11#,14#,211,221,YU210..DM1,T1,T3,TW1,TW2199505-199705

12V 21W

main99132-11270×2iBU212..CBU199705-200212

12V 27W

main99132-21210×2iRZU100;BU142..20T,25T;BU212..LHD..40T..TD;BU212,222..ARL,EUR,SA;BU100,101,110,111,140,141,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3)199705-200008

12V 21/5W

main99132-21270×2iBU212..CBU199705-200212

12V 27/8W

main99134-11250×4iBU222..LHD..GEN;BU212..30T..TD..IV3;BU102,112,212..DSL..GEN..IV3;BU211..RHD..40T..GEN..(IV2,IV3)199708-199905

24V 25W

81551LENS, REAR COMBINATION LAMP, RH

main81551-60442iBU100..175T..GEN;BU100,111,140,211..LHD..(DM1,T3)..WT199708-199905

CHINA SPEC

main81551-60451iBU212..(25T,30T)..TD;BU212,RZU100..(DSL,EFI)..GEN;BU212,222..LHD..40T..TD..GEN;BU10#,111,112,14#,211,213,221,223..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..GEN199708

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-95400iBU102,142,211,213,223200212

81557DREFLECTOR, REAR COMBINATION LAMP

main81557-95403×2iBU212..RHD..IV3;BU111,141,221..LHD;BU101,14#,211,222,YU210..ARL,SA;BU101,211..LHD..WT..(20T,40T)..IV3200111-200212

81560LAMP ASSY, REAR COMBINATION, LH

main81560-37051iBU141..LHD199505-200111

ALGERIA SPEC

main81560-37061iBU101,14#,211,212,222,YU210..ARL,EUR,SA200008-200212

sub81560-37062

main81560-37070iBU111,221..RHD..GEN;BU101,211..RHD..WT..(20T,40T)..GEN..IV3199505-199703

HONG KONG SPEC

main81560-37080iRZU100;BU142,212..LHD..(25T,40T)..TD..GEN;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3)199705

main81560-37081iBU212..CBU199705-200212

81561LENS, REAR COMBINATION LAMP, LH

main81561-60372iBU141,221..LHD;BU101,211..LHD..WT..(20T,40T)..IV3200111-200212

ALGERIA SPEC

main81561-60381iRZU100;BU10#,111,112,140,141,21#,22#..(DM1,DM7,T1,T2,T3,TW1,TW2)..(GEN,TAIW)199505-199708

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-95400iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

8155995400MOULDING, REAR COMBINATION LAMP, RH

main81559-95400

9 parts on this diagram · 2 diagrams in section
