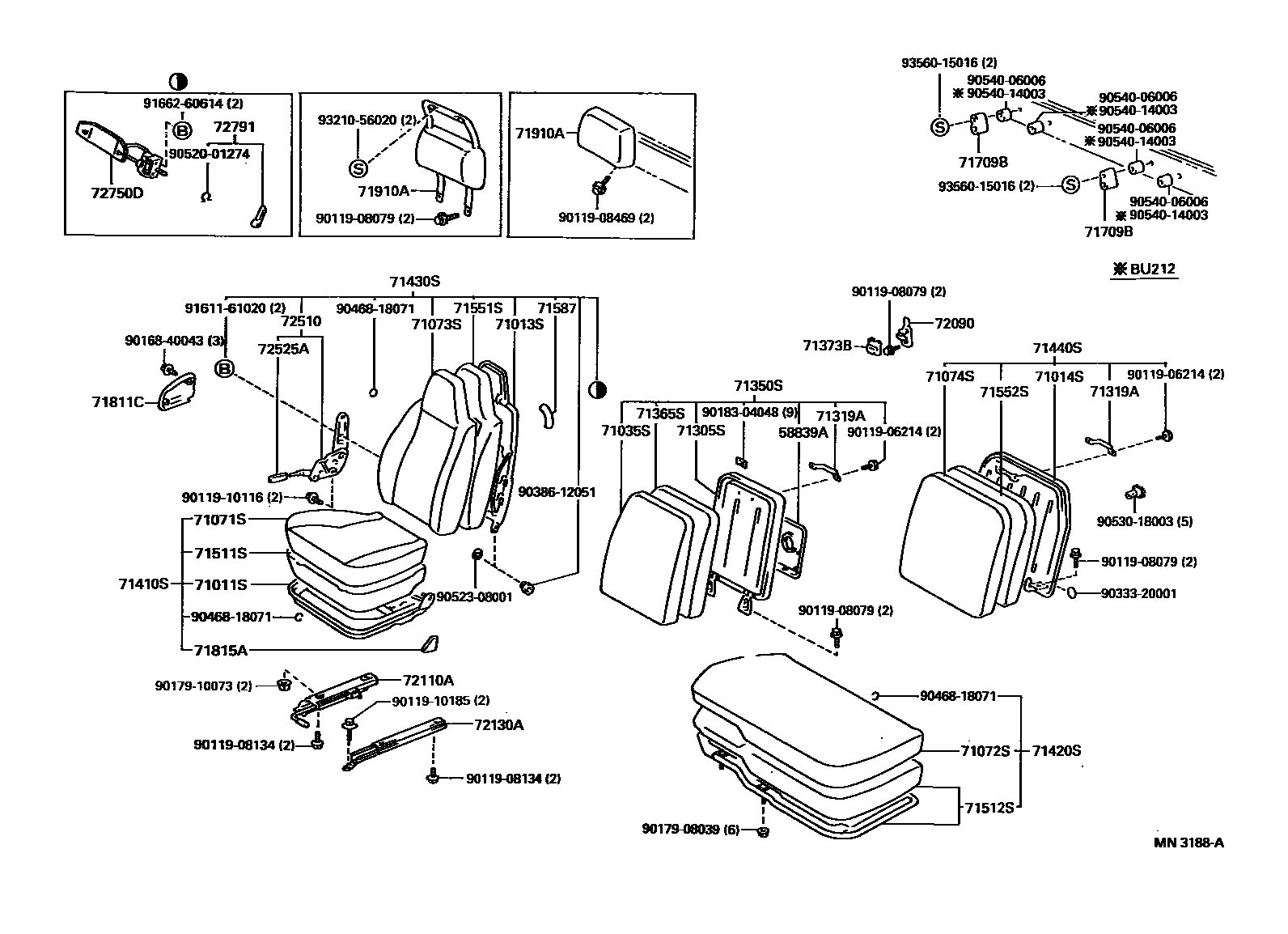

SEAT & SEAT TRACK

0001 1BU21#,22#..RHD(HONG KONG SPEC0002 1 0003 1 0004 1 0005 1 0006 1

58839ACOVER, CONSOLE BOX HOLE

main58839-95400-C0iBU100,110,142,212,222..(DM1,T2,T3)..ARL199505-200212

TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#

sub58839-95400¥2,300

sub58839-37010¥2,890

main58839-95400-C0iBU212,222..RHD..GEN..IV3199505-200110

TYPE A:REFER TO ILLUSTRATION, HONG KONG PACKAGE-*104,BLACK,TRIM1#

sub58839-95400¥2,300

sub58839-37010¥2,890

main58839-95400-C0iBU101..ARL..IV3199908-200212

BLACK,TRIM1#

sub58839-95400¥2,300

sub58839-37010¥2,890

main58839-95401-C0iBU212,222..RHD..GEN..IV3199505-200110

TYPE B:REFER TO ILLUSTRATION, HONG KONG PACKAGE-*104,BLACK,TRIM1#

sub58839-95401¥1,840

main58839-95401-C0iBU212,222..T3..ARL199505-200212

TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#

sub58839-95401¥1,840

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-37020iBU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD¥10,600199505-200110

sub71011-37060¥10,700

main71011-37030iBU211,221..RHD..40T..GEN..IV3¥14,000199505-200110

HONG KONG PACKAGE-*104

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-37050iBU10#,111,14#,211,212,221,222,YU210..RHD¥12,800199505-200110

main71013-37070iBU212,222..RHD..GEN..IV3¥20,600199505-200110

HONG KONG PACKAGE-*104

main71013-95415-01iBU101..LHD..WT..TS199911

W(FABRIC SEAT)-*104,BLACK,TRIM1#

main71013-95415-01iBU21#,221,223..LHD199505-200108

BLACK,TRIM1#

main71013-95416-01iBU10#,111,112,14#,RZU100..LHD199505-200108

BLACK,TRIM1#

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-95417-01iBU100,101..ARL..IV3199708-200212

BLACK,TRIM1#

main71014-95419-01iBU211,221..RHD..40T..GEN..IV3199505-200110

HONG KONG PACKAGE-*104,BLACK,TRIM1#

main71014-95419-01iBU212,222..T3..ARL199505-200212

BLACK,TRIM1#

main71014-95420-01iBU100,101..ARL..CBU;BU101,102,111,14#,RZU100..RHD..(GEN,SA)199505

BLACK,TRIM1#

main71014-95421-01iBU212..TW1;BU211,212,221,222,YU210..RHD..(GEN,SA)199505

BLACK,TRIM1#

main71014-95422iBU102..15T;BU212..LHD..40T..TD;BU100,101,111,14#,211,221,RZU100..LHD..GEN¥14,000199505

main71014-95424iBU140,142..EUR;BU212..LHD..DSL;BU212..30T..TD..IV3;BU102,112,213,222,223..LHD..(20T,30T,40T)¥14,000199505-200108

71035SCOVER, FRONT SEATBACK, CENTER

main71095-37090-B0iBU100,101,110,142..20T..ARL199505-200212

BLUISH GRAY,TRIM1#

main71095-37120-B0iBU212,222..T3..ARL199505-200212

BLUISH GRAY,TRIM1#

main71095-37130-B0iBU211,221..RHD..40T..GEN..IV3199505-199610

HONG KONG PACKAGE-*104,DK. BLUE,TRIM1#

main71095-37150-B0iBU211,221..RHD..40T..GEN..IV3199610-200110

HONG KONG PACKAGE-*104,DK. BLUE,TRIM1#

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-37240-B0iBU101,102,111,14#,211,212,221,222,RZU100,YU210..RHD..(GEN,SA)199505

BLUISH GRAY,TRIM1#

main71071-37240-B4iBU212..RHD..GEN..IV3200110-200212

W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71071-37270-B0iBU211,221..RHD..40T..GEN..IV3199505-199610

HONG KONG PACKAGE-*104,DK. BLUE,TRIM1#

main71071-37290-B0iBU100,101,110,142,212,222..ARL199505-200212

BLUISH GRAY,TRIM1#

main71071-37300-B0iBU100,101,111,14#..LHD..GEN199505-200212

DK. BLUE,TRIM1#

main71071-37310-B0iBU100,101,111,14#..LHD..GEN199505-200212

W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

sub71071-37310

main71071-37320-B0iBU142..EUR;RZU100..15T;BU101..LHD..TS199610-200212

SAUDI ARABIA,GULF SPEC,BLUISH GRAY,TRIM1#

sub71071-37321¥26,800

main71071-37320-B0iBU102,112,140,142..EUR,TAIW199505-199610

BLUISH GRAY,TRIM1#

sub71071-37321¥26,800

main71071-37320-B0iBU100,111,140,141..LHD..(DM1,T3,TW2)..GEN199505-200212

HONG KONG PACKAGE-*104,BLUISH GRAY,TRIM1#

sub71071-37321¥26,800

main71071-37330-B0iBU211,221..LHD199505

BLUISH GRAY,TRIM1#

main71071-37340-B0iBU211,221..LHD199505

W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71071-37350-B0iBU211,221..LHD199505-199911

W(*ELR & FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71071-37350-B0iBU212..LHD..DSL;BU213,222,223..LHD;BU212..30T..TD..IV3199505-200108

BLUISH GRAY,TRIM1#

main71071-37380-B0iBU211,221..LHD..T3199505-199804

W(*ELR),BLUISH GRAY,TRIM1#

main71071-37380-B0iBU212..LHD..40T..TD199505-200212

BLUISH GRAY,TRIM1#

main71071-37410-B1iBU101..LHD..TS;BU111,141..LHD..(DM1,T3)199511-200212

W(*ELR),BLUISH GRAY,TRIM1#

sub71071-37410

main71071-37450-B0iBU212,222..RHD..GEN..IV3199610-200110

HONG KONG PACKAGE-*104,DK. BLUE,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-25030-B0iBU140..EUR199505-199605

BLUISH GRAY,TRIM1#

sub71072-25030

main71072-37360-B0iBU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..GEN199505

BLUISH GRAY,TRIM1#

main71072-37370-B0iBU102..15T;BU100,101,111,14#,211,221..LHD..GEN199505

W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

sub71072-37370¥19,800

main71072-37370-B0iRZU100..15T199908-200212

BLUISH GRAY,TRIM1#

sub71072-37370¥19,800

main71072-37380-B0iBU213,223199505-200108

BLUISH GRAY,TRIM1#

main71072-37390-B0iBU101..LHD..TS;BU111,141,211,221..LHD..(DM1,T3,TW1)199505-199911

SAUDI ARABIA,GULF SPEC & W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71072-37400-B0iBU100,101,110,142..ARL199505-200212

BLUISH GRAY,TRIM1#

main71072-37410-B0iBU101,111,140,141,RZU100..RHD199505-200212

BLUISH GRAY,TRIM1#

main71072-37480-B0iBU212,222..ARL199505-200212

BLUISH GRAY,TRIM1#

main71072-37490-B0iBU211,221..RHD..40T..GEN..IV3199505-199610

HONG KONG PACKAGE-*104,DK. BLUE,TRIM1#

main71072-37500-B0iBU211,212,221,222,YU210..RHD..(GEN,SA)199505

BLUISH GRAY,TRIM1#

main71072-37500-B2iBU212..RHD..GEN..IV3200110-200212

FABRIC SEAT,BLUISH GRAY,TRIM1#

main71072-37570-B0iBU211,221..RHD..40T..GEN..IV3199610-200110

HONG KONG PACKAGE-*104,DK. BLUE,TRIM1#

main71072-37590-B1iBU112199610-199908

BLUISH GRAY,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-37280-B0iBU100,101,110,142,212,222..(DM1,T2,T3)..ARL199505-200212

BLUISH GRAY,TRIM1#

main71073-37290-B0iBU101,102,111,14#,211,212,221,222,RZU100,YU210..RHD..(GEN,SA)199505

BLUISH GRAY,TRIM1#

main71073-37290-B3iBU212..RHD..GEN..IV3200110-200212

FABRIC SEAT,BLUISH GRAY,TRIM1#

main71073-37320-B0iBU211,221..RHD..40T..GEN..IV3199505-199610

HONG KONG PACKAGE-*104,BLACK,TRIM1#

main71073-37330-B0iBU100,101,212..(TW1,TW2)..ARL199505-200212

BLUISH GRAY,TRIM1#

main71073-37340-B0iBU100,101,111,112,14#..LHD..(GEN,TAIW)199505-200212

BLUISH GRAY,TRIM1#

main71073-37370-B0iBU213,223199505-200108

BLUISH GRAY,TRIM1#

main71073-37370-B0iBU101..LHD..WT..TS199911-200212

W(*ELR & FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71073-37370-B0iBU211,221..LHD199505

W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71073-37470-B0iBU212,222..RHD..GEN..IV3199610-200110

HONG KONG PACKAGE-*104,DK. BLUE,TRIM1#

main71074-37550-B0iBU101,111,14#..LHD..GEN199505-200212

W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71074-37550-B0iBU102,112,140,142..EUR,TAIW199505-200212

BLUISH GRAY,TRIM1#

main71074-37580-B0iBU211,221..LHD;BU212..LHD..40T..TD199505

BLUISH GRAY,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-37340-B0iBU101,102,111,14#,RZU100..RHD..(GEN,SA)199505

BLUISH GRAY,TRIM1#

main71073-37370-B0iBU212..TW1199505-200212

BLUISH GRAY,TRIM1#

main71074-37430-B0iBU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..(DM1,DM6,T3)..GEN199505

BLUISH GRAY,TRIM1#

main71074-37440-B0iBU100,101,111,211..LHD..(DM1,DM6,T3);BU102,14#,221..LHD..(15T,25T,40T)..GEN199505

W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71074-37440-B0iRZU100..15T199908-200212

BLUISH GRAY,TRIM1#

main71074-37450-B0iBU142..T3..EUR;BU212..30T..TD..IV3;BU212..DSL..GEN..IV3;BU102,213,222,223..LHD..(20T,30T,40T)199505-200108

BLUISH GRAY,TRIM1#

main71074-37460-B0iBU100,101,211..(TW1,TW2)..GEN199505-200212

BLUISH GRAY,TRIM1#

main71074-37470-B0iBU100,101,142,211..LHD..(TW1,TW2)199505-200212

W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71074-37480-B0iBU100,101,110,142..20T..ARL199505-200212

BLUISH GRAY,TRIM1#

main71074-37550-B0iBU100..175T..GEN199511-199905

W(*ELR & FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71074-37550-B0iBU102..15T;BU100,101..ARL..CBU199505-200212

BLUISH GRAY,TRIM1#

main71074-37550-B0iBU101..LHD..ST..TS;BU100,111,140,141..LHD..(DM1,T3)..GEN199511-200212

SAUDI ARABIA,GULF SPEC & W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71074-37560-B0iBU212,222..T3..ARL199505-200212

BLUISH GRAY,TRIM1#

main71074-37570-B0iBU211,221..RHD..40T..GEN..IV3199505-199610

HONG KONG PACKAGE-*104,DK.BLUE,TRIM1#

main71074-37580-B0iBU211,212,221,222,YU210..RHD..(GEN,SA)199505

BLUISH GRAY,TRIM1#

main71074-37580-B0iBU211,221..LHD199505-199804

W(*ELR),BLUISH GRAY,TRIM1#

main71074-37580-B4iBU212..RHD..GEN..IV3200110-200212

FABRIC SEAT,BLUISH GRAY,TRIM1#

main71074-37610-B0iBU211,221..RHD..40T..GEN..IV3199610-200110

HONG KONG PACKAGE-*104,DK. BLUE,TRIM1#

main71074-37650-B1iBU112199610-199908

BLUISH GRAY,TRIM1#

71305SFRAME SUB-ASSY, CENTER SEATBACK

main71305-95400-01iBU100,101..ARL..IV3199708-200212

BLACK,TRIM1#

main71305-95401-01iBU212,222..RHD..GEN..IV3199505-200110

HONG KONG PACKAGE-*104,BLACK,TRIM1#

main71305-95401-01iBU212,222..T3..ARL199505-200212

BLACK,TRIM1#

71319ASTRIKER, FRONT SEATBACK

main71319-92602iBU211,212..TW1¥940199505

main71319-95402iBU100,101,110,142..20T..ARL¥680199505

main71319-95403iBU212,222..T3..ARL¥680199505

main71319-95403iBU212,222..RHD..GEN..IV3¥680199505-200110

HONG KONG PACKAGE-*104

main71319-95404iBU101..ARL..CBU;BU10#,111,14#,RZU100..GEN,SA¥680199505-200108

main71319-95405iBU222..TD;BU212..GEN;BU211,221,YU210..T3¥680199505-200110

main71319-95405iBU101..LHD..WT..TS¥680199911

W(*ELR & FABRIC SEAT)-*104

71350SBACK ASSY, FRONT SEAT, CENTER

main71350-37090-B0iBU100,101,110,142..20T..ARL199505-200212

BLUISH GRAY,TRIM1#

main71350-37120-B0iBU212,222..T3..ARL199505-200212

BLUISH GRAY,TRIM1#

main71350-37130-B0iBU211,221..RHD..40T..GEN..IV3199505-199610

HONG KONG PACKAGE-*104,DK. BLUE,TRIM1#

main71350-37150-B0iBU212,222..RHD..GEN..IV3199610-200110

HONG KONG PACKAGE-*104,DK. BLUE,TRIM1#

sub71350-37150¥14,400

71365SPAD, CENTER SEATBACK

main71365-95400iBU100,101,110,142..20T..ARL¥4,030199505

main71552-95408iBU212,222..RHD..GEN..IV3¥5,900199505-200110

HONG KONG PACKAGE-*104

71373BCOVER, FRONT SEATBACK LOCK

main71373-95400-B0iBU212,222..RHD..GEN..IV3199708-200110

HONG KONG SPEC,GRAY,TRIM1#

sub71373-95400¥1,060

main71373-95400-B0iBU100,101,110,142,212,222..(DM1,T2,T3)..ARL199505-200212

GRAY,TRIM1#

sub71373-95400¥1,060

main71373-95400-B0iBU211,221..RHD..40T..GEN..IV3199505-199703

HONG KONG PACKAGE-*104,GRAY,TRIM1#

sub71373-95400¥1,060

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-37280-B3iBU10#,111,14#,211,212,221,222,YU210..RHD..(GEN,SA)200110-200212

BLUISH GRAY,TRIM1#

main71410-37310-B0iBU211,221..RHD..40T..GEN..IV3199505-199610

HONG KONG PACKAGE-*104,DK. BLUE,TRIM1#

main71410-37330-B0iBU100,101,110,142,212,222..ARL199505-200212

BLUISH GRAY,TRIM1#

main71410-37350-B0iBU100,101,111,14#..LHD..GEN199505-200212

BLUISH GRAY,TRIM1#

main71410-37360-B0iBU100,101,111,14#..LHD..GEN199505-200212

W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

sub71410-37360

main71410-37370-B0iRZU100199505-200212

SAUDI ARABIA,GULF SPEC & W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71410-37370-B0iBU102,112,140,142..EUR,TAIW199505-200212

BLUISH GRAY,TRIM1#

main71410-37380-B0iBU211,221..LHD199505

BLUISH GRAY,TRIM1#

main71410-37390-B0iBU211,221..LHD199505

W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71410-37400-B0iBU211..LHD..T3;BU101,221..LHD..WT..(20T,40T)199505-199911

W(*ELR & FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71410-37400-B0iBU222;BU212..LHD..30T199505-199703

BLUISH GRAY,TRIM1#

main71410-37400-B0iBU211..TW1199610-200212

SAUDI ARABIA,GULF SPEC & W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71410-37410-B0iBU212..LHD..40T..TD199505-200212

BLUISH GRAY,TRIM1#

main71410-37420-B1iBU101..LHD..TS;BU111,141..LHD..(DM1,T3)199511-200212

W(*ELR),BLUISH GRAY,TRIM1#

main71410-37440-B0iBU211,221..LHD..T3199505-199804

W(*ELR),BLUISH GRAY,TRIM1#

main71410-37500-B0iBU211,221..RHD..40T..GEN..IV3199610-200110

HONG KONG PACKAGE-*104,DK. BLUE,TRIM1#

main71410-37560-B0iBU222..LHD..GEN;BU212..30T..TD..IV3199703-199908

BLUISH GRAY,TRIM1#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-25030-B0iBU140..EUR199505-199605

BLUISH GRAY,TRIM1#

main71420-37360-B0iBU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..GEN199505

BLUISH GRAY,TRIM1#

main71420-37370-B0iRZU100..15T199908-200212

BLUISH GRAY,TRIM1#

sub71420-37370¥53,300

main71420-37370-B0iBU102..15T;BU100,101,111,14#,211,221..LHD..GEN199505

W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

sub71420-37370¥53,300

main71420-37380-B0iBU213,223199505-200108

BLUISH GRAY,TRIM1#

main71420-37390-B0iBU101..LHD..ST..TS;BU100,111,140,141,211,221..LHD..(DM1,T3,TW1,TW2)..GEN199505-199911

SAUDI ARABIA,GULF SPEC & W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71420-37400-B0iBU100,101,110,142..ARL199505-200212

BLUISH GRAY,TRIM1#

main71420-37410-B0iBU101,102,111,14#,RZU100..RHD..(GEN,SA)199505

BLUISH GRAY,TRIM1#

main71420-37480-B0iBU212,222..ARL199505-200212

BLUISH GRAY,TRIM1#

main71420-37490-B0iBU211,221..RHD..40T..GEN..IV3199505-199610

HONG KONG PACKAGE-*104,DK. BLUE,TRIM1#

main71420-37500-B0iBU211,212,221,222,YU210..RHD..(GEN,SA)199505-200110

BLUISH GRAY,TRIM1#

sub71420-37500

main71420-37500-B1iBU211,212,221,222,YU210..RHD..(GEN,SA)200110

BLUISH GRAY,TRIM1#

sub71420-37500

main71420-37570-B0iBU211,221..RHD..40T..GEN..IV3199610-200110

HONG KONG PACKAGE-*104,DK. BLUE,TRIM1#

main71420-37590-B0iBU112199610-199908

BLUISH GRAY,TRIM1#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-37350-B0iBU211,221..RHD..40T..GEN..IV3199505-199610

HONG KONG PACKAGE-*104,DK. BLUE,TRIM1#

main71430-37360-B0iBU101,102,111,14#,211,212,221,222,RZU100,YU210..RHD..(GEN,SA)199505

BLUISH GRAY,TRIM1#

main71430-37360-B1iBU212..RHD..GEN..IV3200110-200212

FABRIC SEAT,BLUISH GRAY,TRIM1#

main71430-37370-B0iBU100,101,110,142,212,222..(DM1,T2,T3)..ARL199505-200212

BLUISH GRAY,TRIM1#

main71430-37390-B0iBU100,101,212..(TW1,TW2)..ARL199505-200212

BLUISH GRAY,TRIM1#

main71430-37400-B0iBU100,101,111,112,14#..LHD..(GEN,TAIW)199505-200212

BLUISH GRAY,TRIM1#

main71430-37410-B0iBU140..LHD..GEN;BU10#,111,141,142..LHD..(EUR,GEN)199505-200212

W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71430-37410-B0iBU102,112,140..EUR,TAIW199505-200212

BLUISH GRAY,TRIM1#

main71430-37420-B0iBU211,221..LHD..T3;BU212..LHD..40T..TD199505

BLUISH GRAY,TRIM1#

main71430-37430-B0iBU212..LHD..DSL;BU213,222,223..LHD;BU212..30T..TD..IV3199505-200108

BLUISH GRAY,TRIM1#

main71430-37430-B0iBU101..LHD..WT..TS199911-200212

W(*ELR & FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71430-37430-B0iBU211,221..LHD..T3199505

W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71430-37560-B0iBU212,222..RHD..GEN..IV3199610-200110

HONG KONG PACKAGE-*104,DK. BLUE,TRIM1#

main71430-37670-B0iBU211..TW1199610-200009

BLUISH GRAY,TRIM1#

sub71430-37670

main71430-37670-B1iBU211..TW1200009-200212

BLUISH GRAY,TRIM1#

sub71430-37670

main71430-37680-B0iBU211..TW1199610-200009

W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

sub71430-37680

main71430-37680-B1iBU211..TW1200009-200212

W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

sub71430-37680

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-37460-B0iBU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..(DM1,DM6,T3)..GEN199505

BLUISH GRAY,TRIM1#

main71440-37500-B0iBU100,101,111,211..LHD..(DM1,DM6,T3);BU102,14#,221..LHD..(15T,25T,40T)..GEN199505

W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71440-37500-B0iRZU100..15T199908-200212

BLUISH GRAY,TRIM1#

main71440-37510-B0iBU213,223199505-200108

BLUISH GRAY,TRIM1#

main71440-37520-B0iBU100,101,211..(TW1,TW2)..GEN199505-200212

BLUISH GRAY,TRIM1#

main71440-37530-B0iBU100,101,211..(TW1,TW2)..GEN199505-200212

W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71440-37540-B0iBU100,101,110,142..20T..ARL199505-200212

BLUISH GRAY,TRIM1#

main71440-37600-B0iBU101,102,111,14#,RZU100..RHD..(GEN,SA)199505

BLUISH GRAY,TRIM1#

main71440-37610-B0iBU100,101..ARL..CBU199505-200212

BLUISH GRAY,TRIM1#

main71440-37630-B0iBU212,222..T3..ARL199505-200212

BLUISH GRAY,TRIM1#

main71440-37640-B0iBU211,221..RHD..40T..GEN..IV3199505-199610

HONG KONG PACKAGE-*104,DK. BLUE,TRIM1#

main71440-37650-B0iBU211,212,221,222,YU210..RHD..(GEN,SA)199505-200110

BLUISH GRAY,TRIM1#

sub71440-37650

main71440-37650-B1iBU211,212,221,222,YU210..RHD..(GEN,SA)200110

BLUISH GRAY,TRIM1#

sub71440-37650

main71440-37690-B0iBU212..TW1199505-200009

BLUISH GRAY,TRIM1#

sub71440-37690¥45,100

main71440-37690-B1iBU212..TW1200009-200212

BLUISH GRAY,TRIM1#

sub71440-37690¥45,100

main71440-37740-B0iBU211,221..RHD..40T..GEN..IV3199610-200110

HONG KONG PACKAGE-*104,DK. BLUE,TRIM1#

main71440-37780-B0iBU112199610-199908

BLUISH GRAY,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-37010iBU212,213,223..LHD¥23,800199505-200108

main71501-95400iBU101,111,14#,RZU100..LHD..GEN¥11,800199505-200108

main71501-95401iBU211,221..LHD¥12,600199911

W(*ELR & FABRIC SEAT)-*104

main71501-95401iBU211,22#..LHD;BU212..LHD..30T¥12,600199505-199911

main71511-37020iBU101,102,111,14#,211,212,221,222,RZU100,YU210..RHD..(GEN,SA)¥14,400199505-200110

main71511-37040iBU212,222..RHD..GEN..IV3¥12,000199505-200110

HONG KONG PACKAGE-*104

main71511-37060iBU100,101,110,142,212,222..ARL¥16,000199505

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-37020iBU10#,110,111,14#,RZU100..RHD¥26,800199505

main71502-37050iBU211,212,221,222,YU210..RHD¥29,100199505-200110

main71511-37040iBU102,112,212,222..TAIW¥12,000199505-200108

main71512-25010iBU140..EUR¥12,700199505-199605

main71512-37030iBU102..15T;BU212..LHD..40T..TD;BU100,101,111,14#,211,221,RZU100..LHD..GEN¥14,900199505

main71512-37050iBU101..LHD..TS;BU111,141,211,221..LHD..(DM1,T3,TW1)¥15,600199505-199911

SAUDI ARABIA,GULF SPEC & W(FABRIC SEAT)-*104

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-37040iBU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD¥10,700199505-200110

main71551-37060iBU211,221..RHD..40T..GEN..IV3¥10,900199505-200110

HONG KONG PACKAGE-*104

main71552-95403iBU101,111,14#,RZU100..LHD..GEN¥15,400199505-200108

main71552-95405iBU211,212,221..LHD¥20,200199911

W(*ELR & FABRIC SEAT)-*104

main71552-95405iBU213,223¥20,200199505-200108

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-37020iBU10#,111,112,14#,21#,22#,RZU100..LHD¥11,900199505-200108

main71552-95403iBU100,101..ARL..CBU;BU101,102,111,14#,RZU100..RHD..(GEN,SA)¥15,400199505

main71552-95405iBU212..TW1;BU211,212,221,222,YU210..RHD..(GEN,SA)¥20,200199505-200110

main71552-95407iBU100,101,110,142..20T..ARL¥5,900199505

main71552-95408iBU212,222..T3..ARL¥5,900199505

main71552-95408iBU211,221..RHD..40T..GEN..IV3¥5,900199505-200110

HONG KONG PACKAGE-*104

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-95J00iBU211,221..RHD..40T..GEN..IV3¥330199505-200110

HONG KONG PACKAGE-*104

main71587-95J00iBU140,142..EUR;BU212..LHD..DSL;BU212..30T..TD..IV3;BU102,112,213,222,223..LHD..(20T,30T,40T)¥330199505-200108

71709BCUSHION SUB-ASSY, SEAT SUPPORT

main71709-95402iBU21#,22#,YU210..T3¥660199505-200110

71811CCOVER, RECLINING ADJUSTER, RH

main71811-95J00-B0iBU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD199505-200310

BLUISH GRAY,TRIM1#

sub71811-95J00¥2,370

71815ACOVER, FRONT SEAT CUSHION HINGE, RH

main71815-95J00-B0iBU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD199505

GRAY,TRIM1#

sub71815-95J00¥750

71910AHEADREST ASSY, FRONT SEAT

main71910-26020-B1iBU100,101,142..TW1,TW2199505-200212

GRAY,TRIM1#

main71910-37090-B0iRZU100..15T;BU101..ARL..IV3199908-200212

BLUISH GRAY,TRIM1#

main71910-37090-B0iBU142..(20T,25T)..(ARL,GEN);BU101,111,141..LHD..(DM1,T3)199505-200212

W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71910-37110-B0iBU100,101,111,140,141..(DM1,T1,T3)..GEN199505-199610

BLUISH GRAY,TRIM1#

main71910-37120-B0iBU212,213,222,223..T3..(DSL,TDEFI)..(ARL,GEN)..IV3199505-200108

BLUISH GRAY,TRIM1#

main71910-37120-B0iBU211,221..LHD..T3199505

W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71910-37130-J0iBU211,221..RHD..40T..GEN..IV3199505-199610

HONG KONG PACKAGE-*104,DK. BLUE,TRIM1#

main71910-37131-J1iBU212,222..RHD..GEN..IV3199610-200110

HONG KONG PACKAGE-*104,DK. BLUE,TRIM1#

main71910-37140-B0iBU211,221,YU210..T3;BU212..LHD..40T..TD;BU212,222..RHD..(GEN,SA)199505

BLUISH GRAY,TRIM1#

main71910-92600iBU211,212..TW1¥14,000200009-200212

main71910-92600-B0iBU211,212..TW1199505-200009

BLUISH GRAY,TRIM1#

72090LOCK ASSY, FRONT SEATBACK

main72090-95400-B0iBU100..CBU;BU100..GEN..IV3;BU101,212..(TW1,TW2)..ARL;BU101,102,111,112,14#,21#,22#,RZU100,YU210..EUR,GEN,SA,TAIW199505-200212

GRAY,TRIM1#

sub72090-95400¥6,800

main72090-95400-B0iBU211,221..RHD..40T..GEN..IV3199505-199703

HONG KONG PACKAGE-*104,GRAY,TRIM1#

sub72090-95400¥6,800

main72090-95400-B0iBU212,222..RHD..GEN..IV3199708-200110

HONG KONG SPEC,GRAY,TRIM1#

sub72090-95400¥6,800

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-37010iBU10#,111,14#,211,212,221,222,RZU100,YU210..RHD¥9,200199505-200110

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-37010iBU212..DSL;BU212..TD..CBU;BU10#,111,14#,211,221,222,YU210..RHD¥7,100199505-200110

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-37010-B0iBU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD199505

BLUISH GRAY,TRIM1#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-95J01-B0iBU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD199505

BLUISH GRAY,TRIM1#

sub72525-95J01¥720

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-37030iBU211,221..RHD..40T..GEN..IV3¥5,700199505-200110

HONG KONG PACKAGE-*104

72791LEVER, LUMBAR SUPPORT

main72791-20030-B0iBU212,222..RHD..GEN..IV3199505-200110

HONG KONG PACKAGE-*104,GRAY,TRIM1#

sub72791-20030¥1,160

9011906214

main90119-06214¥120

9011908079

main90119-08079¥120

9011908134

main90119-08134¥80

9011908469

main90119-08469¥80

9011910116

main90119-10116¥240

9011910185

main90119-10185¥240

9016840043

main90168-40043¥80

9017908039

main90179-08039¥90

9017910073

main90179-10073¥160

9018304048

main90183-04048¥80

9033320001

main90333-20001¥70

9038612051

main90386-12051¥190

9046818071

main90468-18071¥160

9052001274

main90520-01274¥160

9052308001

main90523-08001¥160

9053018003

main90530-18003¥130

9054006006

main90540-06006¥330

9054014003

main90540-14003¥330

9161161020

main91611-61020¥240

9166260614

main91662-60614¥110

9321056020

main93210-56020¥120

9356015016

main93560-15016¥70

56 parts on this diagram · 6 diagrams in section
