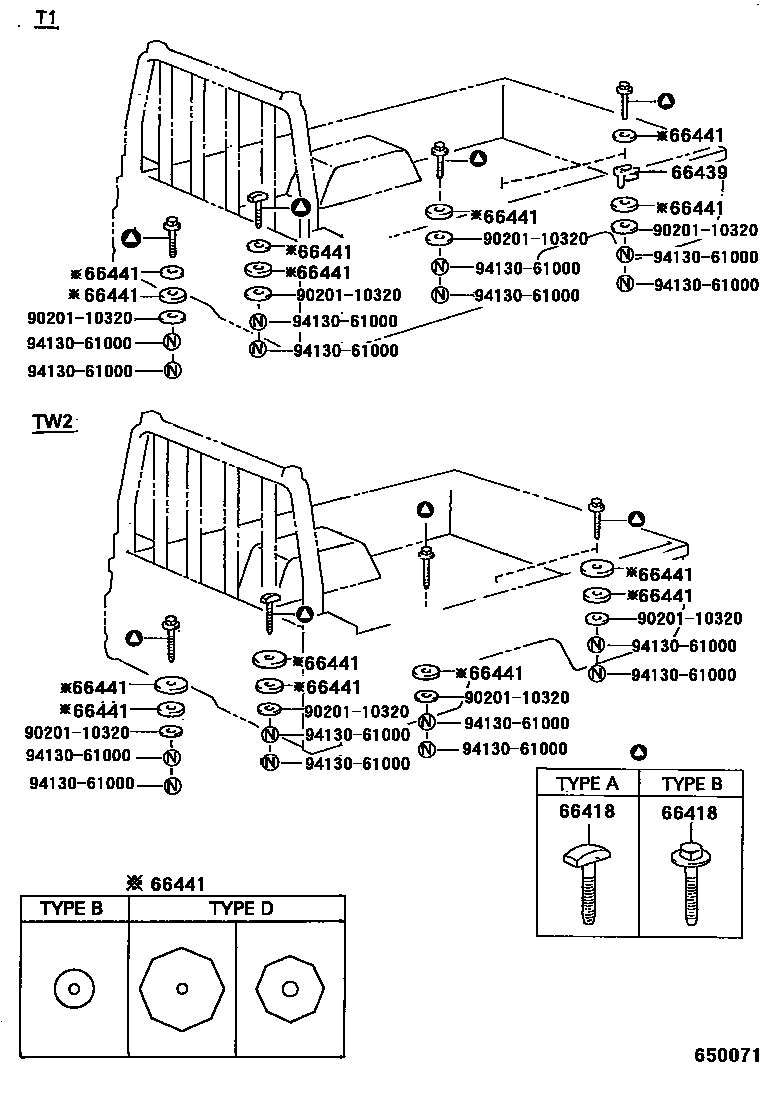

REAR BODY MOUNTING

0001 1 0002 1 0003 1 0004 1

66418BOLT, MOUNTING

main66418-95400×4iBU101..T1..CBU199505-200008

THAILAND SPEC,TYPE A

main66461-92820×2iBU211,212..CBU199505

L=363

main66463-92707×2iBU211,212..CBU199803

L=336

main90117-12009×2iBU100,101..T3..CBU199505-199711

L=340

main90117-12010×2iBU100,101..T3..CBU199505

L=397

main90117-12020×2iBU100,101..T3..CBU199505

L=402

main90117-12021×4iBU140,141..CBU199803

L=346

main90117-12022×2iBU140,141..CBU199803

L=300

main90117-12023×4iBU140,141..CBU199505-199803

L=380

main90117-12025×2iBU221..CBU199505

L=365

main90117-12026×2iBU221..CBU199505

L=335

main90117-12027×2iBU211,212,221..CBU199505

L=310

main90119-10091×6iBU101..T1..CBU199505-200008

THAILAND SPEC,TYPE B

main90119-10490×6iBU101..T1..CBU199505

TYPE B

66439SHIM, SUPPORT

main66439-95400iBU101..T1..CBU199505

66441SHIM, MOUNTING, NO.1

main65128-95400×2iBU100,101..T3..CBU199505

TYPE A

main66441-95A01×8iBU101..T1..CBU199505

TYPE D

main66442-95403×9iBU100,101..T3..CBU199505

W(RR *STAC),TYPE B

main66443-95405×2iBU100,101..T3..CBU199505

W(RR *STAC),TYPE C,90 X 55

main66443-95410iBU100,101..T3..CBU199505

W(RR *STAC),TYPE C,74 X 55

main90564-10167×10iBU101..T1..CBU199505-200008

TYPE B

main90564-15142×9iBU100,101..T3..CBU199505

TYPE D

9020110320

main90201-10320

9413061000

main94130-61000

5 parts on this diagram · 4 diagrams in section
