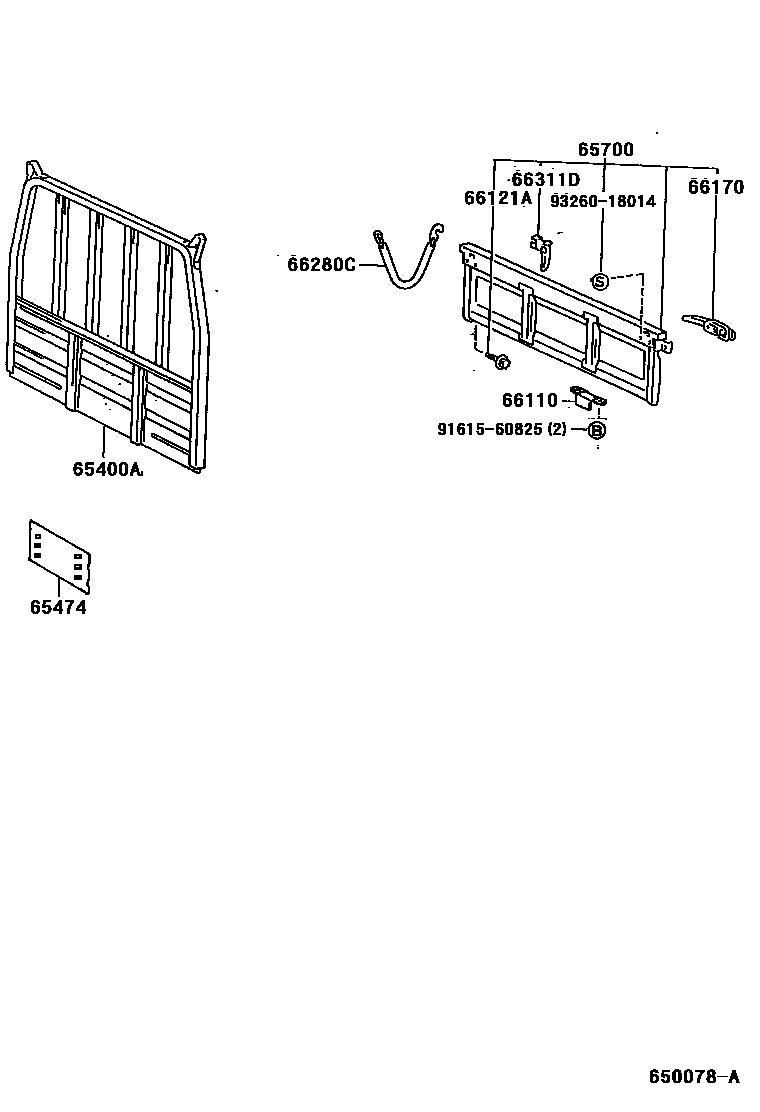

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1 0003 1 0005 1

65400AGUARD ASSY, REAR BODY

main65400-37011iBU101..T1..CBU199505

main65400-37042iBU100,101..WT..CBU199505

main65400-37052iBU100,101..WT..CBU199505

W(RR *STAC)

main65400-37062iBU100,101..T3..ST..CBU199505

main65400-37072iBU100,101..T3..ST..CBU199505

W(RR *STAC)

main65400-37380iBU211..30T..CBU199505-200006

main65400-37400iBU211,221..40T..CBU199505

main65400-37430iBU212..CBU200006

main65400-37540iBU212..CBU199703-200006

sub65400-37430

main65400-37560iBU140,141..CBU199505

main65400-37810iBU211..T3..30T..CBU199505-200006

W(RR *STAC)

sub65400-37380

main65400-37810iBU211..TW1199610-200006

sub65400-37380

main65400-37820iBU211,221..40T..CBU199505-200006

W(RR *STAC)

sub65400-37400

main65410-37050iBU100,101..175T199505

65474INSULATOR, HEADER

main65474-37010iBU101..T1..CBU199505

65700GATE ASSY, REAR BODY TAIL

main65700-25010iBU100,101..(T1,TW2)..CBU199505

main65700-37021iBU100,101..WT..CBU199505

main65700-37030iBU100,101..T3..ST..CBU199505

main65700-37040iBU211,221..40T..CBU199505

main65700-37050iBU140,141,211,212..(25T,30T)..CBU199505

main65701-93115iBU110,111..CBU199505

66110HINGE ASSY, TAIL GATE

main66110-37010iBU140,141,211,212,221..CBU199505

sub66110-37012

main66110-95014iBU100,101..(T1,TW2)..CBU199505

main66110-95407iBU100,101..T3..CBU199505

66121ABOLT, TAIL GATE MALE

main66121-95012iBU100,101..(T1,TW2)..CBU199505

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-95402iBU100,101..(T1,TW2)..CBU199505

66280CCHAIN ASSY, TAIL GATE

main66280-25020iBU100,101..T3..CBU199505

main66280-37010iBU100,101..(T1,TW2)..CBU199505

main66280-37020iBU140,141,211,212,221..CBU199505

66311DHOOK, ROPE

main66311-37010iBU100,101..T3..CBU199505

main66311-90K00iBU100,101..(T1,TW2)..CBU199505

9161560825

main91615-60825

9326018014

main93260-18014

10 parts on this diagram · 4 diagrams in section
