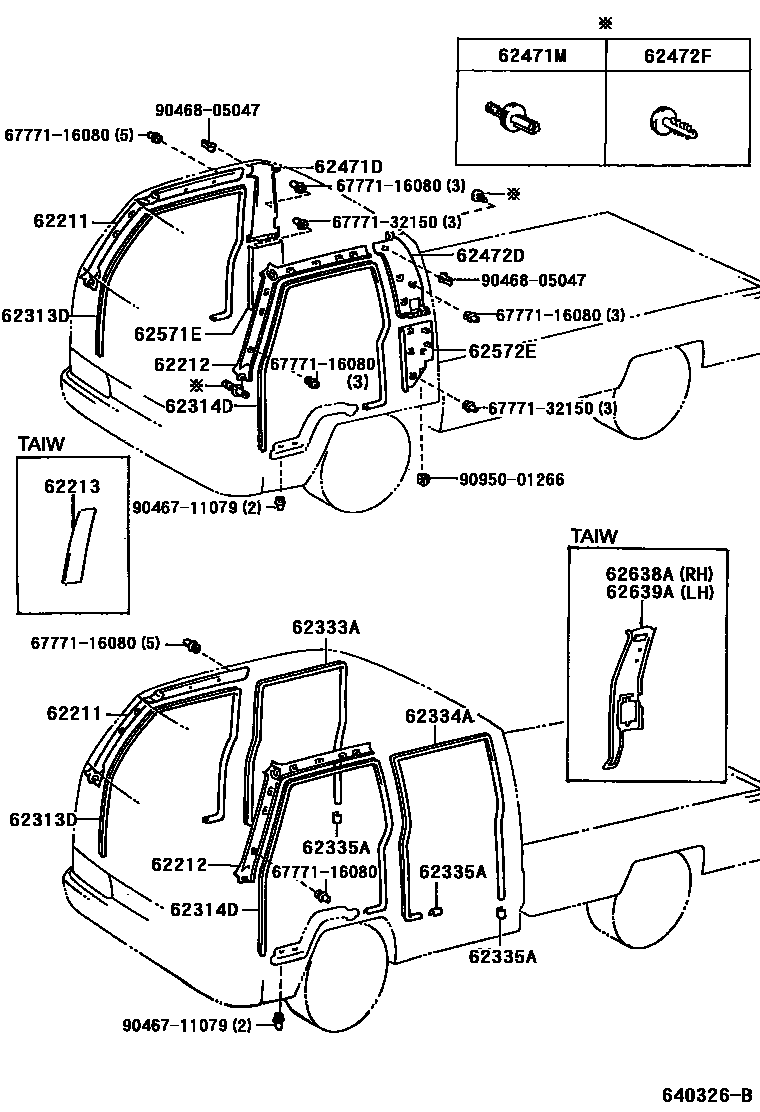

INSIDE TRIM BOARD

62211GARNISH, FRONT PILLAR, RH

main62211-25020-B0iBU212..TD..CBU;BU100,101..ARL..IV3;BU212..RHD..T3..DSL..(ARL,GEN);BU110,142,213,222,223..(DSL,TDEFI)..(ARL,GEN)199505

LT.GRAY,TRIM1#

main62211-95400-B0iBU212..LHD..DSL;BU212..30T..TD..IV3;BU222..LHD..(GEN,TAIW)199505-199908

LT. GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-25020-B0iBU212..TD..CBU;BU100,101..ARL..IV3;BU212..RHD..T3..DSL..(ARL,GEN);BU110,142,213,222,223..(DSL,TDEFI)..(ARL,GEN)199505

BLUISH GRAY,TRIM1#

main62212-95400-B0iBU212..LHD..DSL;BU212..30T..TD..IV3;BU222..LHD..(GEN,TAIW)199505-199908

LT. GRAY,TRIM1#

62213PAD, FRONT PILLAR GARNISH

main62213-95400iBU212..LHD..DSL;BU212..30T..TD..IV3;BU222..LHD..(GEN,TAIW)199505-199908

62313DTRIM, FRONT DOOR OPENING, RH

main62313-37020-B0iBU10#,11#,14#,21#,22#,RZU100,YU210199505

W(VINYL LEATHER SEAT)-*104,BLUISH GRAY,TRIM1#

main62313-95407-B0iBU212..LHD..DSL;BU212..30T..TD..IV3;BU222..LHD..(GEN,TAIW)199505-199908

GRAY,TRIM1#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-37020-B0iBU10#,11#,14#,21#,22#,RZU100,YU210199505

W(VINYL LEATHER SEAT)-*104,BLUISH GRAY,TRIM1#

main62313-95407-B0iBU212..LHD..DSL;BU212..30T..TD..IV3;BU222..LHD..(GEN,TAIW)199505-199908

GRAY,TRIM1#

62333ATRIM, REAR DOOR OPENING, RH

main62333-95400-B0iBU100,101,142,211,212..TW1,TW2199505-200212

GRAY,TRIM1#

sub62333-25010

62334ATRIM, REAR DOOR OPENING, LH

main62333-95400-B0iBU100,101,142,211,212..TW1,TW2199505-200212

GRAY,TRIM1#

sub62333-25010

62335ACOVER, REAR DOOR OPENING TRIM

main62335-92600-B0iBU100,101,142,211,212..TW1,TW2199505-200212

GRAY,TRIM1#

sub62335-92600

62471DGARNISH, REAR PILLAR, UPPER RH

main62471-25010-B0iBU212..CBU;BU100,110,142..20T..ARL199505-200212

LT.GRAY,TRIM1#

main62471-37010-B0iBU212..T3..ARL199505-199708

LT.GRAY,TRIM1#

62471MCLIP

main90467-07043-B1iBU212..TD..CBU;BU100,101..ARL..IV3;BU212..RHD..T3..DSL..(ARL,GEN);BU110,142,213,222,223..(DSL,TDEFI)..(ARL,GEN)199505

LIGHT GRAY,TRIM1#

sub90467-07043

62472DGARNISH, REAR PILLAR, UPPER LH

main62472-25010-B0iBU212..CBU;BU100,110,142..20T..ARL199505-200212

LT.GRAY,TRIM1#

main62472-37010-B0iBU212..T3..ARL199505-199708

LT.GRAY,TRIM1#

62472FCLIP(FOR REAR PILLAR GARNISH)

main90467-06171-B1iBU213,223199908

LT.GRAY,TRIM1#

sub90467-06171

62571EGARNISH, REAR PILLAR, LOWER RH

main62571-25010-B0iBU212..TD..CBU;BU100,101..ARL..IV3;BU212..RHD..T3..DSL..(ARL,GEN);BU110,142,213,222,223..(DSL,TDEFI)..(ARL,GEN)199505

LT.GRAY,TRIM1#

62572EGARNISH, REAR PILLAR, LOWER LH

main62572-25010-B0iBU212..TD..CBU;BU100,101..ARL..IV3;BU212..RHD..T3..DSL..(ARL,GEN);BU110,142,213,222,223..(DSL,TDEFI)..(ARL,GEN)199505

LT.GRAY,TRIM1#

62638AGARNISH, QUARTER PILLAR, RH

main62638-95401-B0iBU212..LHD..DSL;BU212..30T..TD..IV3;BU222..LHD..(GEN,TAIW)199505-199908

LT.GRAY,TRIM1#

62639AGARNISH, QUARTER PILLAR, LH

main62639-95402-B0iBU212..LHD..DSL;BU212..30T..TD..IV3;BU222..LHD..(GEN,TAIW)199505-199908

LT.GRAY,TRIM1#

6777116080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16080

6777132150WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32150

9046711079

main90467-11079

9046805047

main90468-05047

9095001266

main90950-01266

21 parts on this diagram · 1 diagram in section
