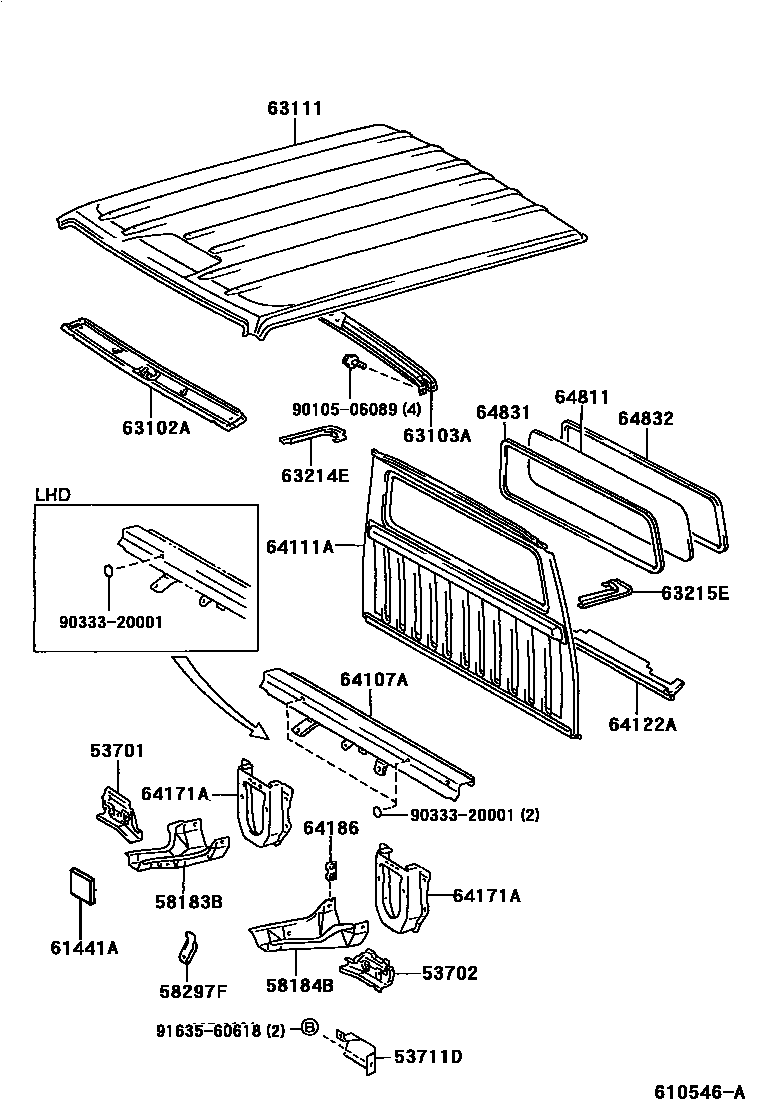

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

53701APRON SUB-ASSY, FRONT FENDER, RH

main53703-37020iBU211,212..TW1199505

main53717-37010iBU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4199505

main53717-37020iBU100,101,142..TW1,TW2199505

main53717-37030iBU21#,22#,YU210..T3200008

53702APRON SUB-ASSY, FRONT FENDER, LH

main53704-37020iBU212..TW1199505-199506

main53704-37030iBU211,212..TW1199506

main53718-37010iBU10#,11#,14#,RZU100..DM1,DM6,DM7,T1,T2,T3,T4199505

main53718-37020iBU100,101,142..TW1,TW2199505

main53718-37030iBU21#,22#,YU210..T3199505-200008

53711DAPRON, FRONT FENDER

main53711-37010iBU211,212..TW1199506

58183BREINFORCEMENT, REAR MOUNTING, RH

main58183-37010iRZU100..15T;BU101..ARL..IV3;BU102,142..RHD..GEN199908

main58183-37020iBU140..LHD..GEN..IV3199511-199610

SAUDI ARABIA & GULF SPEC & W(REAR *STAC)

main58183-37030iBU21#,22#,YU210..T3199505-200008

main58183-37040iBU211,212..TW1199505

58184BREINFORCEMENT, REAR MOUNTING, LH

main58184-37010iRZU100..15T;BU101..ARL..IV3;BU102,142..RHD..GEN199908

main58184-37020iBU111..RHD199511-199703

HONG KONG SPEC & W(FRONT SEAT BELT=ELR)

main58184-37030iBU21#,22#,YU210..T3199505-200008

main58184-37040iBU212..TW1199505-199506

main58184-37060iBU211,212..TW1199506

58297FREINFORCEMENT, SEAT BELT ANCHOR, NO.2

main58297-95401iBU100,101,111,14#,211,221..LHD..(20T,25T,30T,40T)..GEN199505

main58297-95402iBU222..ARL,SA;BU212..RHD..T3;BU101,102,111,14#,211,221,YU210..RHD..(GEN,SA)199808-200008

61441ASILENCER, REAR PILLAR

main61441-95010×2iBU211,212..TW1199505

sub61824-12090

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-95403iBU212..LHD..DSL;BU212..30T..TD..IV3;BU222..LHD..(GEN,TAIW)199505-199908

main63132-37010iBU100,101..ARL..IV3;BU110,142,RZU100..(DM1,T3,T4)..(15T,20T)199505-200107

main63132-37040iBU212..TD..CBU;BU212,222..RHD..T3..DSL199505-199809

main63132-95418iRZU100..RHD;BU10#,111,112,14#..GEN,SA,TAIW199505-200107

main63132-95420iBU101..ARL..CBU199908-200107

main63132-95423iBU212..TW1;BU212..40T..TD;BU211,221,YU210;BU222..RHD..GEN199505-199809

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63021-92607iBU211,212..TW1199505

main63103-95412iBU100,101,142..TW1,TW2199505

63111PANEL, ROOF

main63100-37020iBU212..TW1199505

main63100-37030iBU211..TW1199610

main63111-37010iRZU100..RHD;BU10#,111,112,14#..(15T,20T,25T,30T)..(GEN,SA,TAIW)199505

main63111-37020iBU142..T3..25T;BU100,101,111,140,141,RZU100..(DM1,T1,T3)..(EUR,GEN)199505

W(ROOF VENTILATOR)

main63111-37080iBU100,101..ARL..IV3;BU110,142,RZU100..(DM1,T3,T4)..(15T,20T)199505

main63111-37090iBU212..TD..CBU;BU212..RHD..T3..DSL..(ARL,GEN);BU213,222,223..(DSL,TDEFI)..(ARL,GEN)199505

main63111-95411iBU212..(GEN,TAIW)..IV3;BU211,221,222..T3..(GEN,TAIW)199505

main63111-95412iBU211,221,YU210..T3;BU212,222..GEN..IV3200008

W(ROOF VENTILATOR)

main63111-95416iBU101..ARL..CBU199908

main63111-95417iBU100,101..175T..GEN199505

63214ECHANNEL, ROOF DRIP, REAR, RH

main63214-92600iBU211,212..TW1199505

63215ECHANNEL, ROOF DRIP, REAR, LH

main63215-92600iBU211,212..TW1199505

64107AFRAME SUB-ASSY, BACK

main64107-37032iBU100,101..ARL..CBU199505

main64107-37101iBU100,101,110,142..20T..ARL199505

main64107-37111iBU101..RHD..WT..GEN..IV3199505

THAILAND SPEC & W(RR *STAC)

main64107-37121iBU211,221..RHD..40T..GEN..IV3199505-199605

W(FRONT SEAT BELT=ELR)

sub90333-20001

main64107-37122iBU212,222..RHD..GEN..IV3199703

main64107-37131iBU211,221,YU210..RHD199505-199605

sub90333-20001

main64107-37132iBU212..RHD..GEN..IV3199808-200006

THAILAND SPEC

main64107-37220iBU10#,111,112,14#..LHD..(DM1,DM7,T2,T3,T4)199505-199805

sub90333-20001

main64107-37221iBU101..T3..ST..TS;BU142,RZU100..LHD..GEN199808

main64107-37230iBU111..IV3199505-199805

ALGERIA SPEC W(RR *STAC & TILT CAB)

sub90333-20001

main64107-37231iBU111,141..LHD..(DM6,T3)199805

ALGERIA SPEC W(RR *STAC & TILT CAB)

main64107-37240iBU100..175T..GEN199505-199805

sub90333-20001

main64107-37241iBU100,101..175T..GEN199805

main64107-37250iBU142..TW1199610-199805

sub90333-20001

main64107-37251iBU100,101,142..LHD..(TW1,TW2)199805

W(FRONT SEAT BELT=ELR)

main64107-37260iBU21#,221..LHD..GEN199505-199610

sub90333-20001

main64107-37290iBU212,222..TAIW199505-199610

sub90333-20001

main64107-37300iBU111..RHD;BU101..RHD..WT..IV3199505-199511

HONG KONG SPEC

main64107-37360iBU212..TW1199505-199605

sub90333-20001

main64107-37361iBU212..TW1199605

main64107-37370iBU212..T3..ARL199505-199605

sub90333-20001

main64107-37371iBU222..ARL,SA;BU212..TD..CBU;BU211,212,221,YU210..RHD..T3..(CBR,DSL)200006

THAILAND SPEC

main64107-37400iBU212..LHD..TD;BU211,213,22#..LHD..T3199610-200006

main64107-37410iBU21#,22#..LHD..T3200006

main64107-37430iBU211..TW1199610

64111APANEL, BACK

main64100-37011iBU212,222..TAIW199505-199606

sub64160-37010

main64100-37012iBU212,222..LHD..DSL199606-199908

sub64111-37280

sub64119-95402

sub64119-95403

sub64119-95404

sub90959-01285

main64100-37290iBU101,111,140,141..RHD199505-199606

W(FRONT HEAD REST=RH & LH)

sub64160-37010

main64100-37291iBU101..ARL..IV3;BU100,102,110,142..RHD..WT199606

W(FRONT HEAD REST=RH & LH)

sub64105-37030

sub71962-95400

main64100-37300iBU101,111,140,141..RHD199505-199606

sub64160-37010

main64100-37301iBU101,111,140,141,RZU100..RHD..(GEN,SA)199606

sub64105-37030

main64100-37310iBU100,101,111,140,141..LHD..(DM1,T3)..GEN199505-199606

W(FRONT HEAD REST=RH & LH)

sub64160-37010

main64100-37311iBU10#,111,112,14#..LHD..(DM1,DM7,T2,T3,T4)199606

W(FRONT HEAD REST=RH & LH)

sub64105-95A06

sub71962-95400

main64100-37320iBU100,101,111,140,141..LHD..(DM1,T3)..GEN199505-199606

sub64160-37010

main64100-37321iBU100,101,111,14#..LHD..(DM1,T3)..GEN199606

sub64105-95A06

main64100-37330iBU111..IV3199505-199606

ALGERIA SPEC

sub64160-37010

main64100-37331iBU111..IV3199606

ALGERIA SPEC

sub64105-95A06

sub74711-95404

main64100-37360iBU211,221,YU210..RHD199505-199606

sub64160-37010

main64100-37361iBU21#,221,YU210..RHD..(CBR,DSL)..(GEN,SA)199606-199808

main64100-37370iBU211,221..RHD..40T..GEN..IV3199505-199606

HONG KONG PACKAGE

sub64160-37010

main64100-37371iBU211,221..RHD..40T..GEN..IV3199606-199703

HONG KONG PACKAGE

sub64105-37120

main64100-37380iBU212..GEN199505-199606

W(RR *STAC)

sub64160-37010

main64100-37381iBU211,221..LHD..T3199606

W(RR *STAC)

main64100-37400iBU212..GEN199505-199606

sub64160-37010

main64100-37401iBU222..EUR;BU212..LHD..40T..TD199606

main64100-37440iBU141..LHD199508-199606

ALGERIA SPEC & W(FRONT HEAD REST=RH & LH)

sub64160-37010

main64100-37441iBU141..LHD199606

ALGERIA SPEC & W(FRONT HEAD REST=RH & LH)

sub64105-95A06

sub71962-95400

sub74711-95404

main64100-37580iBU222..LHD..GEN;BU212..30T..TD..IV3199610-199908

sub64111-37280

sub64119-95402

sub64119-95403

sub64119-95404

sub90959-01285

main64100-37810iBU212,222..RHD..GEN..IV3199703

main64100-3V120iBU212,222..RHD..GEN..IV3199703

HONG KONG PACKAGE

sub64105-37120

main64100-3V280iBU213,223199908

main64100-3V300iRZU100..15T199908

sub71962-95400

main64100-95450iBU100,101,142..TW1,TW2199505

main64101-37010iBU212..TW1199505-199609

main64101-37011iBU211,212..TW1199609

64122ABAFFLE, DUST REAR BODY

main64122-37031iBU101..T1..CBU199505-200212

main64122-37041iBU110,111,140,141..CBU199505-200212

main64122-37050iBU211,212,221..CBU199605-200212

main64122-37061iBU100,101..175T199505-200212

main64122-37081iBU100,101..T3..CBU199505-200212

main65455-93104iBU110,111..CBU199505-200212

NO.2

64171ABRACKET SUB-ASSY, REAR MOUNTING

main64025-37010iBU141..LHD199511

W(TILT CAB & FRONT SEAT BELT=ELR),RH

sub64025-37030

main64025-37011iBU21#,22#,YU210..T3200008

RH

main64026-37030iBU101..RHD..WT..IV3199505-199511

W(TILT CAB & RR *STAC),LH

sub64026-37011

main64026-37031iBU21#,22#,YU210..T3199605-200008

LH

main64026-37040iBU101..T1..IV3;BU101,140,141..RHD..WT..GEN199505

W(REAR *STAC)

main64171-37060×2iBU211,212..TW1199506

main64171-95408×2iBU141..RHD..GEN;BU101..(20T,30T)..GEN200105

main64171-95410×2iBU100,212..TW1,TW2199505-199506

64186RETAINER, REAR MOUNTING BRACKET

main64186-95A00×2iBU141..LHD;RZU100..RHD;BU101..LHD..WT..CBU;BU111,142,211..DM1,TW1;BU101..T3..GEN..IV3..TS;BU101..(T3,TW2)..ST..CBU199911

64811GLASS, BACK WINDOW

main64811-37020iBU100,101,14#..(T1,T3)..GEN199505-199905

*TEM,T=3.5,BRONZE

main64811-37040iBU212..LHD..40T..TD;BU211,221..T3..GEN..(CBU,IV3)199505-199905

*TEM,T=3.5,BRONZE

main64811-37070iBU142..(20T,25T)..(ARL,GEN);BU10#,11#,140,141,RZU100..(15T,20T,25T,30T)..(DSL,EFI)199610

*TEM,T=3.5,GREEN

main64811-37080iBU212..LHD;BU212..TD..CBU;BU21#,223..(DSL,TDEFI)..(ARL,GEN);BU101,221,222..(175T,40T)..(ARL,GEN)200110

*TEM,T=3.5,GREEN

main64811-95409iBU10#,11#,14#..20T,25T,30T199505-199610

*TEM,T=3.5

main64811-95410iBU142..TW1;BU211,222,YU210..EUR,SA;BU211,212..RHD..40T..(GEN,SA)..IV3200008-200108

*TEM,T=3.5

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-37050iBU101..ARL;BU101..175T..GEN;BU212,222..ARL,GEN,SA;BU102,142,211,213,221,223,RZU100,YU210..(15T,20T,30T,40T)..(GEN,SA)200108-200110

sub64831-37051

main64831-95406iRZU100..RHD;BU142..T3..(20T,25T);BU101,102,11#,141..(15T,20T,25T,30T)..DSL..(GEN,SA)199905

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-37040iBU101..ARL;BU101..175T..GEN;BU212,222..ARL,GEN,SA;BU102,142,211,213,221,223,RZU100,YU210..(15T,20T,30T,40T)..(GEN,SA)200108-200110

main64832-95013iRZU100..RHD;BU142..T3..(20T,25T);BU101,102,11#,141..(15T,20T,25T,30T)..DSL..(GEN,SA)199905

9010506089

main90105-06089

9033320001

main90333-20001

9163560618

main91635-60618

23 parts on this diagram · 9 diagrams in section
