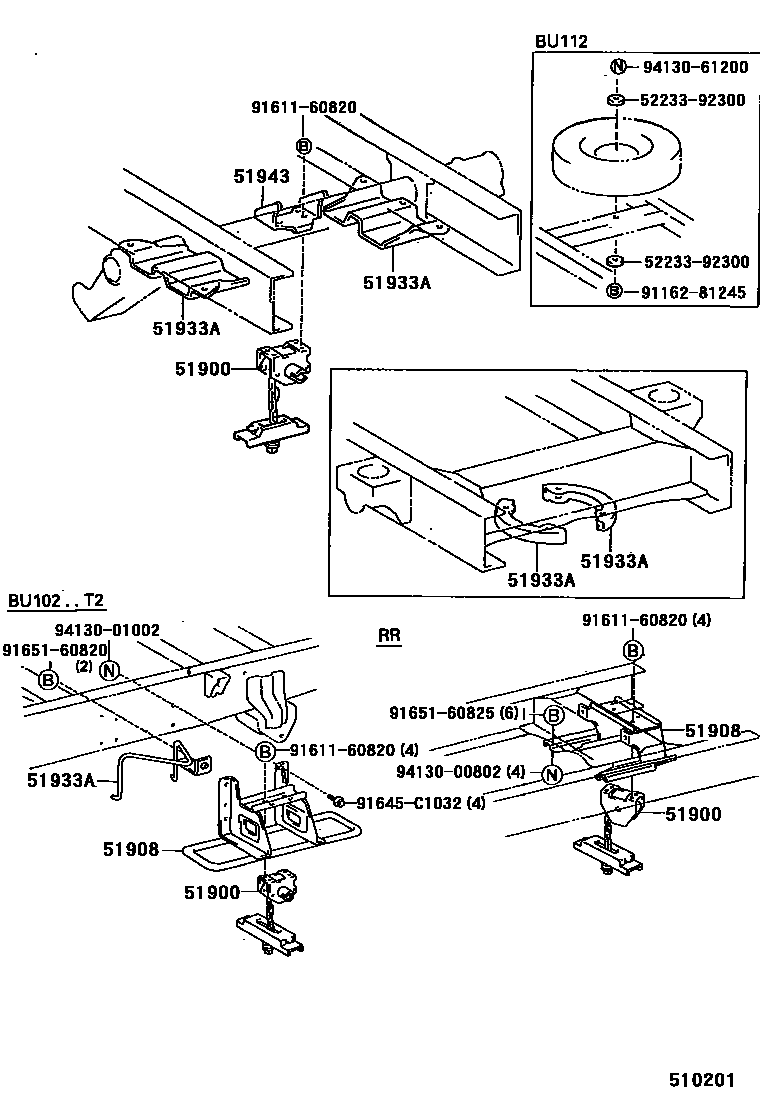

SPARE WHEEL CARRIER

0001 1 0004 1 0006 1

51900CARRIER ASSY, SPARE WHEEL

main51900-36050iBU212..GEN;BU211,22#..40T;BU212..40T..ARL199505-200008

main51900-36101iBU10#,14#,21#,RZU100,YU210..(T1,T3,T4,TW1,TW2)..(15T,175T,20T,25T,30T)199505-199905

sub51900-36102

main51900-36102iBU10#,14#,21#,223,RZU100,YU210..(T1,T3,T4,TW1,TW2)..(15T,175T,20T,25T,30T)199905

main51900-93100iBU110,111..CBU199505

main51900-93103iBU111..IV3199505

51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER

main51908-36040iBU102,RZU100..WT..15T199712

main51908-36040iBU10#..WT..20T..TB199505

REAR

main51908-36050iBU10#..WT..20T..TB199505

FRONT

main51908-36060iRZU100..30T199703-200009

51933ASTOPPER, SPARE WHEEL, NO.1

main51903-36040iBU21#,22#..40T199505-200008

main51933-36010iBU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T)199505

main51933-36040iBU10#..ST199505

51943BRACKET, SPARE WHEEL CARRIER, NO.1

main51943-36020iBU10#..ST199505

5223392300WASHER, CAB REAR MOUNTING, UPPER

main52233-92300

9116281245

main91162-81245

9161160820

main91611-60820

91645C1032

main91645-C1032

9165160820

main91651-60820

9165160825

main91651-60825

9413000802

main94130-00802

9413001002

main94130-01002

9413061200

main94130-61200

13 parts on this diagram · 3 diagrams in section
