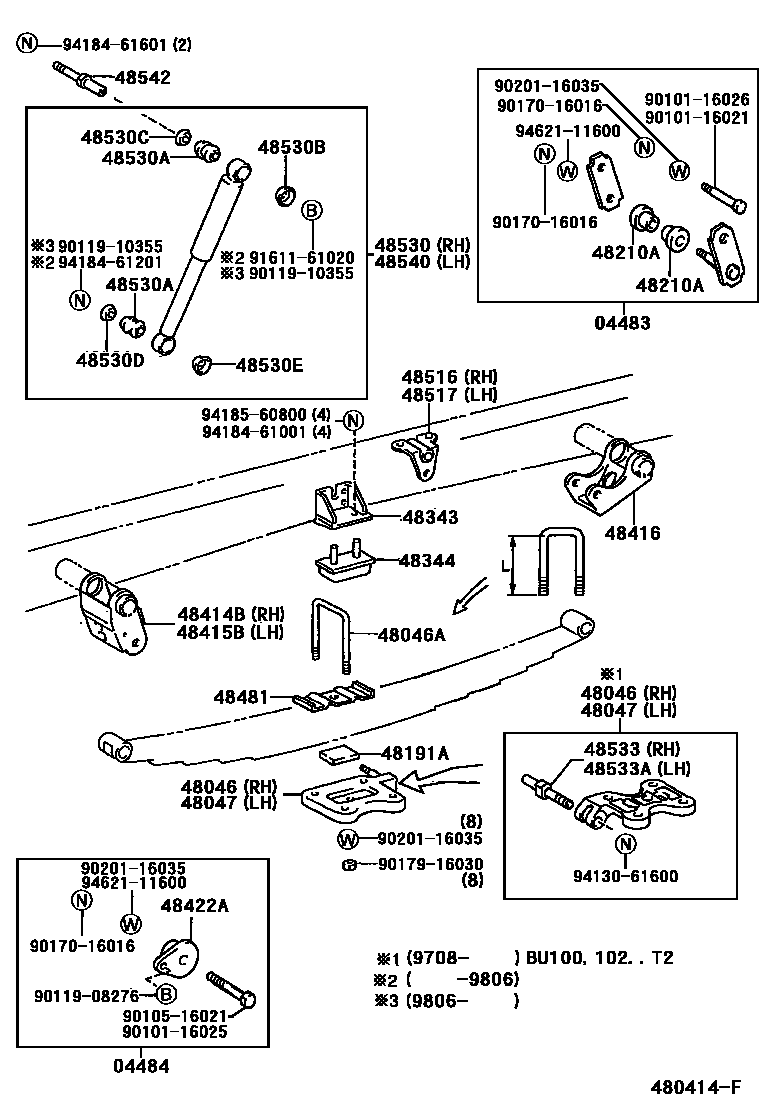

REAR SPRING & SHOCK ABSORBER

0001 1 0003 1 0005 1 0006 1 0007 1 0008 1 0010 1 0011 1 0013 1 0014 1 0015 1 0016 1 0017 1 0019 1 0020 1 0021 1 0022 1 0023 1 0024 1 0025 1 0026 1 0028 1 0029 1 0030 1 0031 1 0032 1 0033 1

04483SHACKLE KIT, REAR SPRING

main04483-36100iBU11#,RZU100;BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(15T,20T)..TB199505

main04483-36110iBU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T)199505

04484PIN KIT, REAR SPRING

main04484-36070iBU11#,RZU100;BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(15T,20T)..TB199505

main04484-36080iBU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T)199505

sub04482-37040

main04484-36110iBU21#,22#..40T199505-200008

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main42152-36030iBU21#,22#..40T199505-200310

main48046-36090iBU10#..ST199505-199806

main48046-36180iBU102..WT..20T..TB199505-199708

main48046-36190iBU11#..DM1,DM7199505-199708

main48046-36220iBU111..IV3199505-200212

sub48046-36190

sub48191-36120

main48046-37010iBU11#,RZU100..DM1,DM7,T3199708-200212

main48046-37020iBU100,101..ARL..TB199708-200212

main48046-37030iBU102,RZU100..WT..(15T,20T)..TB199708-200212

main48046-37070iBU10#..ST199806-200212

main48047-36190iRZU100199703-199708

main48047-37010iRZU100..20T199708-200009

main48473-36100iBU10#,14#..T3..WT..(20T,25T)..DSL..(ARL,GEN,SA,TAIW)199505-200212

main48473-36110iBU140,141..25T..GEN199505-200212

HEAVY DUTY SPEC

main48473-36110iBU101,141..RHD..WT..(20T,30T)..GEN..IV3199505-200212

THAILAND SPEC

main48473-36110iBU140..EUR;BU211,212..25T,30T;BU102,142,213,223,YU210..(20T,25T,30T)..(CBR,TD,TDEFI)199505-200312

main48473-36170iBU141..LHD199505-200212

ALGERIA SPEC & HEAVY DUTY SPEC

sub48473-36110

sub48191-36120

main48473-36190iBU100,101..WT..GEN..TS199505-200212

HEAVY DUTY SPEC

48046ABOLT, U(FOR REAR SPRING)

main90117-16014iBU102..WT..20T..TB199505-199708

L=225

main90117-16018iBU112;BU140..EUR;BU101,102,142,21#,RZU100,YU210..25T,30T199505-199708

L=300

main90117-16018iBU100,101,140,141..WT..(20T,25T)..GEN199505

L=300,HEAVY DUTY SPEC

main90117-16022iBU14#,RZU100..(20T,25T)..(ARL,GEN)199505-199708

L=280

main90117-16024iBU111..IV3199505-199708

L=310

main90117-16025iBU140..EUR;BU212..30T;BU112,142,211,YU210..(20T,25T,30T)..(EUR,GEN,SA,TAIW)199505-199708

L=305

main90117-16025iBU140,141..25T..GEN199505

L=305,HEAVY DUTY SPEC

main90117-16040iBU141..30T199505

L=320,ALGERIA SPEC & HEAVY DUTY SPEC

main90117-16040iBU112199505-199908

L=320

main90117-16052iBU10#,RZU100..WT..(15T,20T)..TB199708

L=235

main90117-16115iBU10#..WT..DSL..TS199505

L=265

main90117-16122iBU10#..ST199505

L=215

main90117-16142iBU10#..WT..DSL..TS199505

L=255

main90117-16144iBU110,111..CBU199505-199708

L=285

main90117-18002iBU212..LHD;BU222..ARL,EUR,SA;BU21#,223..40T..(DSL,TDEFI)..(CBU,IV3)199505-200008

L=330

main90117-18003iBU212..RHD..GEN..IV3199808

L=368

main90117-18003iBU211..RHD..40T..GEN..IV3199505-200009

L=368,THAILAND SPEC

main90117-18005iBU211..RHD..40T..GEN..IV3199505-199702

L=350,HONG KONG SPEC OR REINFORCED SUSPENSION

main90117-18005iBU212..LHD..40T..TD;BU211..40T..GEN..(CBU,IV3)199505-199702

L=350,REINFORCED REAR SUSPENSION

main90117-18005iBU211..IV2;BU221..GEN;BU212,222..RHD..GEN..IV3199505

L=350

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main42152-36030iBU21#,22#..40T199505-200310

main48046-36090iBU10#..ST199505-199806

main48046-36190iRZU100199703-199708

main48046-37010iRZU100..20T199708-200009

main48046-37070iBU10#..ST199806-200212

main48047-36180iBU102..WT..20T..TB199505-199708

main48047-36190iBU11#..DM1,DM7199505-199708

main48047-36220iBU111..IV3199505-200212

sub48047-36190

sub48191-36120

main48047-37010iBU11#,RZU100..DM1,DM7,T3199708-200212

main48047-37020iBU100,101..ARL..TB199708-200212

main48047-37030iBU102,RZU100..WT..(15T,20T)..TB199708-200212

main48473-36100iBU10#,14#..T3..WT..(20T,25T)..DSL..(ARL,GEN,SA,TAIW)199505-200212

main48473-36110iBU141..30T199505-200212

THAILAND SPEC

main48473-36110iBU140..EUR;BU211,212..25T,30T;BU102,142,213,223,YU210..(20T,25T,30T)..(CBR,TD,TDEFI)199505-200312

main48473-36110iBU140,141..25T..GEN199505-200212

HEAVY DUTY SPEC

main48473-36170iBU141..LHD199505-200212

ALGERIA SPEC & HEAVY DUTY SPEC

sub48473-36110

sub48191-36120

main48473-36190iBU101,102..30T199505-200212

HEAVY DUTY SPEC

48191AWEDGE, CASTER(FOR REAR LEAF SPRING)

main48191-36120iBU141..LHD;BU111,141..(20T,30T)..IV3199505

main48191-36130iBU100,101..WT..GEN..TS199505

HEAVY DUTY SPEC

48210SPRING ASSY, REAR RH

main48210-36690iBU211..RHD..30T..GEN..IV3199505

MAIN 5+HELPER 7-LEAF,REINFORCED REAR SUSPENSION

main48210-36690iBU212..30T..TD..CBU;BU212,213,223..LHD..30T199505

MAIN 5+HELPER 7-LEAF

main48210-36690iBU212..30T..TD..CBU;BU212,213,223..LHD..30T199505

MAIN 5+HELPER 7-LEAF,BANGLADESH SPEC OR REINF0RCED REAR SUSPENSI0N

main48210-36810iBU10#..WT..DSL..TS199505

MAIN 5+HELPER 5-LEAF,TYPE C:REFER TO ILLUSTRATION

main48210-36861iBU14#..20T,25T199505

MAIN 7+HELPER 7-LEAF

main48210-37090iBU212..25T;BU211,YU210..30T;BU212..RHD..30T..DSL199505

MAIN 5+HELPER 5-LEAF,TYPE A:REFER TO ILLUSTRATION

main48210-37260iRZU100..30T199703-200009

6-LEAF,TYPE B:REFER TO ILLUSTRATION

main48210-37330iBU102..ST..15T199705-199908

5-LEAF,TYPE A:REFER TO ILLUSTRATION

main48210-37360iBU102..WT..15T199712-199905

5-LEAF,TYPE C:REFER TO ILLUSTRATION

main48210-37361iBU102,RZU100..WT..15T199905

5-LEAF,TYPE C:REFER TO ILLUSTRATION

main48210-3B180iBU100,101..ARL..CBU199505

5-LEAF,TYPE A:REFER TO ILLUSTRATION

main48210-3B190iBU10#..ST..(175T,20T)..(GEN,TAIW)199505

6-LEAF,TYPE A:REFER TO ILLUSTRATION

main48210-3B220iBU10#..WT..20T..TB199505

6-LEAF,TYPE C:REFER TO ILLUSTRATION

main48210-3B240iBU101..RHD..WT..IV3199610-199708

6-LEAF,TYPE C:REFER TO ILLUSTRATION

main48210-3B290iBU112199505-199908

MAIN 5+HELPER 6-LEAF

main48210-3B300iBU221,222..ARL,EUR,SA,TAIW;BU21#,223..40T..(DSL,TDEFI);BU212,222..LHD..40T..TD..GEN199505

MAIN 6+HELPER 6-LEAF,TYPE B:REFER TO ILLUSTRATION

main48210-3B310iBU211..40T..GEN199505-199507

MAIN 6+HELPER 9-LEAF,REINFORCED REAR SUSPENSION

main48210-3B310iBU221..GEN199505

MAIN 6+HELPER 9-LEAF

main48210-3B320iBU212..RHD..GEN..IV3199808

MAIN 6+HELPER10-LEAF

main48210-3B320iBU211..RHD..40T..GEN..IV3199505-200009

MAIN 6+HELPER10-LEAF,THAILAND SPEC

main48210-3B523iRZU100..20T199703-200009

5-LEAF,TYPE B:REFER TO ILLUSTRATION

main48210-3B620iBU141..30T;BU141..LHD199505

MAIN 8+HELPER 8-LEAF

main48210-3B630iBU111..IV3199505

MAIN 5+HELPER 6-LEAF

main48210-3B640iBU102..30T;BU100,101..WT..GEN199505

MAIN 5+HELPER 5-LEAF,TYPE B:REFER TO ILLUSTRATION

main48210-3B710iBU110,111..CBU199505

MAIN 4+HELPER 5-LEAF

main48210-3B731iBU212..RHD..GEN..IV3199703

MAIN 4+HELPER 3-LEAF

main48210-3B731iBU211..RHD..40T..GEN..IV3199505-199702

MAIN 4+HELPER 3-LEAF,HONG KONG SPEC

main48210-3B740iBU221..RHD..GEN199505-199702

MAIN 6+HELPER 6-LEAF,TYPE A:REFER TO ILLUSTRATION

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-23002iBU11#,RZU100;BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(15T,20T)..TB199505

48343BRACKET, REAR AXLE CUSHION

main48308-36040iBU100,101..ARL..TB199708

main48343-36040iBU10#..ST199505

main48343-36060iBU11#199505

48344STOPPER, BUMPER, REAR

main48344-36150iBU10#..ST199505

main48344-36170iBU11#199505

main48344-36180iBU10#..T3..WT199505

main48344-36190iBU14#,221;BU222..ARL,EUR,SA,TAIW;BU212,222..LHD..40T..TD..GEN;BU21#,223..40T..(DSL,TDEFI)..(CBU,IV3)199505-200008

main48344-36200iBU21#,223,YU210..25T,30T199505

main48344-36310iBU102..WT..(15T,20T)..TB199505-199908

main48344-36430iBU211..RHD..40T..GEN..IV3199505-199702

HONG KONG SPEC

main48344-36430iBU212..RHD..GEN..IV3199703

main48344-36430iBU212..RHD..GEN..IV3199808

THAILAND SPEC

main48344-36440iBU221..RHD..GEN199505-199702

HONG KONG SPEC

main48344-36440iBU222..RHD..GEN199703

main48344-37020iRZU100..RHD199703

main48344-37320iRZU100..15T199908

48414BBRACKET, SPRING, NO.3 RH

main48414-36150iBU21#,22#..40T199505-200008

main48414-36210iBU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T)199505

main48414-36230iBU10#..ST199505

main48414-36240iBU100,101..ARL..TB199708

main48414-36250iBU102,RZU100..WT..(15T,20T)..TB199505

main48414-36260iRZU100..RHD199703-200009

main48414-36270iBU11#199505

48415BBRACKET, SPRING, NO.3 LH

main48414-36150iBU21#,22#..40T199505-200008

main48414-36210iBU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T)199505

main48414-36240iBU100,101..ARL..TB199708

main48414-36250iBU102,RZU100..WT..(15T,20T)..TB199505

main48414-36260iRZU100..RHD199703-200009

main48414-36270iBU11#199505

main48415-36070iBU10#..ST199505

48416BRACKET, SPRING, NO.4

main48416-36160iBU21#,22#..40T199505-200008

main48416-36190iBU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T)199505

main48416-36230iBU100,101..ARL..TB199708

RH

main48416-36240iBU102,RZU100..WT..(15T,20T)..TB199505

RH

main48416-36250iRZU100..RHD199703-200009

RH

main48416-36260iBU11#199505

RH

main48416-36270iBU10#..ST199505

main48417-36110iBU100,101..ARL..TB199708

LH

main48417-36120iBU102,RZU100..WT..(15T,20T)..TB199505

LH

main48417-36130iRZU100..RHD199703-200009

LH

main48417-36140iBU11#199505

LH

48422ASUPPORT, REAR SPRING PIN

main48422-36030iBU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T)199505-200208

sub48422-37010

main48422-36090iBU11#,RZU100;BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(15T,20T)..TB199505

main48422-37010iBU10#,14#,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T)200208

48481SEAT, REAR SPRING, UPPER

main48481-36040iBU102..T3..(15T,20T);BU100,101,14#..(T1,T3,TW2)..(175T,20T,25T)..DSL..(ARL,GEN,SA)199505

main48481-36050iBU100,101,140,141..WT..(20T,25T)..GEN199505

HEAVY DUTY SPEC

main48481-37011iBU21#,22#..40T199505-200008

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-36040iBU212..25T,30T;BU102..WT..20T..TB;BU140,142,YU210..EUR,SA;BU141,142,211,213,223..30T199505

HEAVY DUTY SPEC

main48505-36040iBU212..25T,30T;BU102..WT..20T..TB;BU140,142,YU210..EUR,SA;BU141,142,211,213,223..30T199505

HEAVY DUTY SPEC &ALGERIA SPEC

main48505-36050iBU102..(T3,T4)..WT;BU141,142..(20T,25T)..(ARL,GEN,SA);BU100,101,140,RZU100..WT..(ARL,GEN,SA)199505

main48516-36050iBU10#..ST199505

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48505-36040iBU212..25T,30T;BU102..WT..20T..TB;BU140,142,YU210..EUR,SA;BU141,142,211,213,223..30T199505

HEAVY DUTY SPEC &ALGERIA SPEC

main48505-36040iBU212..25T,30T;BU102..WT..20T..TB;BU140,142,YU210..EUR,SA;BU141,142,211,213,223..30T199505

HEAVY DUTY SPEC

main48505-36050iBU102..(T3,T4)..WT;BU141,142..(20T,25T)..(ARL,GEN,SA);BU100,101,140,RZU100..WT..(ARL,GEN,SA)199505

main48516-36050iBU10#..ST199505

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-39757iBU111..IV3199703

main48531-80137iBU111..IV3199505-199703

sub48531-39757

main48531-80441iBU10#..ST199505

main48531-80442iBU10#,RZU100..WT..(15T,20T)..TB199505

main48531-80443iBU212..RHD..GEN..IV3200006

THAILAND SPEC

main48531-80443iBU212..40T..DSL;BU101,102..T3..WT;BU222..ARL,EUR,SA,TAIW;BU212,222..LHD..40T..TD..GEN;BU100,14#,211,213,221,223..(T3,TW1)..WT..(20T,25T,40T)199505-200008

main48531-80444iBU11#..DM1,DM7199505

main48531-80445iBU212..25T,30T;BU212,222..RHD..GEN..IV3;BU141,142,211,213,223,RZU100,YU210..(20T,30T)..(GEN,SA)199505

ALGERIA SPEC

main48531-80445iBU211,221..RHD..40T..GEN..IV3199505-199702

HONG KONG SPEC

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16011iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03003iBU212..40T;BU101..T3..WT;BU222..ARL,EUR,SA;BU102,14#,211,213,221,223..20T,25T,40T199505-200008

main90948-03004iBU10#..ST199505

main90948-03007iBU212,222..RHD..GEN..IV3;BU141,21#,RZU100,YU210..20T,30T;BU100,102,11#..DM1,DM6,DM7,T2,T4199505-199806

main90948-03007iBU211,221..RHD..40T..GEN..IV3199505-199702

HONG KONG SPEC

main90948-03007iBU141..LHD199505-199806

ALGERIA SPEC

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004iBU10#,111,14#,21#,22#,RZU100,YU210..WT199505-200008

main90948-03007iBU10#..ST199505-199806

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03003iBU211,221..RHD..40T..GEN..IV3199505-199702

HONG KONG SPEC

main90948-03003iBU100..T2,TW2;BU100,101..ST..20T;BU102..(15T,20T)..TB;BU212,222..RHD..GEN..IV3;BU141,21#,RZU100,YU210..20T,30T199505-199806

main90948-03003iBU141..LHD199505

ALGERIA SPEC

main90948-03007iBU212,222..LHD..40T..GEN;BU141,21#,222..(25T,40T)..DSL;BU10#,11#,140,142,221..(DM1,DM6,DM7,T3,TW1)..WT199505-199806

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iBU10#,111,14#,21#,22#,RZU100,YU210199505-200008

48533PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH

main48533-36070iRZU100;BU10#,11#..DM1,DM7,T2,T4199708

48533APIN, REAR SHOCK ABSORBER LOWER PIVOT, LH

main48533-36070iRZU100;BU10#,11#..DM1,DM7,T2,T4199708

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-39757iBU111..IV3199703

main48531-80137iBU111..IV3199505-199703

sub48531-39757

main48531-80441iBU10#..ST199505

main48531-80442iBU10#,RZU100..WT..(15T,20T)..TB199505

main48531-80443iBU212..40T..DSL;BU101,102..T3..WT;BU222..ARL,EUR,SA,TAIW;BU212,222..LHD..40T..TD..GEN;BU100,14#,211,213,221,223..(T3,TW1)..WT..(20T,25T,40T)199505-200008

main48531-80443iBU212..RHD..GEN..IV3200006

THAILAND SPEC

main48531-80444iBU11#..DM1,DM7199505

main48531-80445iBU212..25T,30T;BU212,222..RHD..GEN..IV3;BU141,142,211,213,223,RZU100,YU210..(20T,30T)..(GEN,SA)199505

ALGERIA SPEC

main48531-80445iBU211,221..RHD..40T..GEN..IV3199505-199702

HONG KONG SPEC

48542PIN, SHOCK ABSORBER UPPER PIVOT, REAR

main48542-26020iBU141..SA;BU141..30T;BU141..LHD;BU10#,142,21#,223,YU210..(T3,TW1)..WT..(20T,25T,30T)199505-199908

main48542-36020iBU10#..ST199505

sub48542-37030

9010116021

main90101-16021

9010116025

main90101-16025

9010116026

main90101-16026

9010516021

main90105-16021

9011908276

main90119-08276

9011910355

main90119-10355

9017016016

main90170-16016

9017916030

main90179-16030

9020116035

main90201-16035

9161161020

main91611-61020

9413061600

main94130-61600

9418461001

main94184-61001

9418461201

main94184-61201

9418461601

main94184-61601

9418560800

main94185-60800

9462111600

main94621-11600

43 parts on this diagram · 27 diagrams in section
