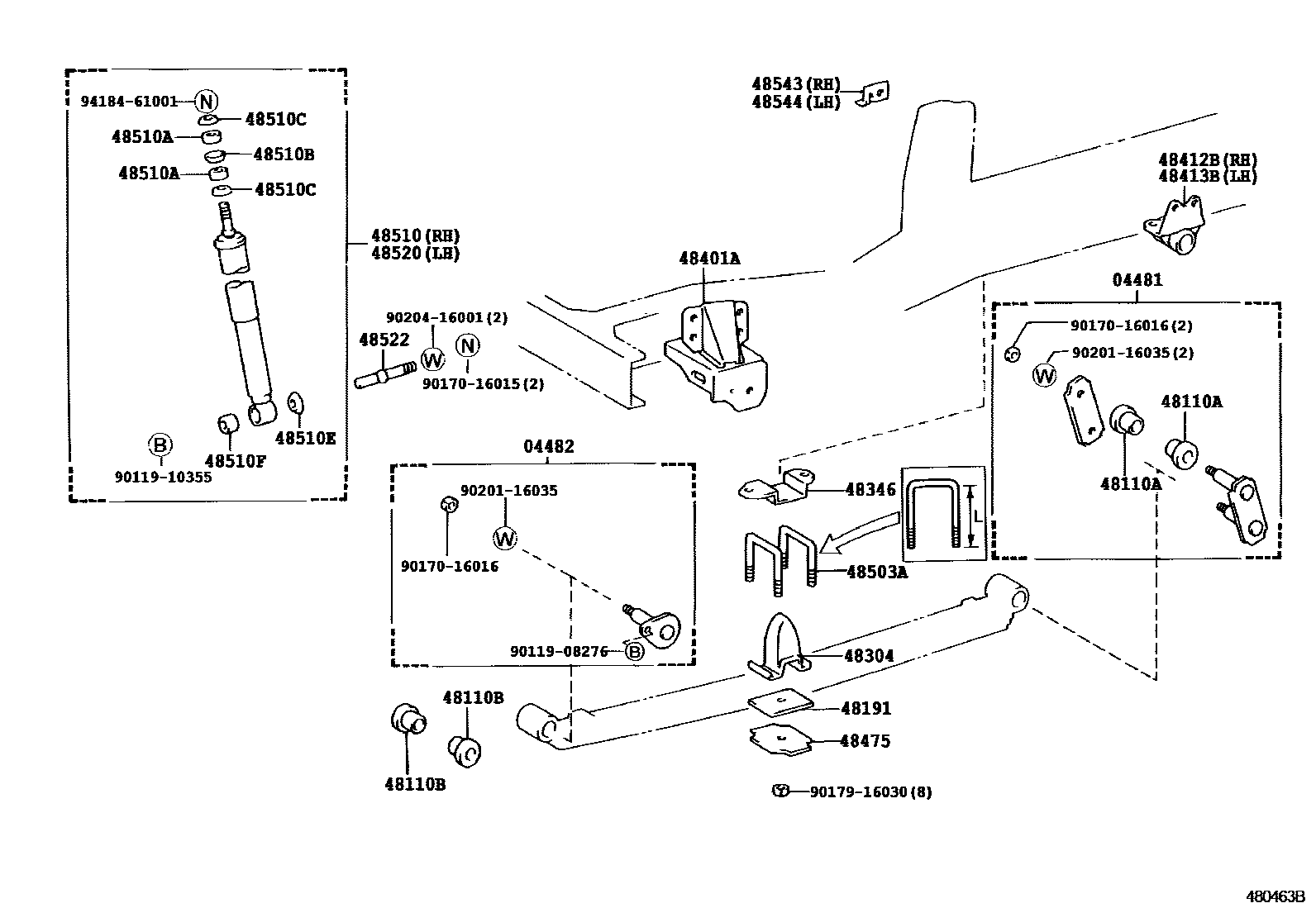

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0010 1 0011 1 0012 1 0013 1 0015 1 0016 1 0017 1 0018 1

04481SHACKLE KIT, FRONT SPRING

main04481-36090iBU10#,11#,14#,RZU100199505

main04481-36100iBU21#,22#,YU210199505-200008

04482PIN KIT, FRONT SPRING

main04482-36030iBU10#,11#,14#,RZU100199505

main04482-36040iBU21#,22#,YU210199505

48110SPRING ASSY, FRONT, RH

main48110-3B130iBU102..WT..15T;BU100,101..ARL..TB199708

3-LEAF

main48110-3B160iBU102..ST199705-199707

3-LEAF,TAIWAN SPEC

main48110-3B160iBU102..ST..15T199712-199908

3-LEAF

main48110-3B170iBU100,110..ARL..CBU199505-199710

3-LEAF

sub48110-3B171

main48110-3B171iBU100,101,110..ARL..CBU199710

3-LEAF

main48110-3B200iBU100,101..RHD..20T..TS199505

5-LEAF

main48110-3B210iBU10#..LHD..(175T,20T)199505

5-LEAF

main48110-3B230iBU101..T1199505-200009

7-LEAF

main48110-3B250iBU111..RHD199505

5-LEAF

main48110-3B260iBU101..RHD..WT..GEN199505

5-LEAF

main48110-3B260iBU102..TD;BU111..LHD..CBU199505

5-LEAF,HEAVY DUTY SPEC

main48110-3B270iBU100,101..LHD..WT..TS199505

5-LEAF,HEAVY DUTY SPEC

main48110-3B280iBU141,142,RZU100..(20T,30T)..GEN199505

5-LEAF

main48110-3B290iBU141..LHD199505

5-LEAF,HEAVY DUTY SPEC

main48110-3B290iBU101,102..30T;BU111,112..IV3199505

5-LEAF

main48110-3B320iBU142..ARL199505

5-LEAF

main48110-3B340iBU140,141..RHD..25T..GEN199505

5-LEAF

main48110-3B350iBU141..SA;BU14#..LHD199505

5-LEAF

main48110-3B370iBU212,222..40T..ARL199505

8-LEAF

main48110-3B390iBU213,223..40T;BU222..TD..(EUR,SA);BU211,212,221..RHD..40T..GEN199505-200006

8-LEAF

main48110-3B400iBU212..LHD..40T..TD;BU211,221,222..LHD..40T..(GEN,TAIW)199505

8-LEAF

main48110-3B410iBU211,212,221,222..40T..DSL..SA199505

10-LEAF

main48110-3B550iBU212..RHD..(25T,30T)199505

8-LEAF

main48110-3B570iBU211,YU210..RHD..30T199505

8-LEAF

main48110-3B580iBU211..LHD..30T199505

8-LEAF

main48110-3B610iBU213,223..30T;BU211..RHD..30T..GEN..IV3199505

9-LEAF

main48110-3B620iBU212..LHD..30T199505-199908

9-LEAF

main48110-3B691iBU211,221..RHD..40T..GEN..IV3199505-199703

4-LEAF

main48110-3V280iRZU100..15T199908

3-LEAF

48110ABUSH(FOR FRONT SPRING SHACKLE)

main90385-23037iBU10#,11#,14#,RZU100199505

48110BBUSH(FOR FRONT SPRING PIN)

main90385-23037iBU10#,11#,14#,RZU100199505

48191WEDGE, CASTER(FOR FRONT LEAF SPRING)

main48191-25010iBU102;BU100,101,11#,RZU100..DM1,DM6,DM7,T1,T3,T4,TW2199505

main48191-35020iBU21#,223,YU210;BU100,101,221,222..WT..(20T,40T)..TB199505-200008

main48191-36110iBU14#199505

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-36110iBU21#,22#..40T199505-200008

main48304-36150iBU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T199505

48346STOPPER, BUMPER, FRONT

main48346-36040iBU10#,14#,RZU100199505

main48346-36050iBU11#199505

48401ABRACKET SUB-ASSY, SPRING, NO.1

main48411-36120iBU10#,14#,RZU100199505

RH

main48411-36130iBU21#,223,YU210..25T,30T199505

RH

main48411-36140iBU21#,22#..40T199505-200008

RH

main48411-36150iBU11#199505

RH

main48412-36120iBU10#,14#,RZU100199505

LH

main48412-36130iBU21#,223,YU210..25T,30T199505

LH

main48412-36140iBU21#,22#..40T199505-200008

LH

main48412-36150iBU11#199505

LH

48412BBRACKET, SPRING, NO.2 RH

main48413-36050iBU10#,14#,RZU100199505

main48413-36060iBU11#199505

main48433-36060iBU21#,22#,YU210199505-200008

48413BBRACKET, SPRING, NO.2 LH

main48413-36050iBU10#,14#,RZU100199505

main48413-36060iBU11#199505

main48434-36060iBU21#,22#,YU210199505-200008

48475PLATE, DISTANCE(FOR FRONT)

main48475-36070iBU211..30T..SA;BU10#,11#,14#,213,223,RZU100,YU210;BU211,212,221,222..ARL,EUR,GEN,TAIW199505

48503ABOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)

main90117-16016iBU211..RHD..30T..GEN..IV3199505-199708

L=145,BANGLADESH SPEC

main90117-16016iBU211,212,221,222..40T..SA199505-200008

L=145

main90117-16017iBU211..GEN;BU212..LHD..40T;BU211,YU210..30T..SA;BU212..RHD..(ARL,GEN);BU213,22#..40T..(ARL,EUR,GEN,TAIW)199505

L=130

main90117-16017iBU101..T1199505-200009

L=130,THAILAND SPEC

main90117-16020iBU10#,110,111,14#..(DM1,T1,T2,T3,TW1,TW2)..(175T,20T,25T)199505-199708

L=95

main90117-16033iBU212,213,223..LHD..30T199505

L=135

main90117-16033iBU211..RHD..30T..GEN..IV3199505-199708

L=135,BANGLADESH SPEC

main90117-16043iRZU100199703-199708

L=110

main90117-16047iBU141..LHD199505

L=115,HEAVY LOAD SPEC & ALGERIA SPEC

main90117-16047iBU101,102,141..30T;BU111,112,RZU100..IV3199505-199708

L=115

main90117-16047iBU101..T1199505-200009

L=115,THAILAND SPEC

main90117-16093iBU141..LHD199505-199708

L=105

main90117-16093iBU111,112..IV3;BU101,102,141,142..30T199505

L=105,HEAVY LOAD SPEC & ALGERIA SPEC

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-80015iBU102;BU111..RHD;BU100,101,110,112,14#..175T,20T,25T199505-199703

sub48511-80032

main48511-80016iBU111..LHD;BU101,141..30T199505-199703

THAILAND SPEC

sub48511-80033

main48511-80016iBU111..LHD;BU101,141..30T199505-199703

HEAVY LOAD SPEC & ALGERIA SPEC

sub48511-80033

main48511-80018iBU21#,YU210..30T..(CBR,DSL)..(ARL,GEN,SA)199505-199703

sub48511-80035

main48511-80019iBU211..RHD..30T..GEN..IV3199505-199703

BANGLADESH SPEC

sub48511-80036

main48511-80020iBU21#,22#..40T199505-199703

sub48511-80037

main48511-80032iBU111..RHD;BU102,112,RZU100;BU100,101,110,14#..175T,20T,25T199703

MARK 48511-36150

main48511-80033iBU111..LHD;BU101,141,142..30T199703

MARK 48511-36160

main48511-80033iBU111..LHD;BU101,141,142..30T199703

MARK 48511-36160,HEAVY LOAD SPEC & ALGERIA SPEC

main48511-80033iBU101..T1199703-200009

MARK 48511-36160,THAILAND SPEC

main48511-80035iBU211,YU210..30T;BU212..RHD..(25T,30T)199703

MARK 48511-36090

main48511-80036iBU211..RHD..30T..GEN..IV3199703-199708

BANGLADESH SPEC

main48511-80036iBU212,213,223..30T..GEN..IV3199703

MARK 48511-36220

main48511-80037iBU21#,22#..40T199703-200008

main48511-80037iBU21#,22#..40T200008

MARK 48511-36140

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01003iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02007iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02002iBU10#,111,14#,21#,22#,RZU100,YU210199505-200008

48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

main90948-03004iBU212..RHD;BU212,213,223..LHD..40T;BU10#,11#,14#,211,221,222,RZU100,YU210199505-200008

main90948-03011iBU212,213,223..LHD..30T199505

main90948-03011iBU211..RHD..30T..GEN..IV3199505-199708

BANGLADESH SPEC

48510FCUSHION, SHOCK ABSORBER

main90385-16011iBU213,223..40T;BU10#,111,14#,211,212,221,222,RZU100,YU210199505-200008

main90385-19006iBU211..RHD..30T..GEN..IV3199505-199708

BANGLADESH SPEC

main90385-19006iBU212,213,223..LHD..30T199505

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-80015iBU102;BU111..RHD;BU100,101,110,112,14#..175T,20T,25T199505-199703

sub48511-80032

main48511-80016iBU141..LHD199505-199703

THAILAND SPEC

sub48511-80033

main48511-80016iBU111..LHD;BU101,141..30T199505-199703

HEAVY LOAD SPEC & ALGERIA SPEC

sub48511-80033

main48511-80018iBU21#,YU210..30T..(CBR,DSL)..(ARL,GEN,SA)199505-199703

sub48511-80035

main48511-80019iBU212..LHD..30T199505-199703

BANGLADESH SPEC

sub48511-80036

main48511-80020iBU21#,22#..40T199505-199703

sub48511-80037

main48511-80032iBU111..RHD;BU102,112,RZU100;BU100,101,110,14#..175T,20T,25T199703

MARK 48511-36150

main48511-80033iBU141..LHD199703

MARK 48511-36160,HEAVY LOAD SPEC & ALGERIA SPEC

main48511-80033iBU101..T1199703-200009

MARK 48511-36160,THAILAND SPEC

main48511-80033iBU111..LHD;BU101,141,142..30T199703

MARK 48511-36160

main48511-80035iBU211,YU210..30T;BU212..RHD..(25T,30T)199703

MARK 48511-36090

main48511-80036iBU211..RHD..30T..GEN..IV3199703-199708

BANGLADESH SPEC

main48511-80036iBU212,213,223..30T..GEN..IV3199703

MARK 48511-36220

main48511-80037iBU21#,22#..40T200008

MARK 48511-36140

main48511-80037iBU21#,22#..40T199703-200008

48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT

main48522-25020iBU213,223..40T;BU10#,111,14#,211,212,221,222,RZU100,YU210199505-200008

main48522-36041iBU212,213,223..LHD..30T199505

main48522-36041iBU211..RHD..30T..GEN..IV3199505-199708

BANGLADESH SPEC

48543REINFORCEMENT, FRONT ABSORBER BRACKET, RH

main48543-36010iBU11#..DM1,DM7199505

48544REINFORCEMENT, FRONT ABSORBER BRACKET, LH

main48544-36010iBU112199505-199908

NO.1

main48544-36010iBU110,111..CBU199505

main48544-36020iBU112199505-199908

NO.2

main48544-36020iBU111..IV3199505

9011908276

main90119-08276

9011910355

main90119-10355

9017016015

main90170-16015

9017016016

main90170-16016

9017916030

main90179-16030

9020116035

main90201-16035

9020416001

main90204-16001

9418461001

main94184-61001

31 parts on this diagram · 16 diagrams in section
