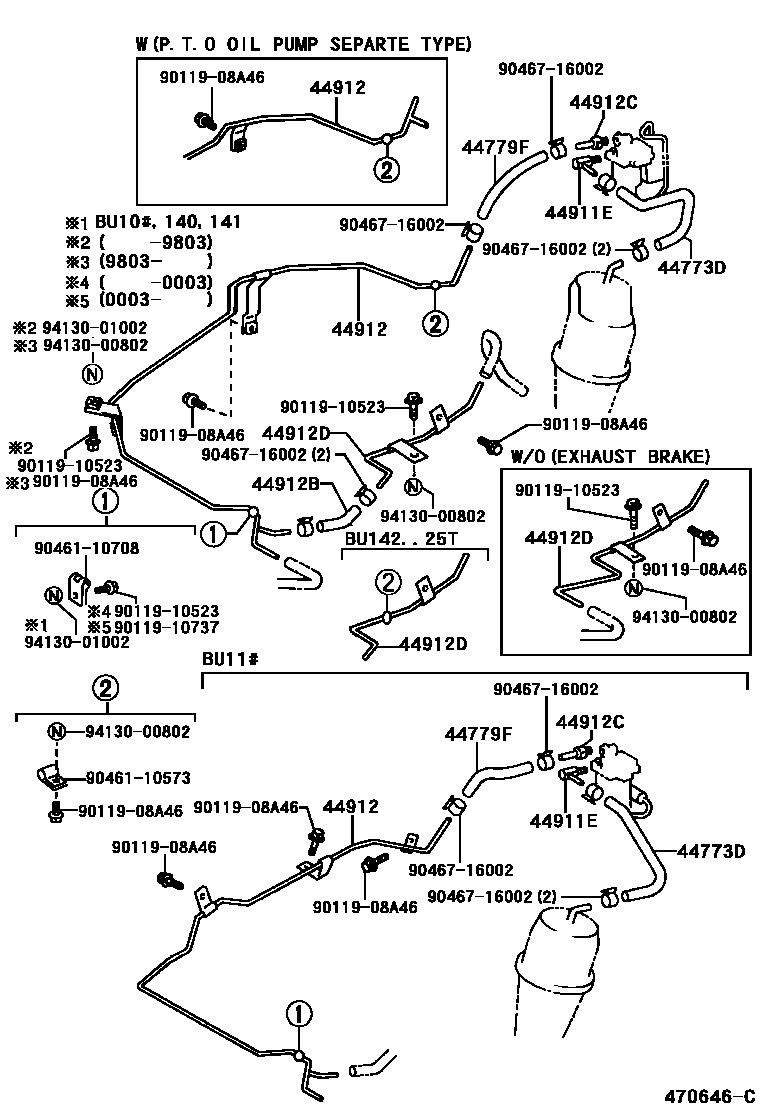

EXHAUST BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

44773DHOSE, SOLENOIDO TO RETARDER

main44773-36031iBU11#199505

main44773-36041iBU211,221..40T..SA199708-200008

main44773-37020iBU141..25T;BU10#,140,142..ARL,EUR,GEN199703

W(*EB)

main44773-37050iBU211..LHD..30T..IV3199708

W(*EB)

44779FHOSE, CONNECTOR TUBE TO SOLENOID, NO.1

main44779-36010iBU211..RHD;BU212,213,22#;BU211..LHD..CBU;BU211..LHD..40T..IV3200008

main95446-09180iBU101,141..RHD..WT..(20T,30T)..IV3199505-199703

W(*EB)

44911EELBOW (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)

main90407-51002iBU101,141..RHD..WT..(20T,30T)..IV3199505-199703

W(*EB)

44912TUBE, 3 WAY TO MAGNETIC VALVE

main44765-37020iBU110,111..RHD199505

main44765-37030iBU101..TB;BU140..EUR;BU100..ST..GEN..CBU;BU102,142..LHD..(20T,25T,30T)199505-199803

W(*EB)

main44765-37040iBU111,112..LHD199505

main44765-37050iBU101,140,141..RHD..WT..GEN199505

W(*EB)

main44765-37060iBU141..30T199505

W(*EB & P.T.O OIL PUMP SEPARATE TYPE)

main44765-37090iBU10#,14#..LHD199803

main44765-37100iBU102,142..RHD..GEN200007

main44912-37030iBU211..LHD..30T199505

W(*EB)

main44912-37040iBU211..30T..SA;BU211..RHD..40T;BU212,221,222..RHD199505-200008

main44912-37100iBU211..RHD..30T..GEN199505

W(P.T.O OIL PUMP SEPARTE TYPE)

main44912-37110iBU211..LHD..30T199505

W(*EB & P.T.O OIL PUMP SEPARATE TYPE)

main44912-37150iBU100..ST..IV3;BU100,101,140,141..LHD..WT..(20T,25T)..GEN199505-199803

W(*EB & P.T.O OIL PUMP SEPARTE TYPE)

main44912-37290iBU102..WT..15T199712-199803

W(P.T.O OIL PUMP SEPARATE TYPE)

44912BHOSE(FOR 3 WAY TO MAGNETIC VALVE TUBE)

main95446-09110iBU212;BU102,110,111..RHD;BU142,211,213,22#..30T,40T199505-200008

main95446-09130iBU10#,111,112,14#..LHD199505

main95446-09230iBU141..RHD..25T;BU100,101,140,142..RHD..DSL..(ARL,GEN)199505

W(*EB)

44912CUNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)

main90404-51319iBU101,141..RHD..WT..(20T,30T)..IV3199505-199703

W(EXHAUST BRAKE)

44912DTUBE, VACUUM(FOR MAGNETIC VALVE TO RESERVOIR)

main44764-37080iBU101,140,141..RHD..(GEN,SA)199505

main44764-37090iBU100,101,140,141..LHD..(175T,20T,25T)..GEN199505

main44764-37110iBU102200007

main44912-37050iBU110,111..RHD199505-199703

main44912-37070iBU101..30T;BU140..EUR;BU102,111,112..LHD199505

W(EXHAUST BRAKE)

main44912-37160iBU101..ARL199908

main44912-37170iBU142..25T199605

main44912-37180iBU110,111..RHD199703

main44912-37300iBU142..30T200007

W(EXHAUST BRAKE)

9011908A46

main90119-08A46

9011910523

main90119-10523

9011910737

main90119-10737

9046110573

main90461-10573

9046110708

main90461-10708

9046716002

main90467-16002

9413000802

main94130-00802

9413001002

main94130-01002

15 parts on this diagram · 4 diagrams in section
