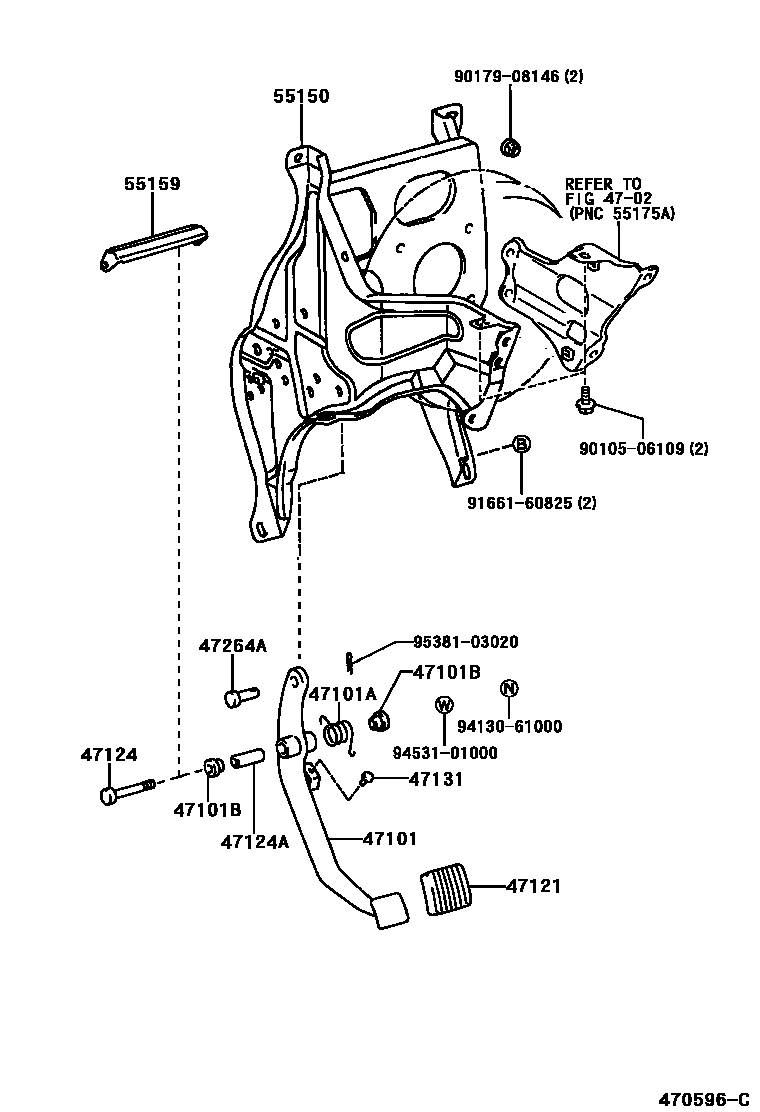

BRAKE PEDAL & BRACKET

4702

47101PEDAL SUB-ASSY, BRAKE

main47101-37030iBU21#,22#..LHD199505

main47101-37040iBU211,212,221,222..RHD;BU10#,111,14#,RZU100,YU210199505-200201

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35324iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200201

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iBU10#,111,14#,21#,22#,RZU100,YU210199505-200201

47121PAD, BRAKE PEDAL

main31321-14020iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200201

47124SHAFT, BRAKE PEDAL

main91121-51070iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200201

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iBU10#,111,14#,21#,22#,RZU100,YU210199505-200201

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200201

47264APIN(FOR PUSH ROD)

main90240-10015iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200201

55150BRACKET ASSY, PEDAL

main55150-37010iBU10#,11#,14#,21#,22#,YU210199505-199610

main55150-37020iBU10#,11#,14#,21#,22#,RZU100,YU210199610-200110

55159STAY, PEDAL BRACKET

main55159-37010iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200110

9010506109

main90105-06109

9017908146

main90179-08146

9166160825

main91661-60825

9413061000

main94130-61000

9453101000

main94531-01000

9538103020

main95381-03020

17 parts on this diagram · 1 diagram in section
