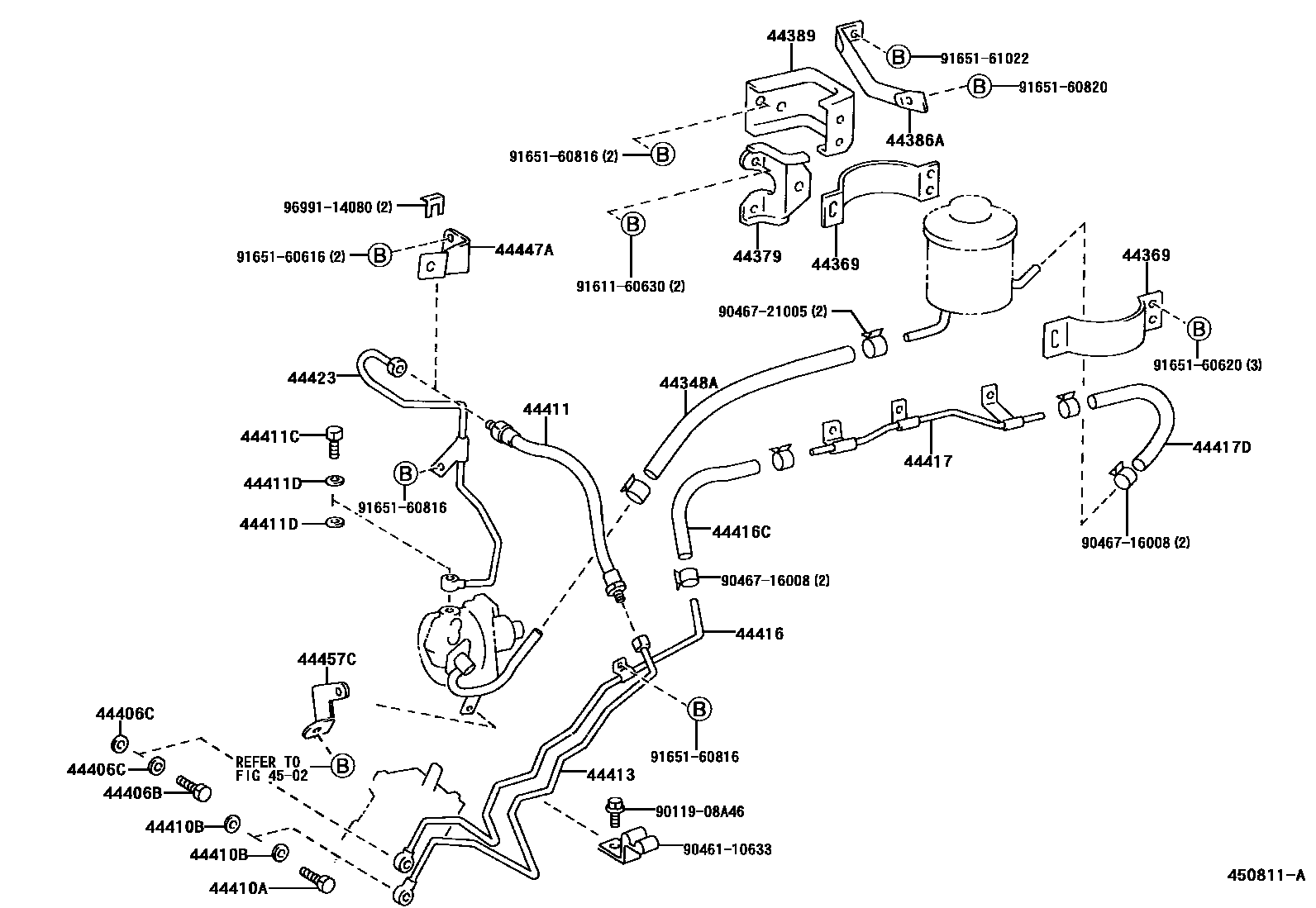

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-36210iBU211,221..RHD..40T..GEN..IV3199505-199703

W(POWER STEERING)

sub44348-36211

main44348-36210iBU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU100,101,110,111,140,141,221..(DM1,T1,T2,T3,TW2)..(ARL,GEN)199703-200111

sub44348-36211

main44348-36210iBU211..LHD..30T..IV3199505

VENEZUELA SPEC OR W(POWER STEERING)

sub44348-36211

main44348-37010iBU102,112,142,212,222..DSL..(ARL,GEN,SA)199505

sub44348-36410

main44348-37020iRZU100199703

sub44348-37021

main44348-37030iBU142..EUR;BU212,222..TD199505-200203

sub44348-37031

main44348-37191iBU213,223199908

sub44348-37192

44369BRACKET, OIL RESERVOIR, NO.1

main44369-36010iBU141;BU221..LHD;BU211..CBU;BU101,111..ARL,GEN;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3199505-200111

main44369-36010iBU211,221..RHD..40T..GEN..IV3199505

W(POWER STEERING)

main44369-36010iBU211,221..RHD..40T..GEN..IV3199505

VENEZUELA SPEC OR W(POWER STEERING)

main44369-36020iBU100,110,140,213,223199505

44379BRACKET, OIL RESERVOIR, NO.2

main44379-36090iBU221..LHD;BU211..CBU;BU102,212..TAIW;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU101,111,112,141,222..(DM1,T1,T3)..DSL..(GEN,TAIW)199505-200111

main44379-36090iBU211..LHD..30T..IV3199505

VENEZUELA SPEC OR W(POWER STEERING)

main44379-36090iBU211..LHD..30T..IV3199505

W(POWER STEERING)

main44379-37020iBU100,140199505-199908

main44379-37030iBU110199507-199905

main44379-37050iBU213,223199908

44386ASUPPORT, OIL RESERVOIR

main44386-36100iBU100,140199505-199908

main44386-37010iBU110199507-199905

44389BRACKET, OIL RESERVOIR, NO.3

main44389-36060iBU100,110,140199505-199908

main44389-37010iBU110199507-199905

44406BBOLT, UNION(FOR RETURN TUBE)

main90401-14003iBU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,14#,212,222..DM1,T1,T2,T3,TW1,TW2199505-199703

W(POWER STEERING)

main90401-14003iBU222,RZU100;BU142..ARL,EUR;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU10#,11#,140,141,212,221..(DM1,DM7,T1,T2,T3,TW1,TW2)..(175T,20T,25T,30T199703-200111

main90401-14003iBU211..LHD..30T..IV3199505

VENEZUELA SPEC OR W(POWER STEERING)

44406CGASKET(FOR RETURN TUBE)

main90430-14235iBU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,14#,212,222..DM1,T1,T2,T3,TW1,TW2199505-199703

W(POWER STEERING)

main90430-14235iBU222,RZU100;BU142..ARL,EUR;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU10#,11#,140,141,212,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,GEN)199703-200203

main90430-14235iBU211..LHD..30T..IV3199505

VENEZUELA SPEC OR W(POWER STEERING)

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-14003iBU141,212,222;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..(CBU,IV3);BU101,111,142,213,221,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN)199703-200203

main90401-14003iBU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,14#,212,222..DM1,T1,T2,T3,TW1,TW2199505-199703

W(POWER STEERING)

main90401-14003iBU211..LHD..30T..IV3199505

VENEZUELA SPEC OR W(POWER STEERING)

44410BGASKET(FOR PRESSURE FEED TUBE)

main90430-14235iBU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,14#,212,222..DM1,T1,T2,T3,TW1,TW2199505-199703

W(POWER STEERING)

main90430-14235iBU222,RZU100;BU142..ARL,EUR;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU10#,11#,140,141,212,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,GEN)199703-200203

main90430-14235iBU211..LHD..30T..IV3199505

VENEZUELA SPEC OR W(POWER STEERING)

44411HOSE, PRESSURE FEED

main44411-37020iBU212,22#..LHD;BU211..LHD..CBU;BU211..LHD..40T..IV3199505-199908

VENEZUELA SPEC OR W(POWER STEERING)

sub44411-37021

main44411-37021iBU211..LHD..30T..IV3199908

VENEZUELA SPEC OR W(POWER STEERING)

sub44411-37022

main44411-37030iBU142..ARL,EUR;BU10#,11#,140,141..(DM1,DM7,T1,T2,T3,T4,TW2)..(ARL,EUR,GEN,TAIW)199505-199908

sub44411-37031

main44411-37031iBU141;BU10#,111,142..(175T,20T,30T)..(ARL,GEN)199908-200203

sub44411-37032

main44411-37040iRZU100199703

main44411-37070iBU211,221..RHD..40T..GEN..IV3199505-199703

W(POWER STEERING)

sub44411-37071

main44411-37070iBU212,222..RHD;BU211,221..RHD..GEN..(CBU,IV3)199703-199908

sub44411-37071

main44411-37071iBU212,222..RHD;BU211..30T..SA;BU211,221..RHD..GEN..(CBU,IV3)199908

sub44411-37072

main44411-37171iBU213,223199908

sub44411-37172

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16027iBU221..LHD;BU211..CBU;BU142,212..EUR,TAIW;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,222..(DM1,T1,T2,T3,TW2)..DSL199505-199703

W(POWER STEERING)

main90401-16027iBU142,222..EUR;BU212..RHD..TD;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211,222..RHD..GEN..(CBU,IV3);BU100,101,110,111,140,141,221..(DM1,T1,T2,T3,TW2)..(ARL,GEN)199703-200203

main90401-16027iBU211..LHD..30T..IV3199505

VENEZUELA SPEC OR W(POWER STEERING)

main90401-16027iBU212..LHD..40T..TD199808

CHILE SPEC

main90404-16024iBU222..ARL,SA;BU212,222..LHD..TD..GEN;BU102,112,142,212,RZU100..(DSL,EFI)..(ARL,GEN,SA)199505

main90904-01001iBU213,223199908

44411DGASKET(FOR PRESSURE FEED HOSE)

main44327-30030iBU141,211,212,222..CBU,IV3;BU10#,111,142,213,221,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN)200203

main90430-16168iBU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,14#,212,222..DM1,T1,T2,T3,TW1,TW2199505-199703

W(POWER STEERING)

main90430-16168iBU222,RZU100;BU142..ARL,EUR;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU10#,11#,140,141,212,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,GEN)199703-200203

main90430-16168iBU211..LHD..30T..IV3199505-200203

VENEZUELA SPEC OR W(POWER STEERING)

44413TUBE, PRESSURE FEED, NO.1

main44413-37010iBU101..RHD..(ARL,GEN);BU100,111,14#,RZU100..RHD..(DSL,EFI)199505-199905

main44413-37030iBU142..EUR199605

main44413-37050iBU101,111,141..LHD199505-200111

main44413-37140iRZU100..15T199908

main44413-37170iBU102,142..RHD..GEN200203

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-37010iBU212,222..RHD;BU211..30T..SA;BU211,221..RHD..GEN..(CBU,IV3)199703-199905

main44416-37010iBU212..ARL;BU211..RHD..CBU;BU211..RHD..30T..GEN..IV3199505-199703

W(POWER STEERING)

main44416-37020iBU211..LHD..CBU;BU212,221,222..LHD;BU211..LHD..40T..IV3199505

VENEZUELA SPEC OR W(POWER STEERING)

main44416-37040iBU10#,111,112,140,141..LHD..(DM1,DM7,T2,T3,T4,TW2)199505-200111

main44416-37110iBU100,101,110,111,14#,RZU100..RHD..(ARL,GEN)199505-199905

main44416-37160iBU142..EUR199605-200110

main44416-37340iRZU100..15T199908

main44416-37350iBU213,223199908

main44416-37400iBU102,142..RHD..GEN200203

44416CHOSE(FOR RETURN TUBE TO RESERVIOR)

main90445-18132iBU211,221..RHD..40T..GEN..IV3199505-199703

W(POWER STEERING)

main90445-18132iBU222;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU100,101,110,111,140,141,212,221..(DM1,T1,T2,T3,TW1,TW2)..(ARL,GEN)199703-200111

main90445-18132iBU211..LHD..30T..IV3199505

VENEZUELA SPEC OR W(POWER STEERING)

main90445-18144iBU102,112,142..DSL..(ARL,GEN)199505

main90445-18146iBU213,223199908

main90447-18028iRZU100199703

main90447-18038iBU142..EUR199605-200110

44417TUBE, RETURN, NO.2

main44417-37030iBU141;BU101,111..ARL,GEN199505-200111

main44417-37040iBU102,112,142..DSL..(ARL,GEN)199505

44417DHOSE(FOR RETURN TUBE TO RESERVOIR)

main44412-37020iBU102,112,142..ARL,GEN199505-199707

sub44412-37060

main44412-37050iBU141;BU101,111..(DM1,T1,T2,T3,TW2)..(ARL,GEN)199611-200111

main44412-37060iBU102,112,142..DSL199707

main90445-18132iBU101,102,111,112,141..DM1,T1,T2,T3199505-199611

main90445-18133iBU110199507-199905

main90445-18139iBU100,140199505-199908

44423TUBE, OIL PUMP TO GEAR BOX

main44423-37040iBU10#,11#,14#..DM1,T1,T2,T3,TW2199505-199512

sub44423-37041

main44423-37041iBU142..ARL,EUR;BU10#,11#,140,141..(DM1,DM7,T1,T2,T3,T4,TW2)..(ARL,EUR,GEN,TAIW)199512-200203

44447ABRACKET, HOSE SUPPORT, NO.1

main44447-37030iBU142..ARL,EUR;BU10#,11#,140,141..(DM1,DM7,T1,T2,T3,T4,TW2)..(ARL,EUR,GEN,TAIW)199505-200203

44457CBRACKET, POWER STEERING TUBE SUPPORT, NO.1

main44457-36040iBU222;BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)199505-200111

main44457-36040iBU211,221..RHD..40T..GEN..IV3199505

W/O IDLE UP

main44457-36040iBU211,221..RHD..40T..GEN..IV3199505

W/O IDLE UP OR VENEZUELA SPEC

4502

9011908A46

main90119-08A46

9046110633

main90461-10633

9046716008

main90467-16008

9046721005

main90467-21005

9161160630

main91611-60630

9165160616

main91651-60616

9165160620

main91651-60620

9165160816

main91651-60816

9165160820

main91651-60820

9165161022

main91651-61022

9699114080

main96991-14080

32 parts on this diagram · 12 diagrams in section
