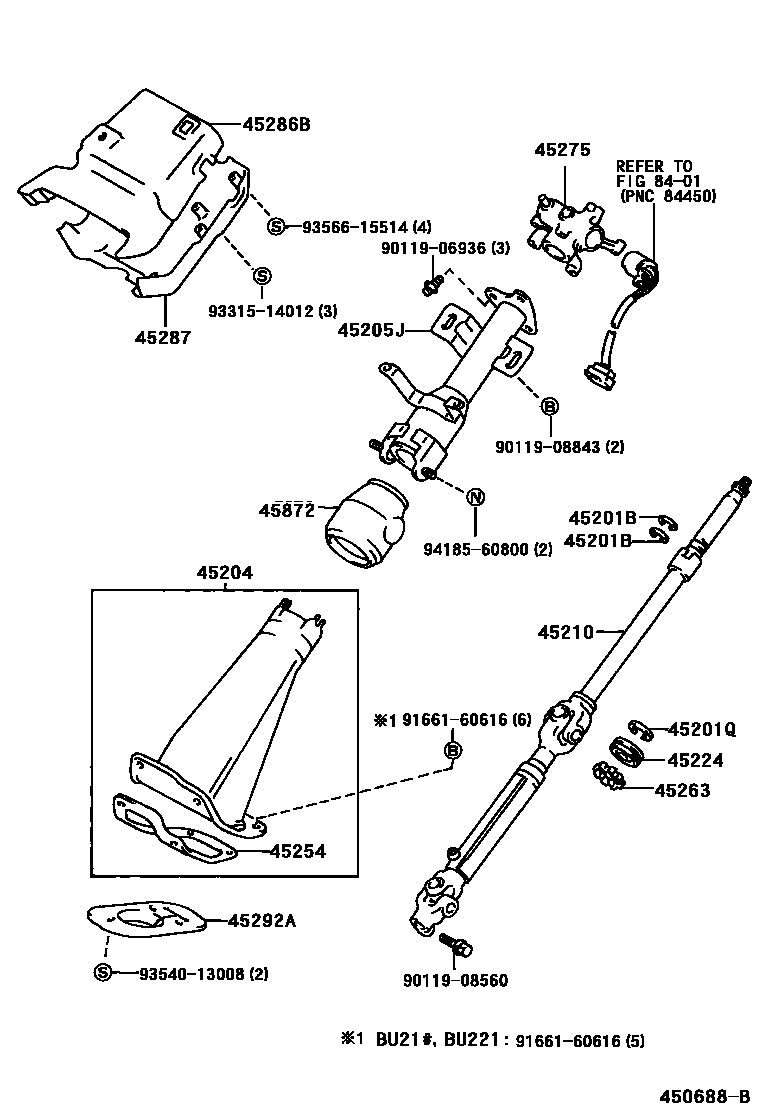

STEERING COLUMN & SHAFT

0001 1 0002 1TILT STEERING

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17269iBU10#,111,14#,21#,22#,RZU100,YU210199505-200201

T=1.20

45201QRING(FOR STEERING COLUMN RING)

main96152-00300iBU10#,111,14#,21#,22#,RZU100,YU210199505-200201

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-37020iBU211,221..RHD..GEN199505

main45204-37030iBU212..RHD;BU211,222,YU210..ARL,SA199505-200201

main45204-37030iBU211,221..RHD..GEN..(CBU,IV3)199505

W(TILT & TELESCOPIC STEERING)

main45204-37040iBU211,221..LHD;BU212..LHD..40T..TD199505

W(TILT & TELESCOPIC STEERING)

main45204-37050iBU211,221..LHD;BU212..LHD..40T..TD199505

main45204-37070iBU101,102,111,14#..RHD..(GEN,SA)199505

main45204-37080iBU100,101,111,14#..LHD..GEN199505

main45204-37090iBU101,111,140,141..RHD..GEN199505

W(TILT & TELESCOPIC STEERING)

main45204-37100iRZU100..15T199908

main45204-37100iBU142..EUR;BU10#,111,112,140,141..LHD..(DM1,DM7,T2,T3,T4,TW2)199505

W(TILT & TELESCOPIC STEERING)

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-37030iBU101..ARL;RZU100..15T;BU212,213,222,223..(DSL,TDEFI)..(GEN,SA)..IV3199908

main45205-37030iBU222..TD..SA;BU211,221..CBU,IV3;BU142,YU210..ARL,EUR,SA;BU212,222..ARL,EUR,GEN,TAIW;BU101,RZU100..(175T,20T,30T)..GEN;BU100,102,11#,140,141..(DM1,DM7,T2,T3,T4,TW2)199505-200201

W(TILT & TELESCOPIC STEERING)

main45205-37040iBU102..TD;BU211,221..GEN;BU212..LHD..40T..TD;BU100,101,111,14#..GEN,SA199505

45210SHAFT ASSY, STEERING MAIN

main45210-36050iBU21#,22#,YU210199505-200201

main45210-36060iBU10#,11#,14#,RZU100199505

45224BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)

main45225-26010iBU10#,111,14#,21#,22#,RZU100,YU210199505-200201

L=16

45254SHIELD, STEERING COLUMN HOLE

main45254-36070iBU211,212,221,222,YU210..RHD199505-200201

main45254-36080iBU21#,22#..LHD199505

main45254-36090iBU10#,110,111,14#,RZU100..RHD199505

main45254-36100iBU10#,111,112,14#,RZU100..LHD199505

45263RING, STEERING COLUMN, NO.1

main45263-32010iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200201

45275BRACKET, STEERING COLUMN, UPPER

main45307-36210iBU10#,111,14#,211,212,221,222,YU210199505-200201

main45307-36230iBU213,223,RZU100199703

45286BCOVER, STEERING COLUMN, UPR

main45286-37030-B0iBU211,221..RHD..GEN;BU101,102,111,14#..RHD..(GEN,SA)199505

BLUISH GRAY,TRIM1#

sub45286-37040

main45286-37040-B0iBU101,111,140,141,211,221..RHD..GEN..(CBU,IV3)199505-200212

W(TILT & TELESCOPIC STEERING),BLUISH GRAY,TRIM1#

sub45286-37040

main45286-37040-B0iBU211,221,YU210..SA;BU212,222,RZU100..RHD;BU100,101,110,142..ARL199505

BLUISH GRAY,TRIM1#

sub45286-37040

main45286-37050-B0iBU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..GEN199505

BLUISH GRAY,TRIM1#

sub45286-37060

main45286-37060-B0iBU213,223,RZU100..LHD199908-200308

BLUISH GRAY,TRIM1#

main45286-37060-B0iBU142..EUR;BU10#,111,112,140,141,211,212,221,222..LHD..(DM1,DM7,T2,T3,T4,TW1,TW2)199505-200312

W(TILT & TELESCOPIC STEERING),BLUISH GRAY,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-37030-B0iBU101,111,140,141,211,221..RHD..GEN..(CBU,IV3)199505-200212

W(TILT & TELESCOPIC STEERING),BLUISH GRAY,TRIM1#

main45287-37030-B0iBU211,221,YU210..SA;BU212,222,RZU100..RHD;BU100,101,110,142..ARL199505

BLUISH GRAY,TRIM1#

main45287-37040-B0iBU211,221..RHD..GEN;BU101,102,111,14#..RHD..(GEN,SA)199505

BLUISH GRAY,TRIM1#

sub45287-37030

main45287-37050-B0iBU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..GEN199505

BLUISH GRAY,TRIM1#

sub45287-37060

main45287-37060-B0iBU142..EUR;BU10#,111,112,140,141,211,212,221,222..LHD..(DM1,DM7,T2,T3,T4,TW1,TW2)199505-200312

W(TILT & TELESCOPIC STEERING),BLUISH GRAY,TRIM1#

main45287-37060-B0iBU213,223,RZU100..LHD199908-200308

BLUISH GRAY,TRIM1#

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-36030iBU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD199505-200201

main45292-36040iBU10#,111,112,14#,21#,22#,RZU100..LHD199505

45872COVER, STEERING COLUMN TUBE

main45872-36020iBU222..TD..SA;BU211,221..CBU,IV3;BU142,YU210..ARL,EUR,SA;BU212,222..ARL,EUR,GEN,TAIW;BU101,RZU100..(175T,20T,30T)..GEN;BU100,102,11#,140,141..(DM1,DM7,T2,T3,T4,TW2)199505-200201

W(TILT & TELESCOPIC STEERING)

main45872-36020iBU101..ARL;RZU100..15T;BU212,213,222,223..(DSL,TDEFI)..(GEN,SA)..IV3199908

main45872-36030iBU102..TD;BU211,221..GEN;BU212..LHD..40T..TD;BU100,101,111,14#..GEN,SA199505

8401

9011906936

main90119-06936

9011908560

main90119-08560

9011908843

main90119-08843

9166160616

main91661-60616

9331514012

main93315-14012

9354013008

main93540-13008

9356615514

main93566-15514

9418560800

main94185-60800

22 parts on this diagram · 2 diagrams in section
