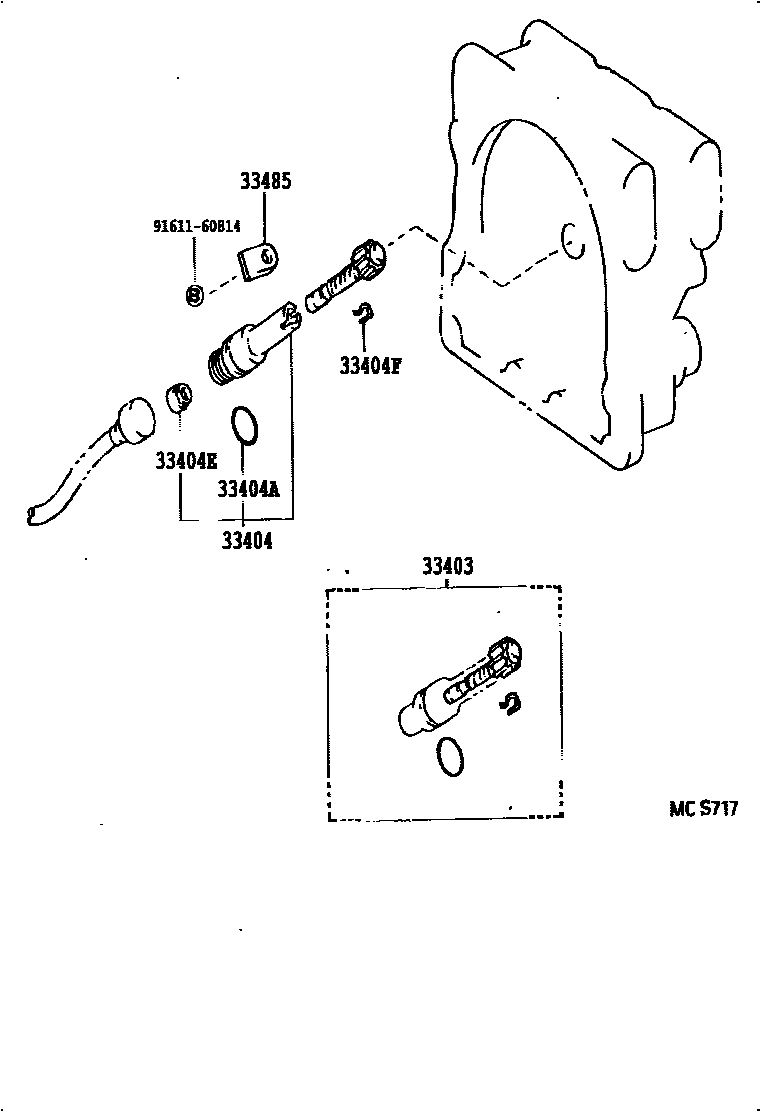

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1M150,M153,M155 0002 1H250

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-39205iBU101..ST..GEN200108

N=20,MARK 20:6

main33482-39215iBU101..T1;BU101..20T..GEN..TB199505

N=21,MARK 21:6,W(700-16 TIRE)

main33482-39225iBU100..ST..GEN199505-199905

N=22,MARK 22:6,W(700-16 TIRE)

main33482-39235iBU141..25T;BU101,102..30T;BU100,212..(20T,30T)..ARL199505-199511

N=23,MARK 23:6

main33482-39245iBU212..30T..GEN..IV3;BU212,222..LHD..40T..TD..GEN;BU212,222..40T..DSL..(ARL,GEN);BU100,111,112,141,142,211..(DM6,DM7,T3,TW1)..WT..(20T,30T)..GEN199808

N=24,MARK 24:6

main33482-39255iBU141,211..30T..GEN199505

N=25,MARK 25:6,*AXC=B08A

main33482-39265iBU211,221..40T..GEN..(CBU,IV3)199505

N=22,MARK 22:5,W(700R16 TIRE)

main33482-39275iYU210199505

N=23,MARK 23:5

main33482-39465iBU213,223199908

N=24,MARK 24:6

main33482-39525iBU102..ST..15T199712-199908

N=22,MARK 22:7

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-36020iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200108

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200108

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200108

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200108

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200108

9161160814

main91611-60814

7 parts on this diagram · 2 diagrams in section
